System Diagram
System Diagram
PE15.00-P-2101DAD Starter,
Alternator
, Battery
ENGINE 156 in MODEL 212.077 /277

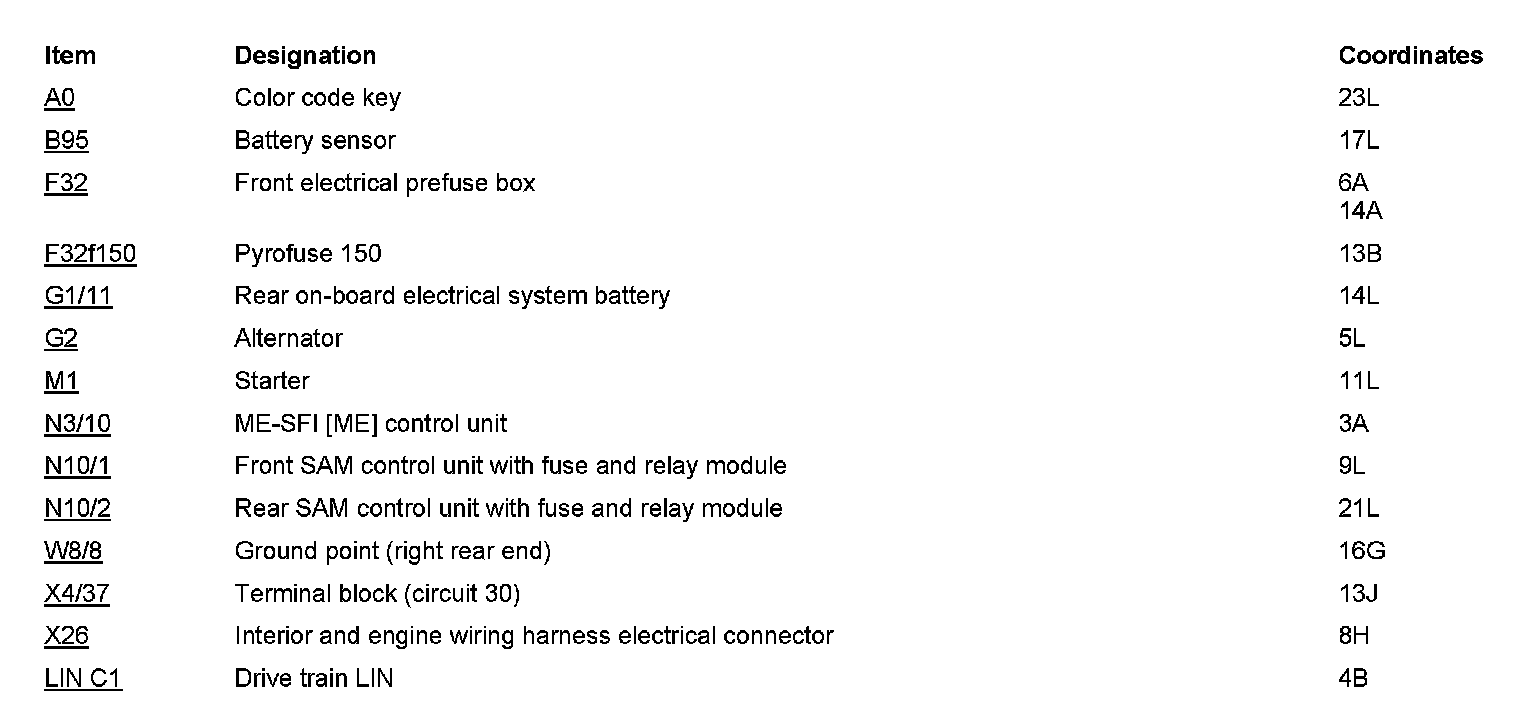

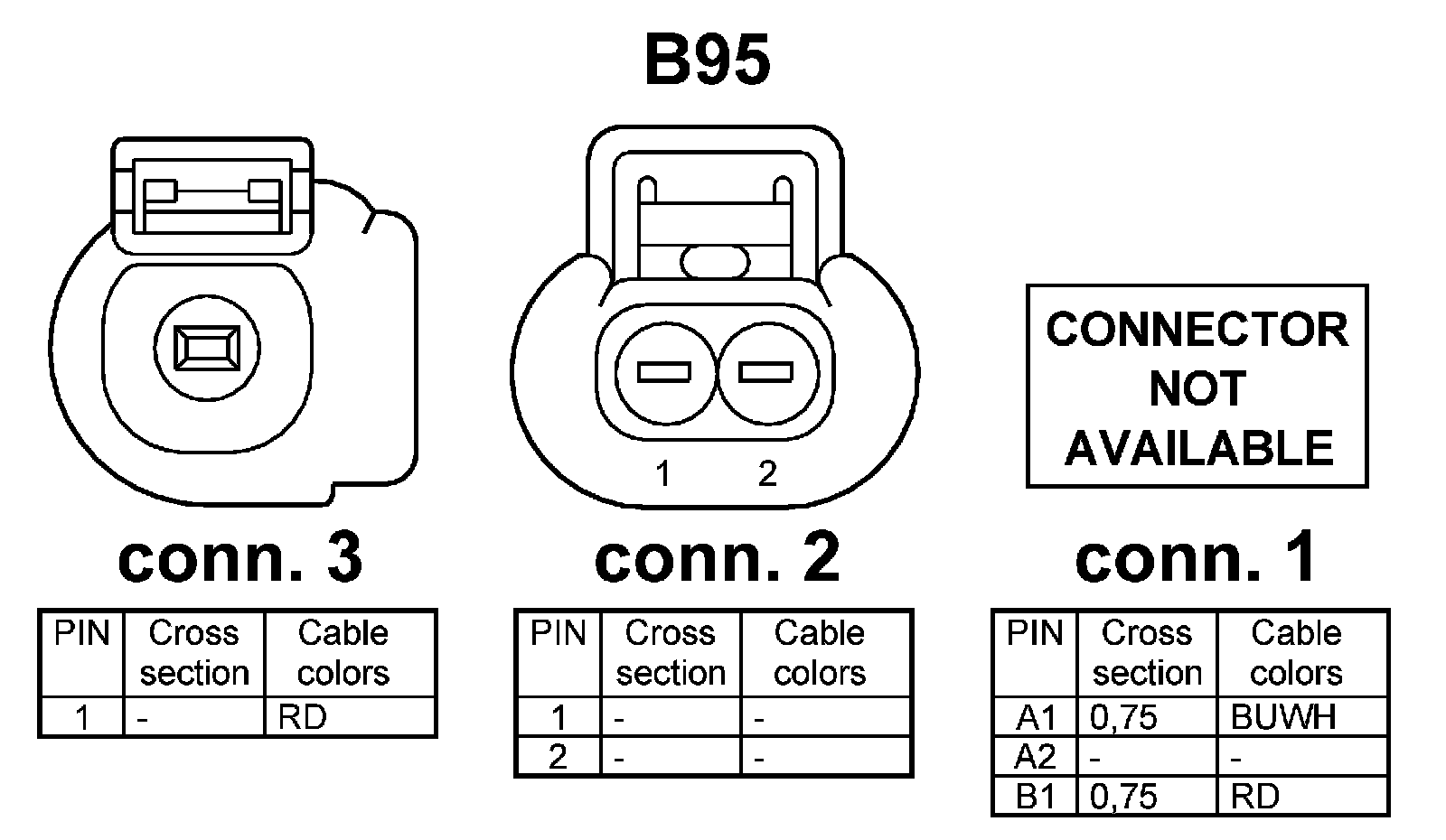

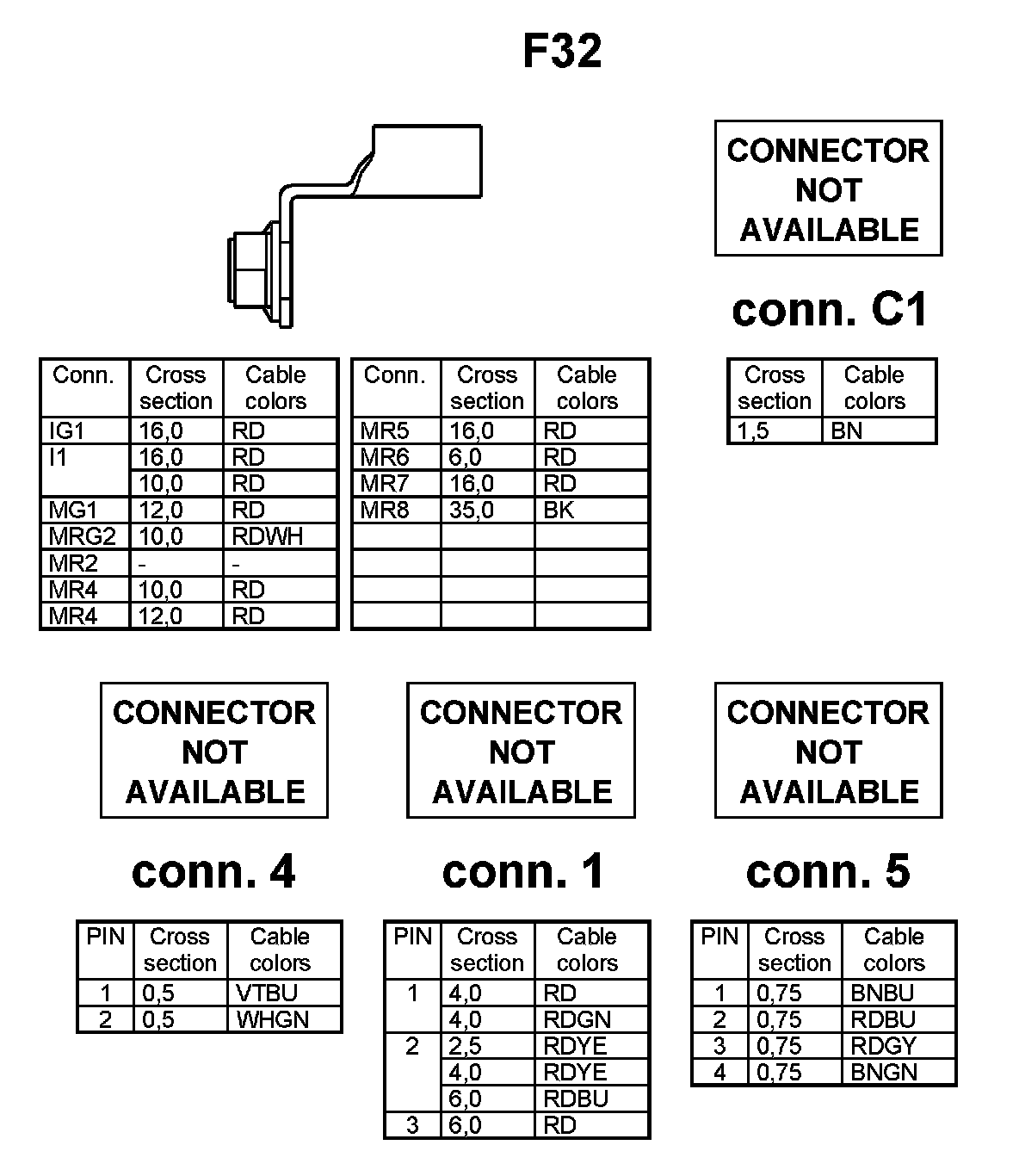

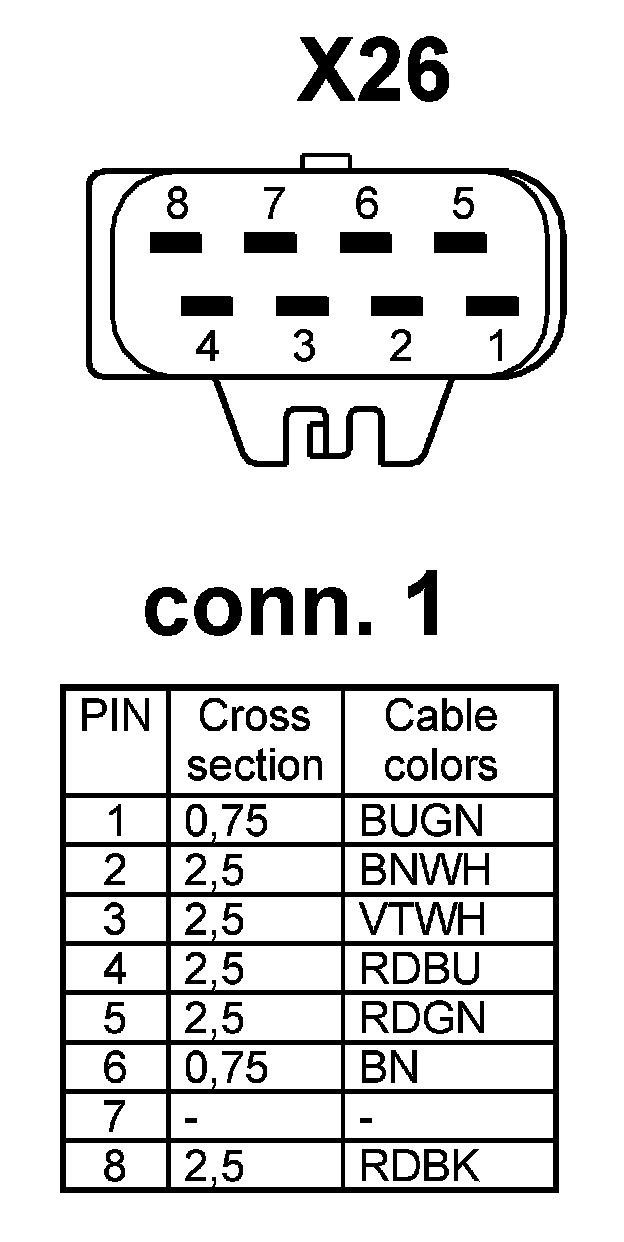

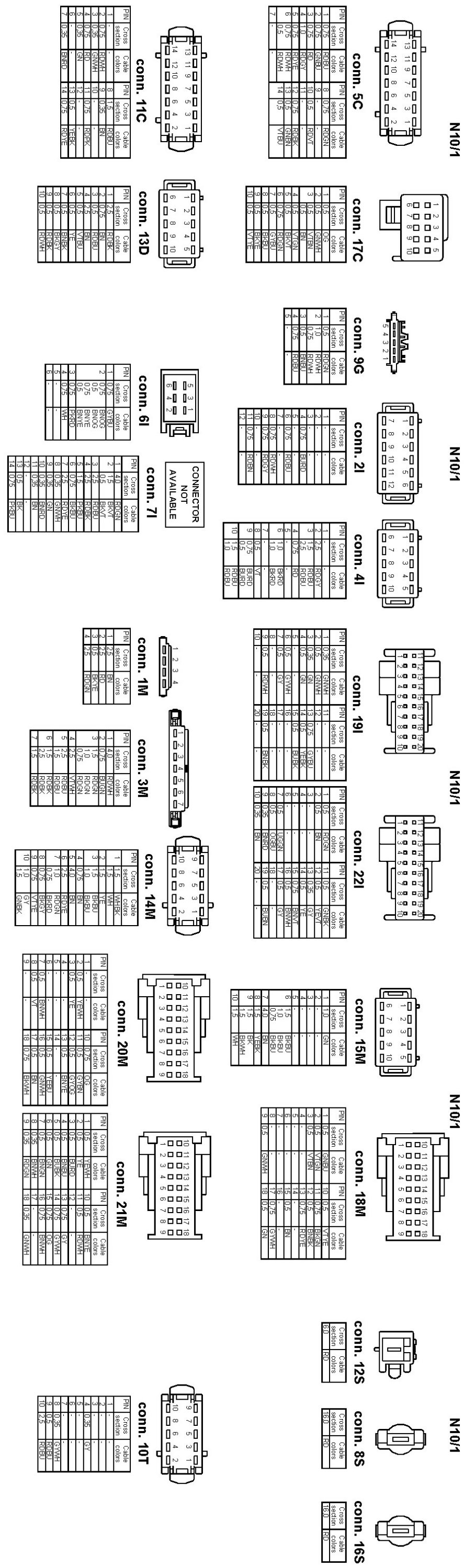

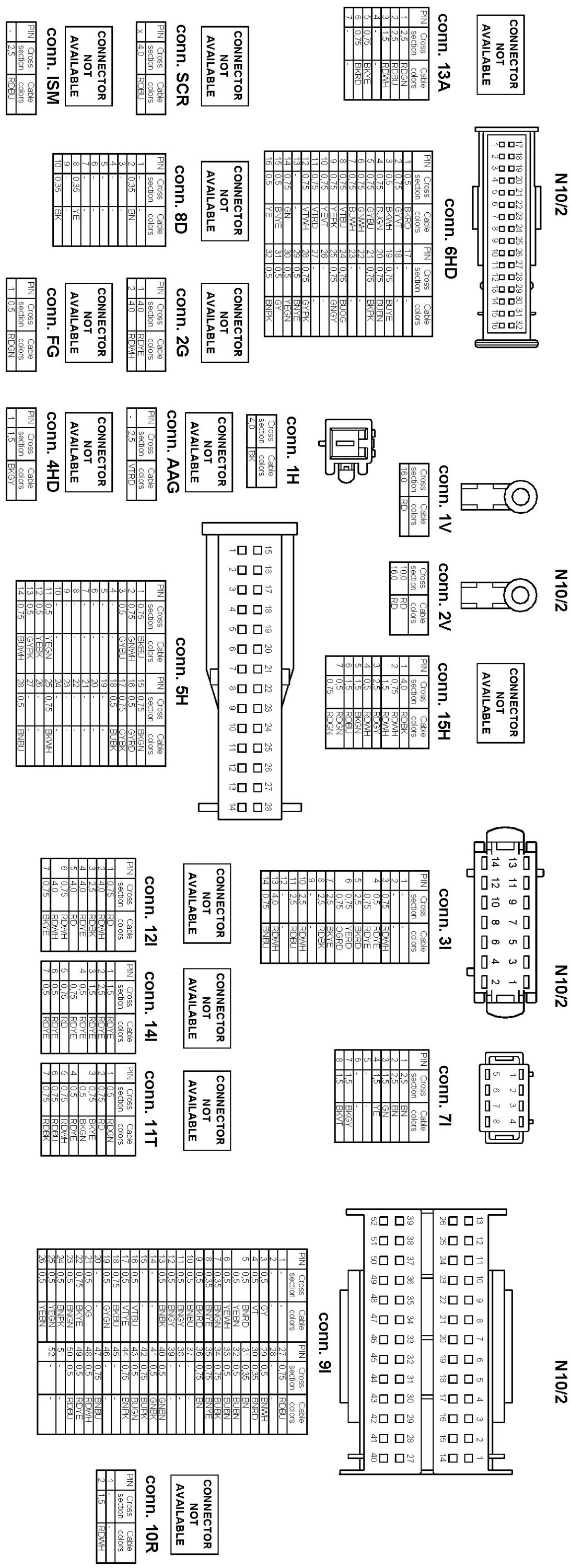

Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Locations
