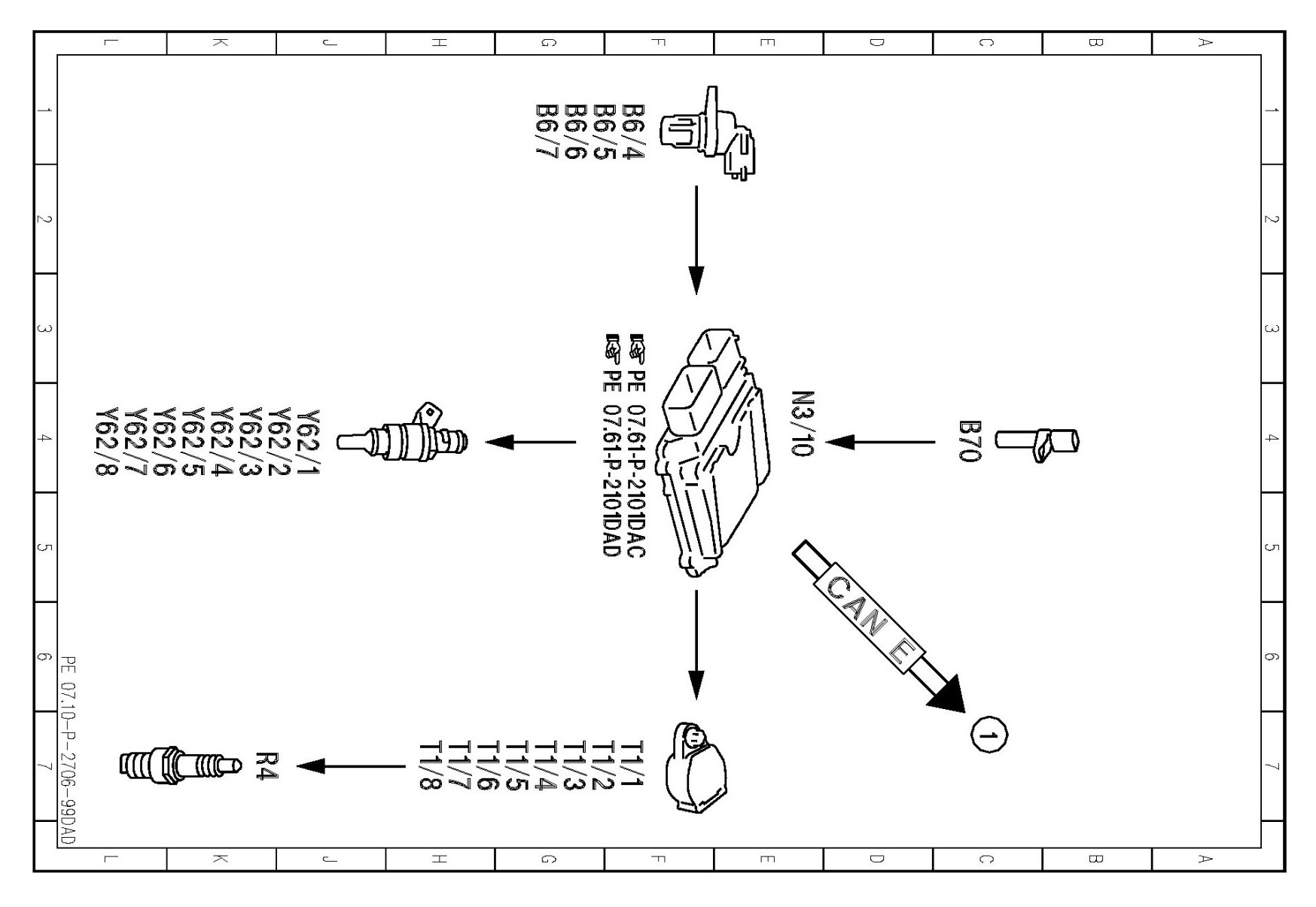

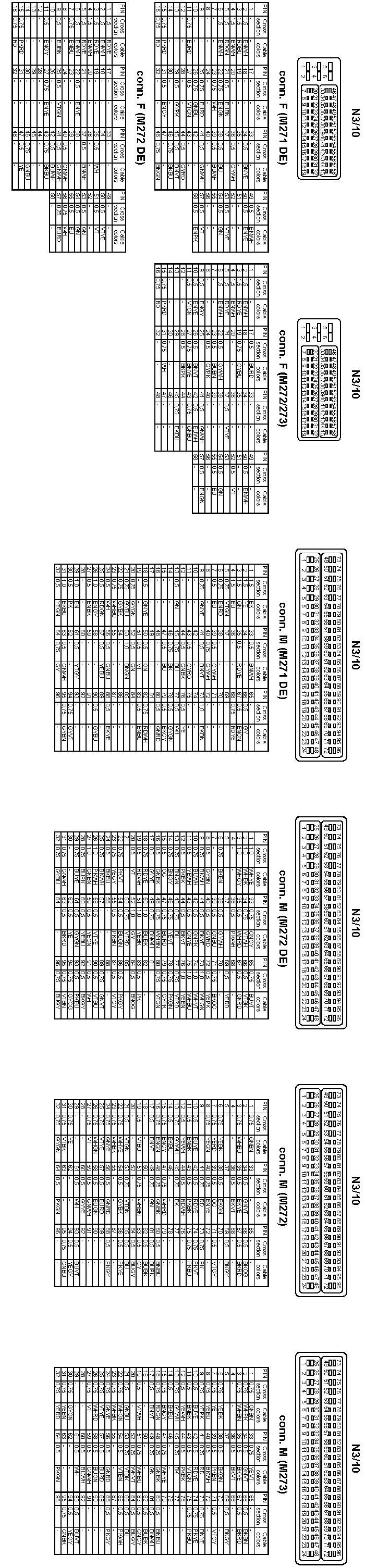

PE07.10-P-2706DAD Electrical Function Schematic, Synchronization Of The Injection And Firing Order

PE07.10-P-2706DAD Electrical Function Schematic, Synchronization Of The Injection And Firing Order

ENGINE 156 in MODEL 212

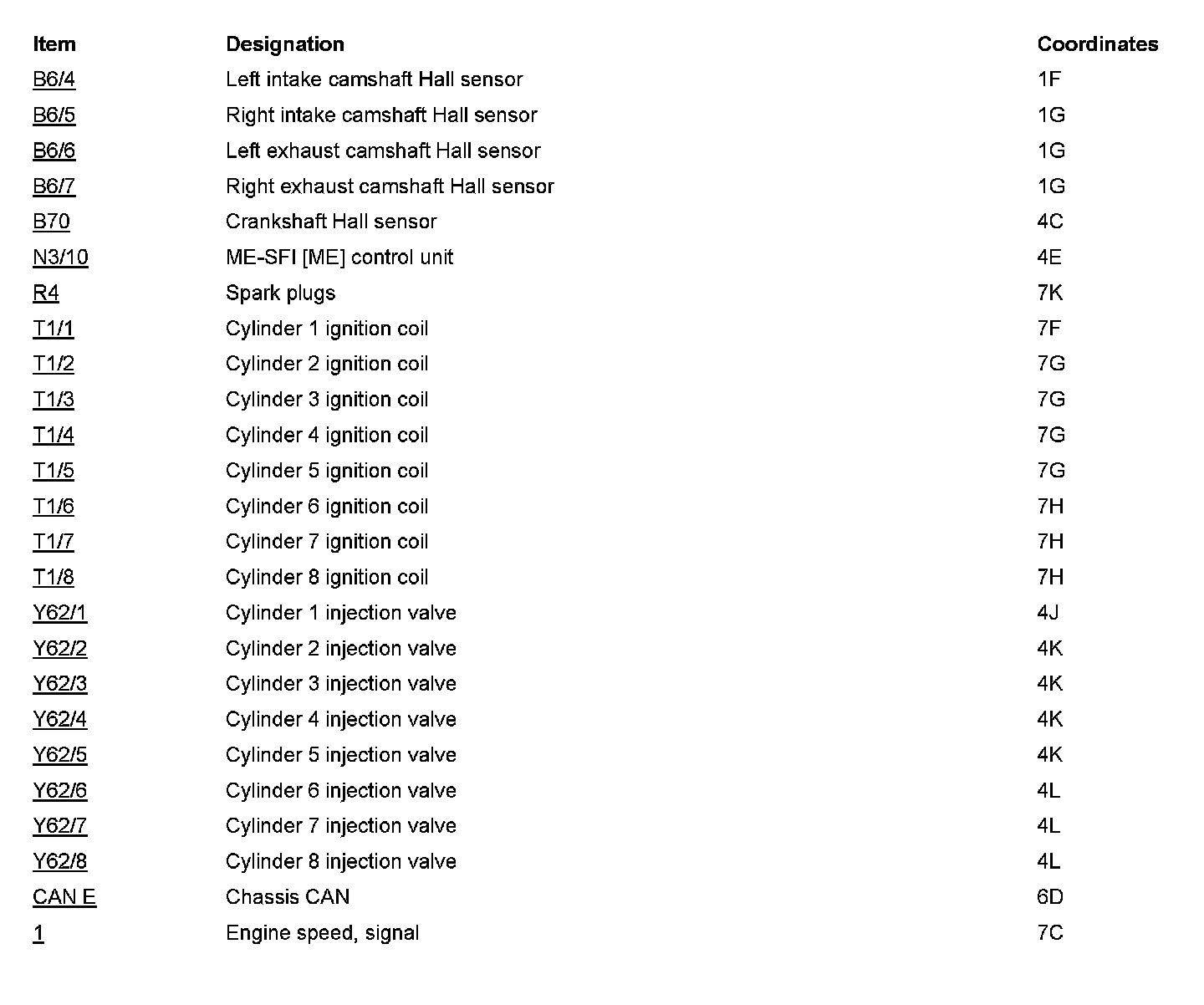

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
