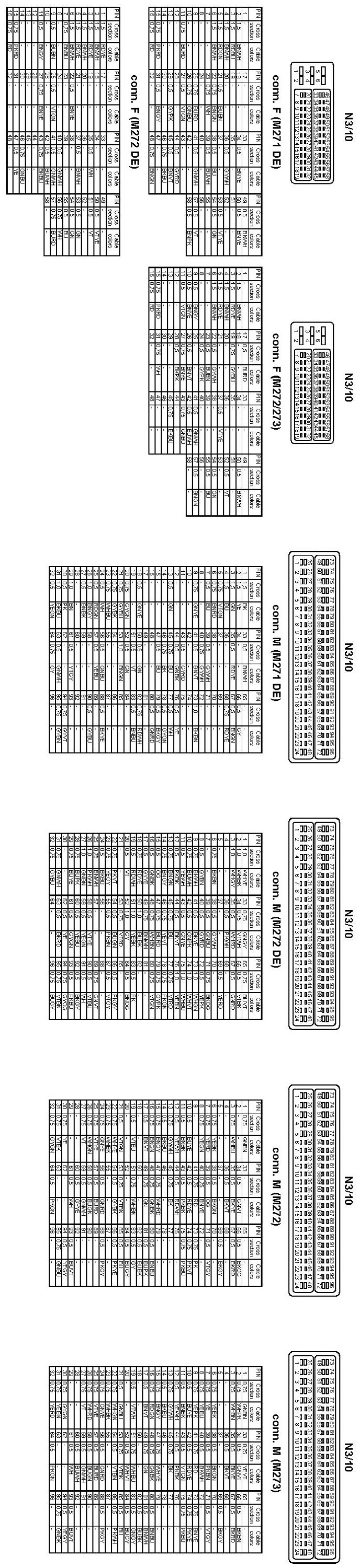

PE14.00-P-2051DAD Electrical Function Schematic For Exhaust Treatment

PE14.00-P-2051DAD Electrical Function Schematic For Exhaust Treatment
ENGINE 156 in MODEL 212










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
