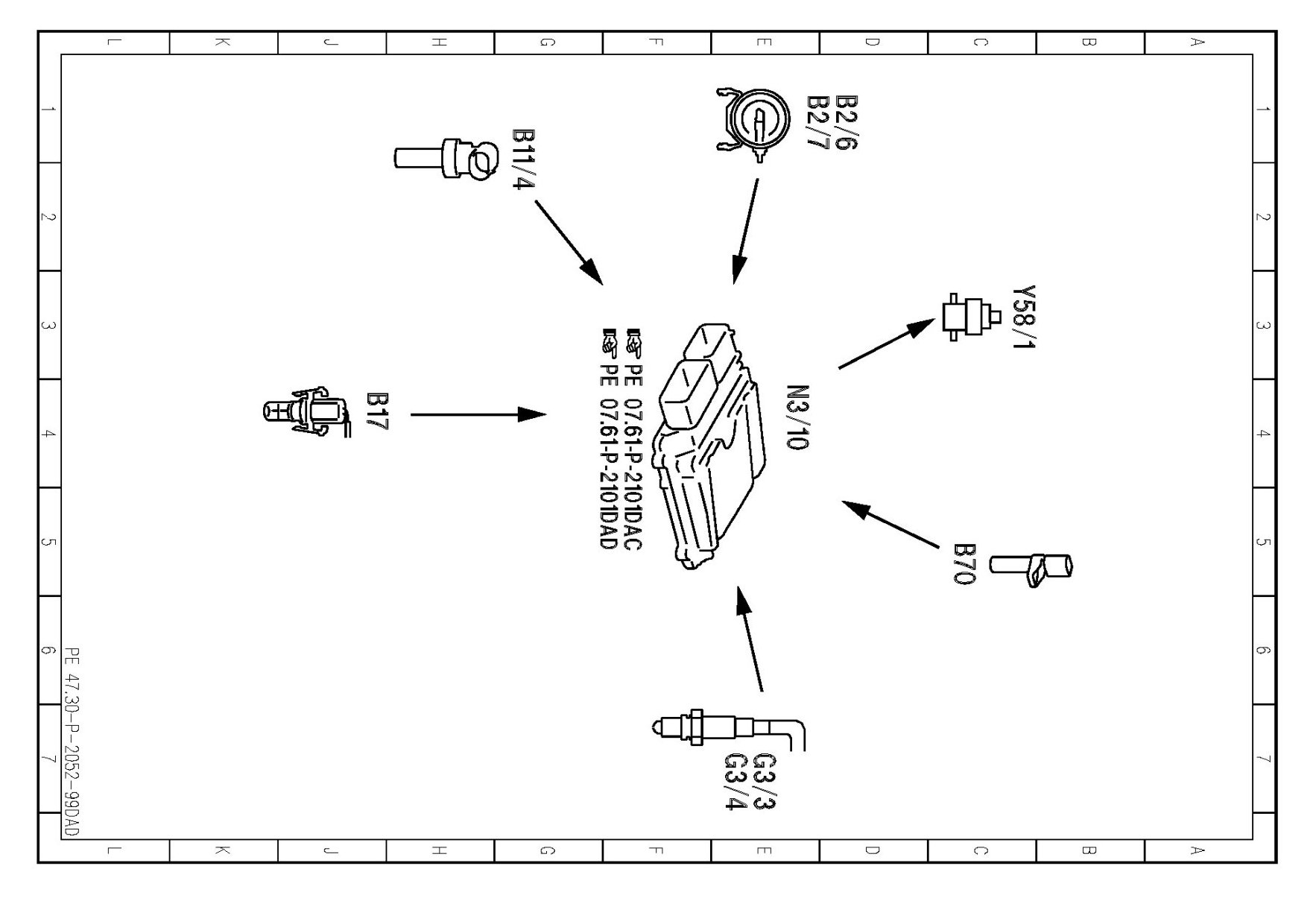

PE47.30-P-2052DAD Electrical Function Diagram For Purging Function

PE47.30-P-2052DAD Electrical Function Diagram For Purging Function
MODEL 212 with ENGINE 156

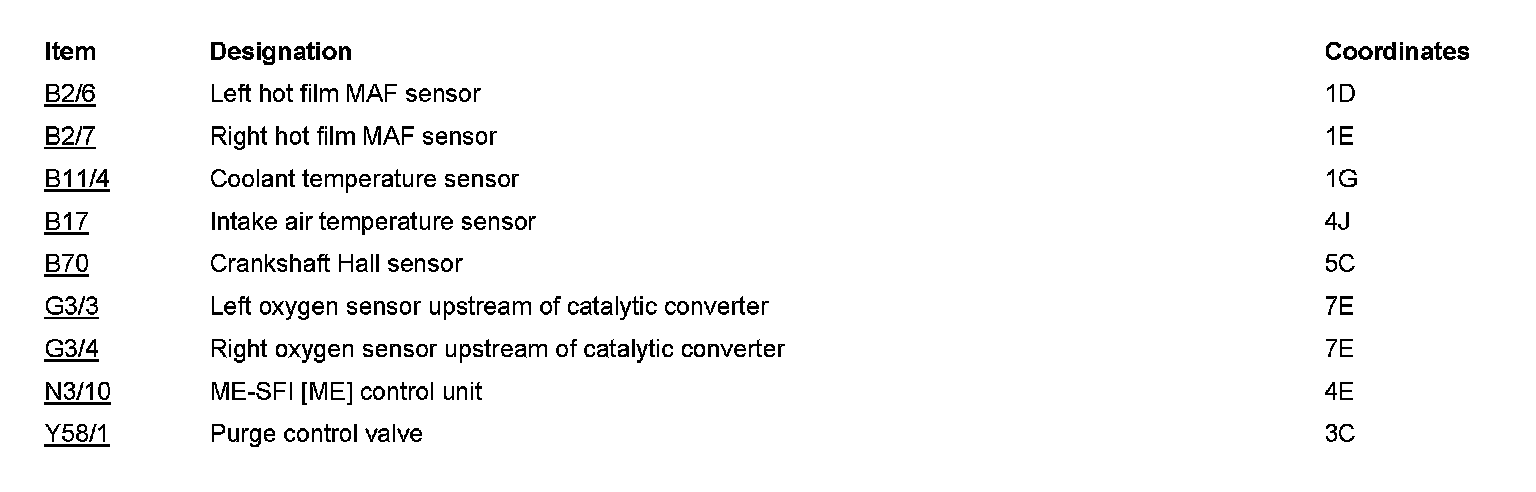

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
