Central Control Module: Service and Repair
AR54.21-P-0817SX Central Gateway Control Unit (ZGW), Remove And Install
Component Identification:

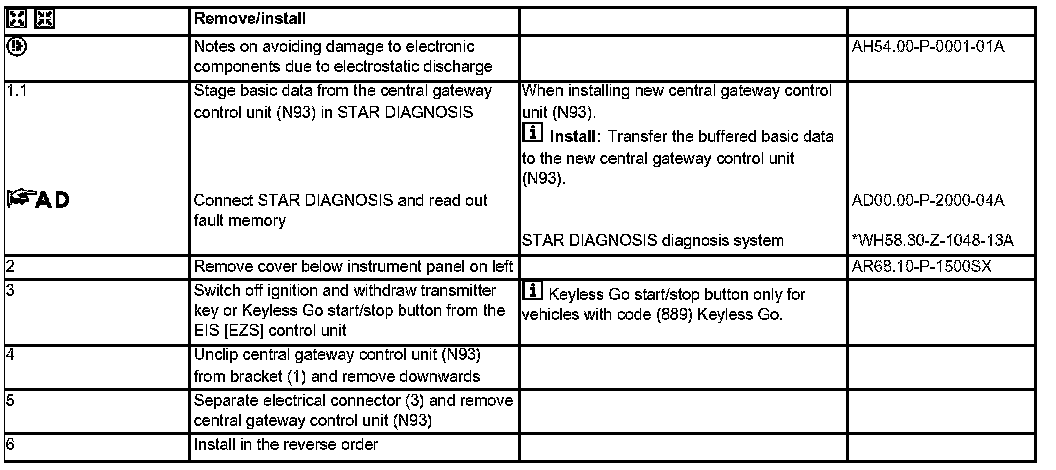

Steps 1.1 - 6:
Commercially Available Tools:
