Air Duct: Service and Repair
AP83.10-P-8339M Clean Water Drain In Air/Water Duct

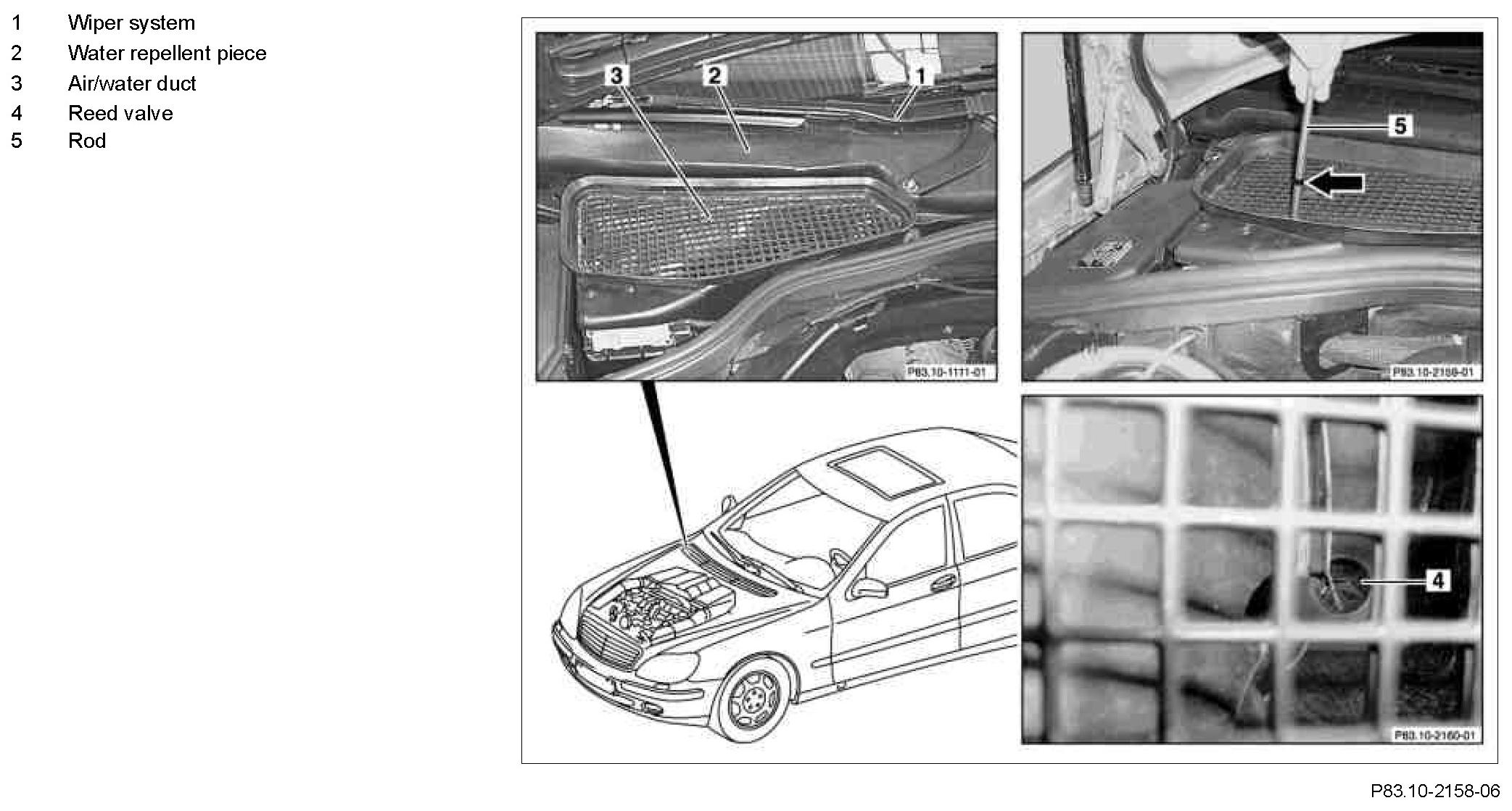

Component Identification:

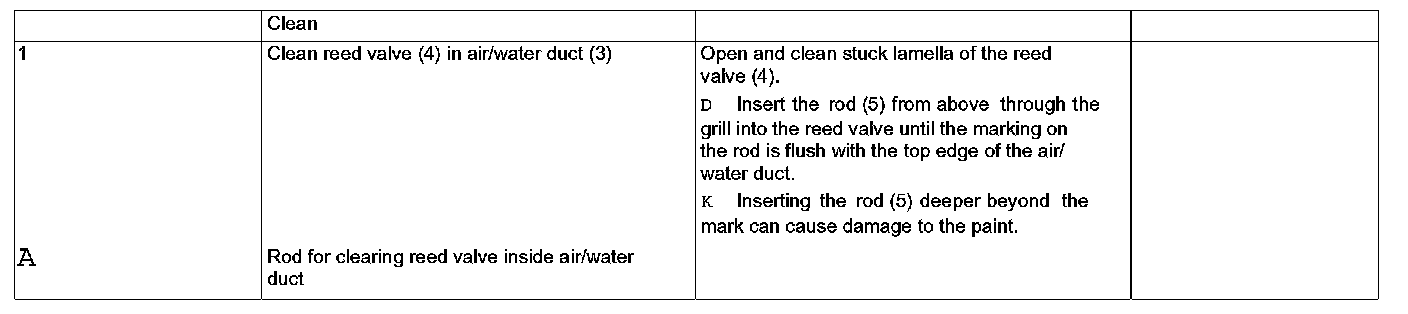

Steps 1:
