Heater Core: Service and Repair
AR83.25-P-1100SX Remove And Install Heat Exchanger

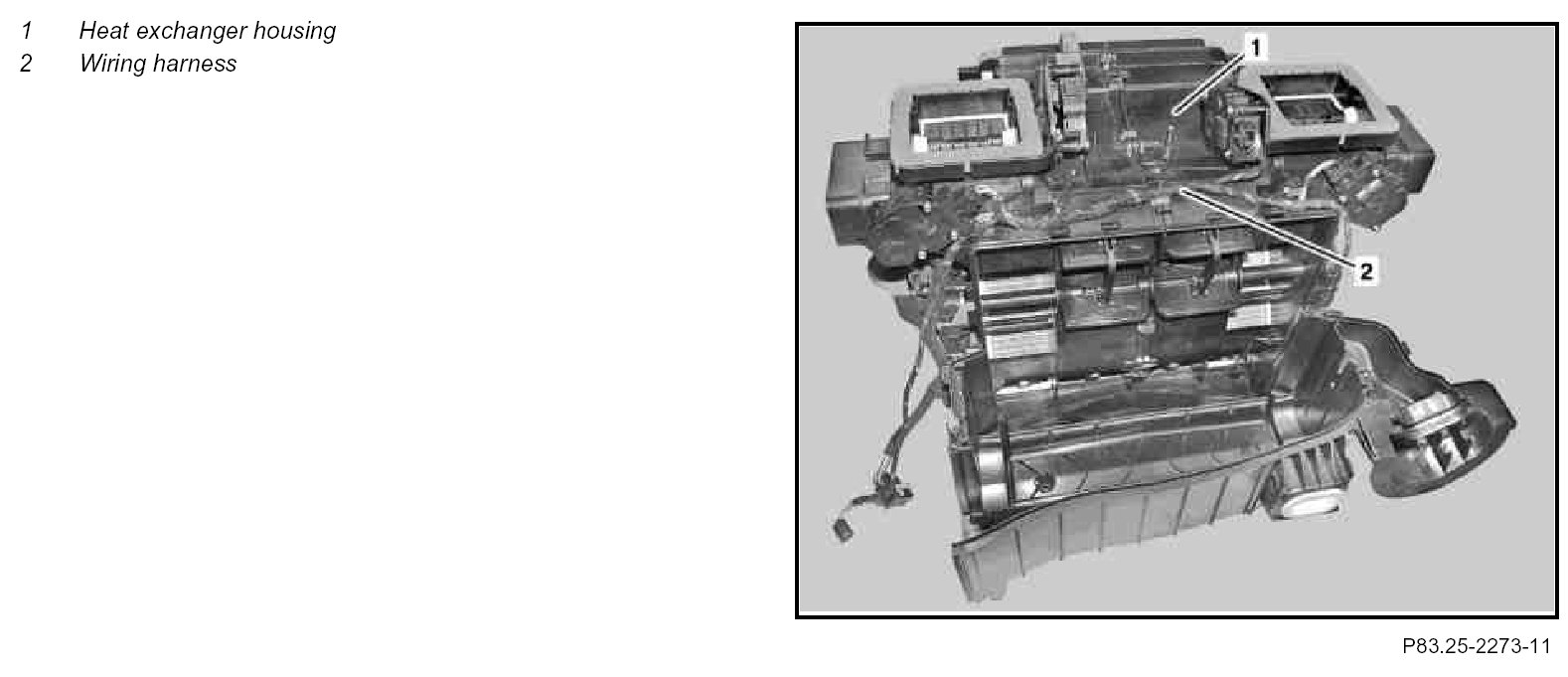

Component Identification:

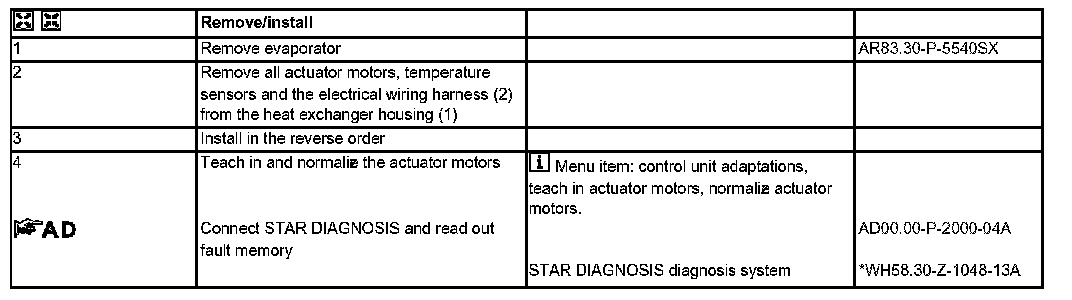

Steps 1 - 4:
Commercially Available Tools:
