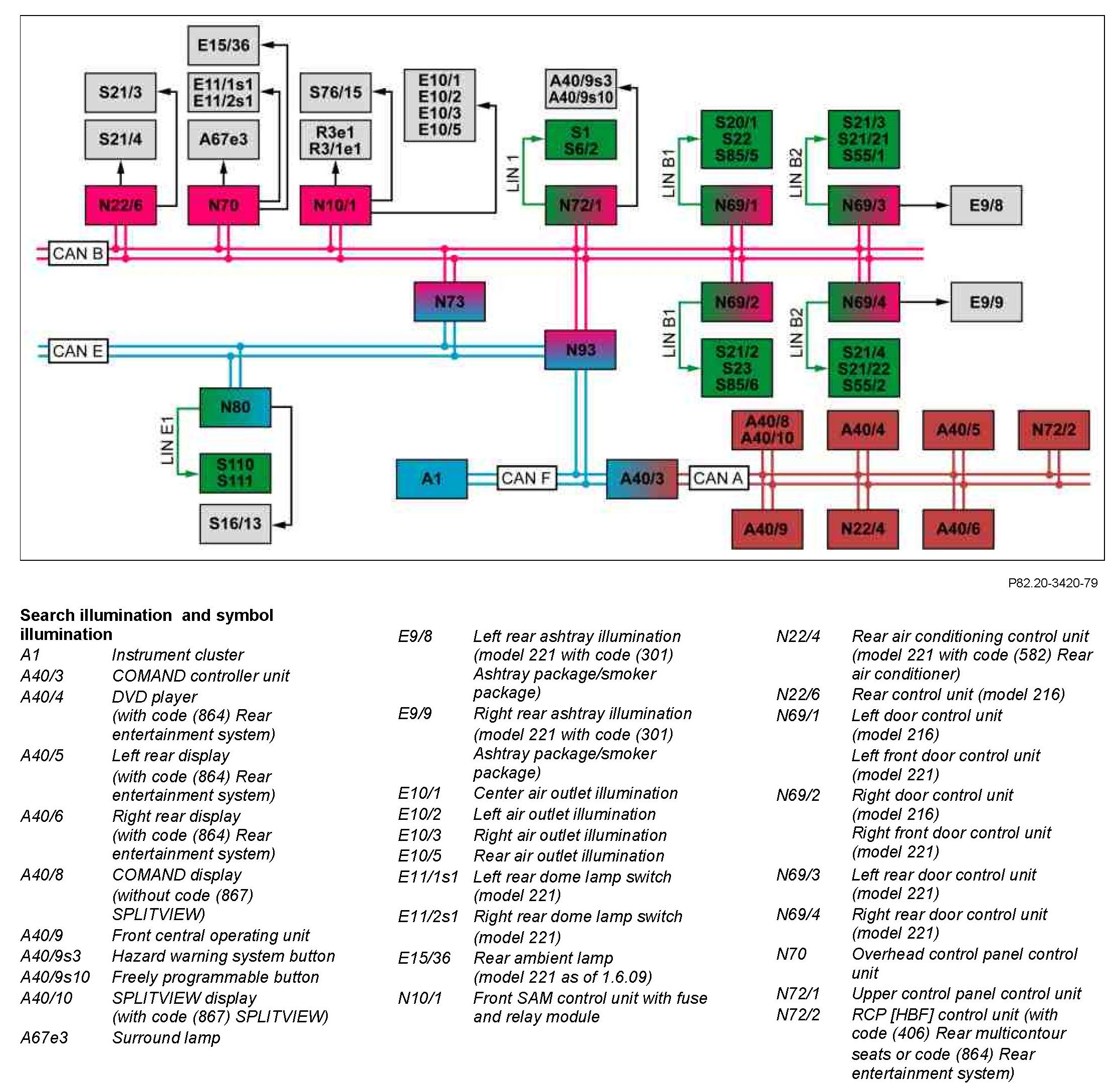

GF82.20-P-0002-04LE Block Diagram For Interior Illumination (IBL)



GF82.20-P-0002-04LE Block Diagram For Interior Illumination (IBL)

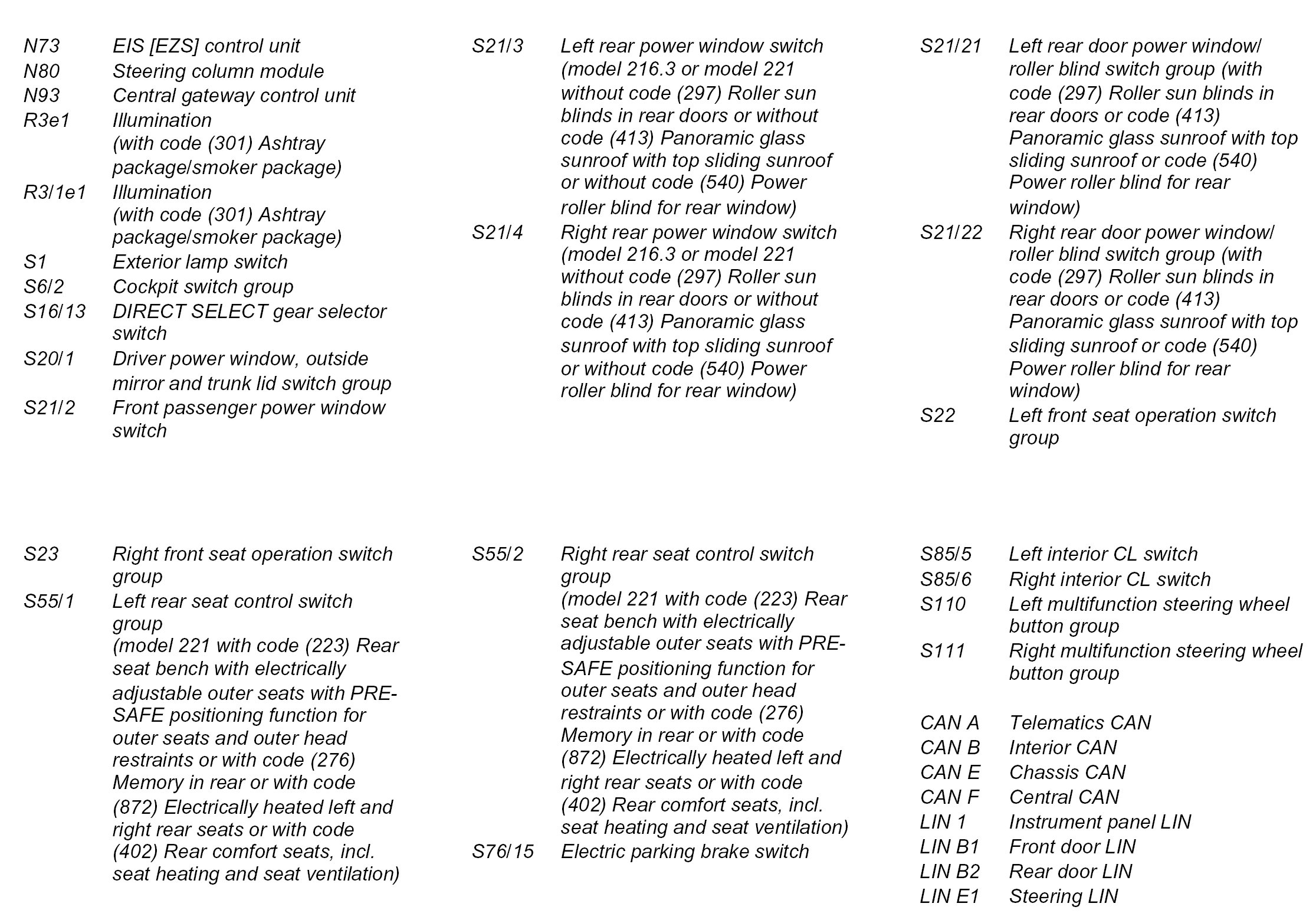

Component Identification:

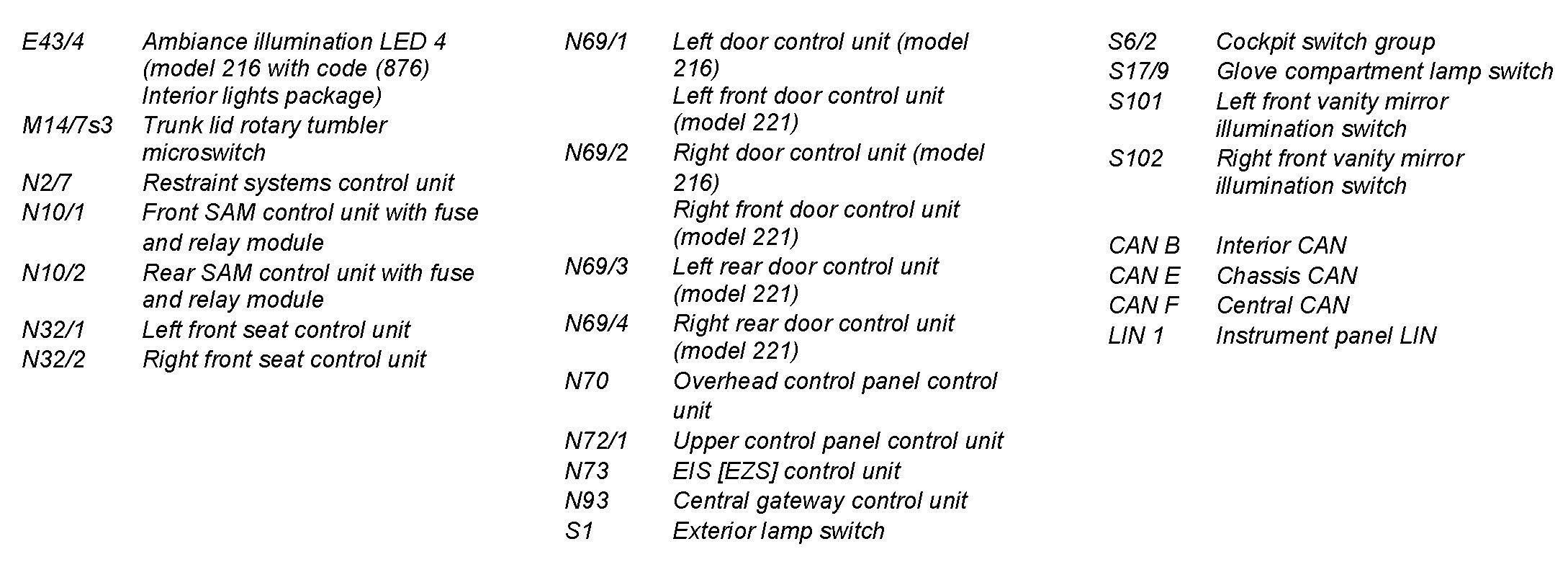

Component Identification:

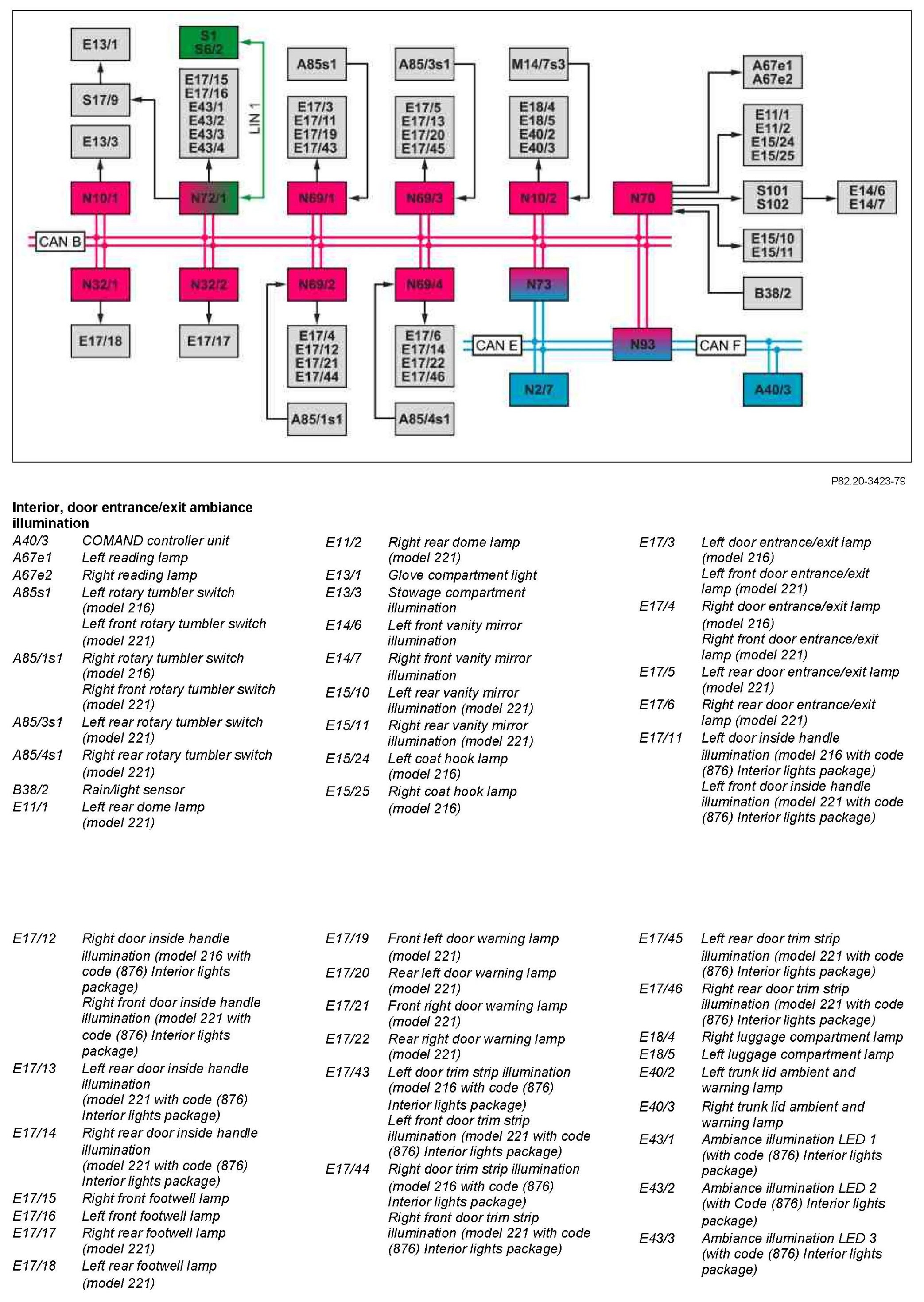

Component Identification:




Component Identification:
