License Plate Lamp: Service and Repair
AR82.10-P-5161SX Remove/Install
License Plate Lamps

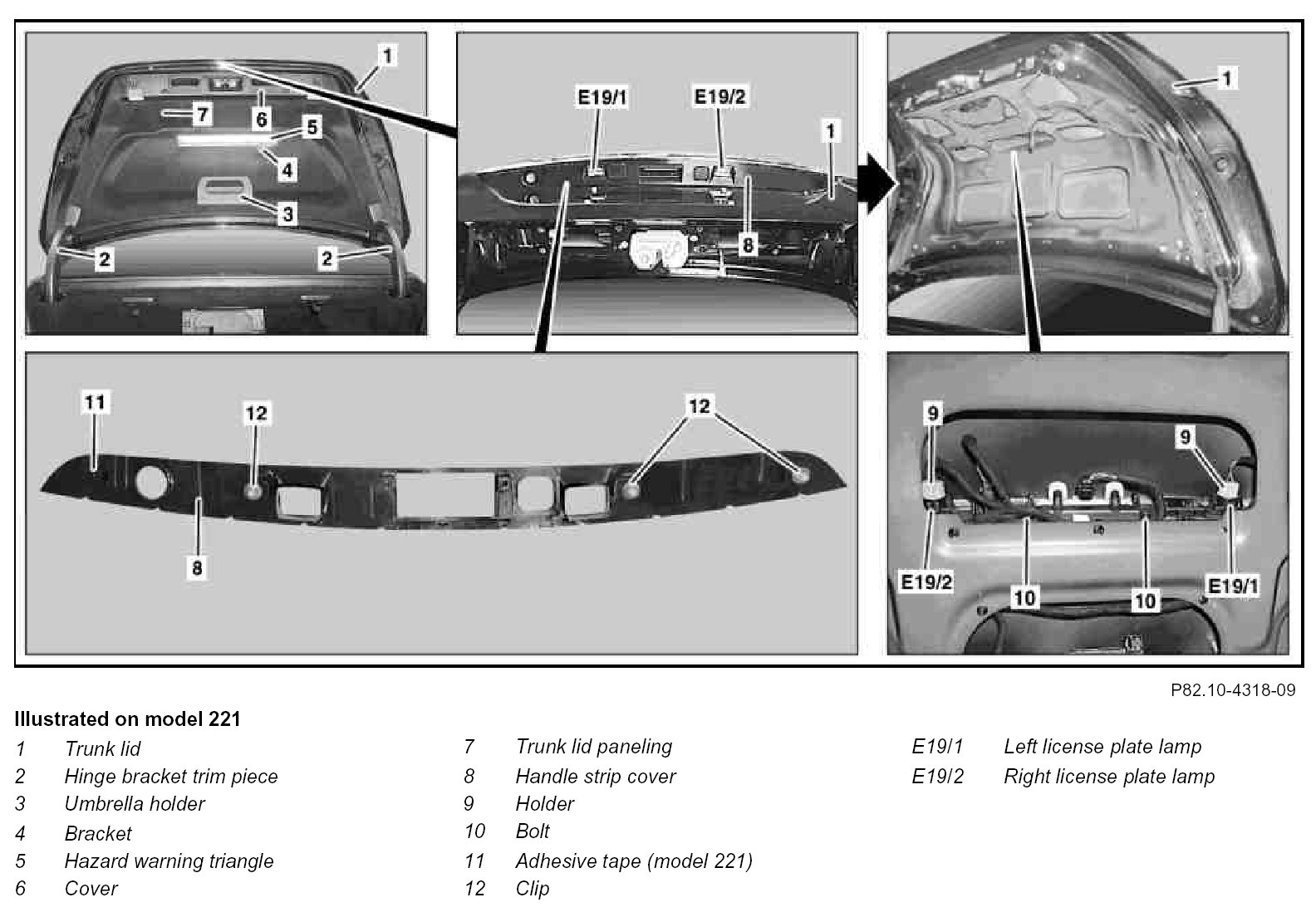

Component Identification:

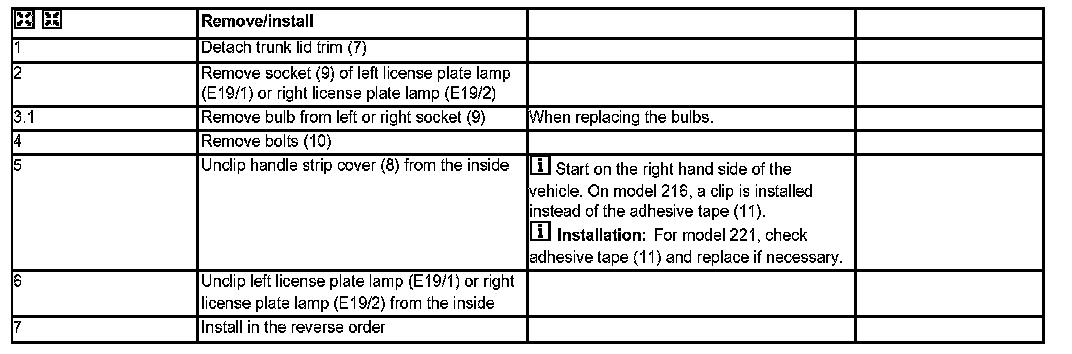

Steps 1 - 7:
