PE82.62-P-2103SAC Wiring Diagram For Antenna Module

Wiring Diagram For Antenna Module PE82.62-P-2103SAC
- with CODE (Z19) S600 Pullman Guard state sedan
- TV antenna splitter A2/89

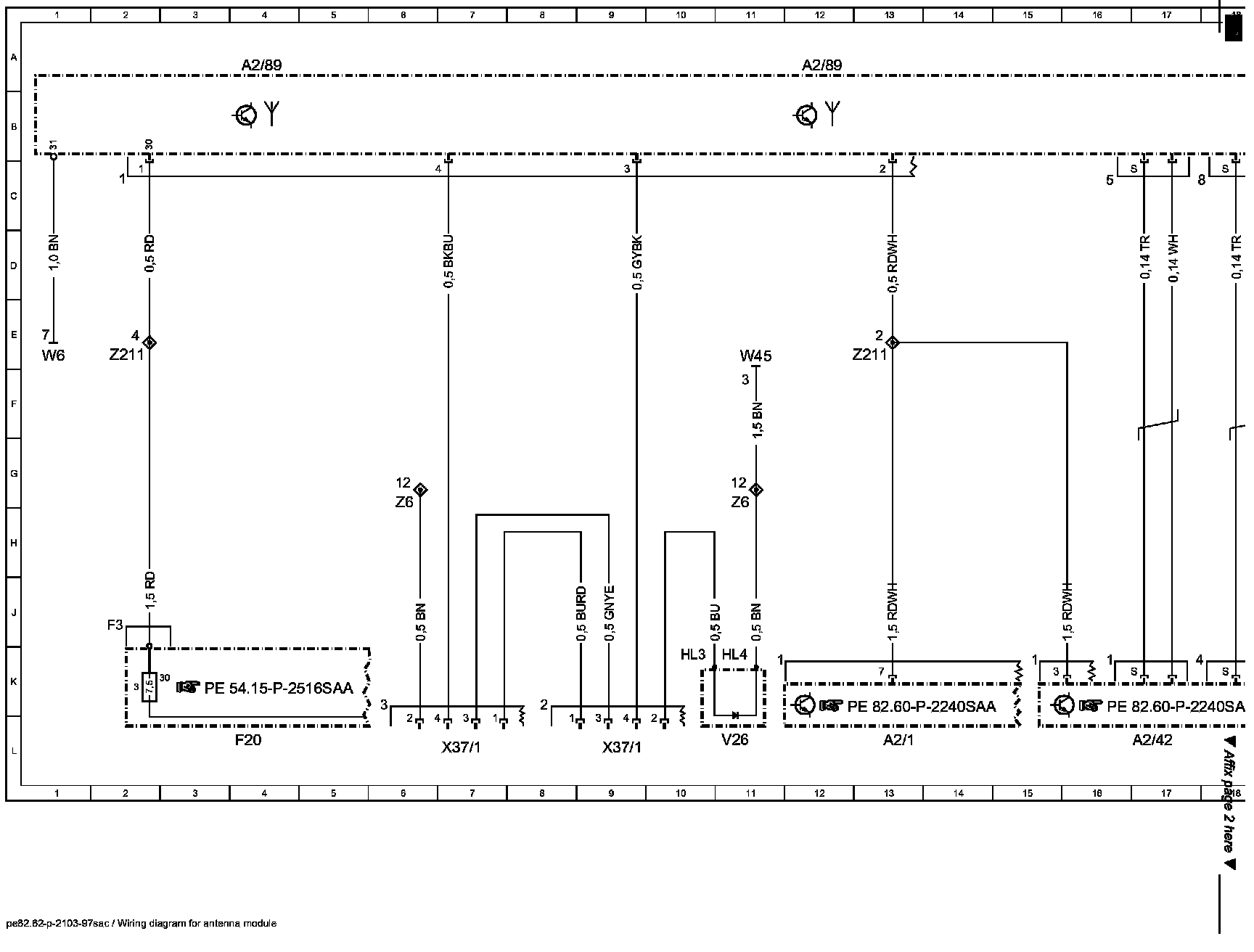

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

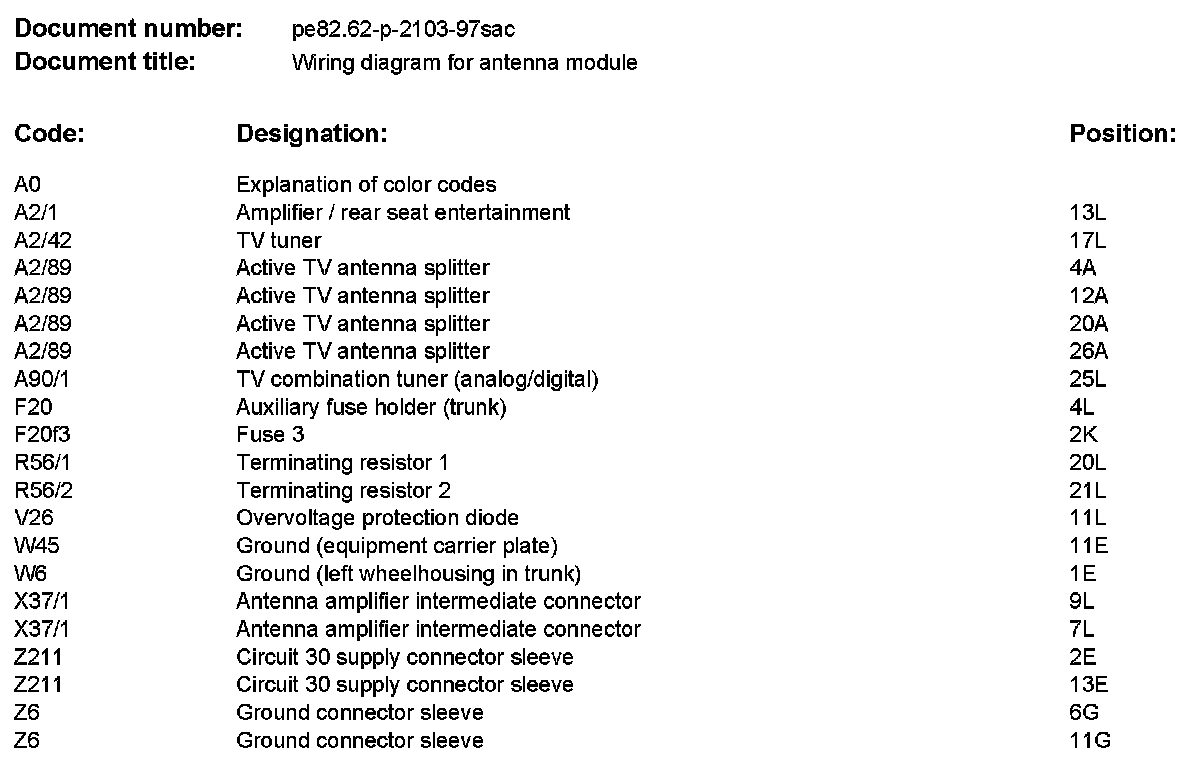

Component Description/Coordinates, A0 To Z6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
