PE82.70-P-2054SAC Electrical Function Schematic For Mobile Phone, Switch On and Switch Off Characteristics

Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics PE82.70-P-2054SAC
- with CODE (386) Comfort telephony
- refinement package
- as of model year 2010

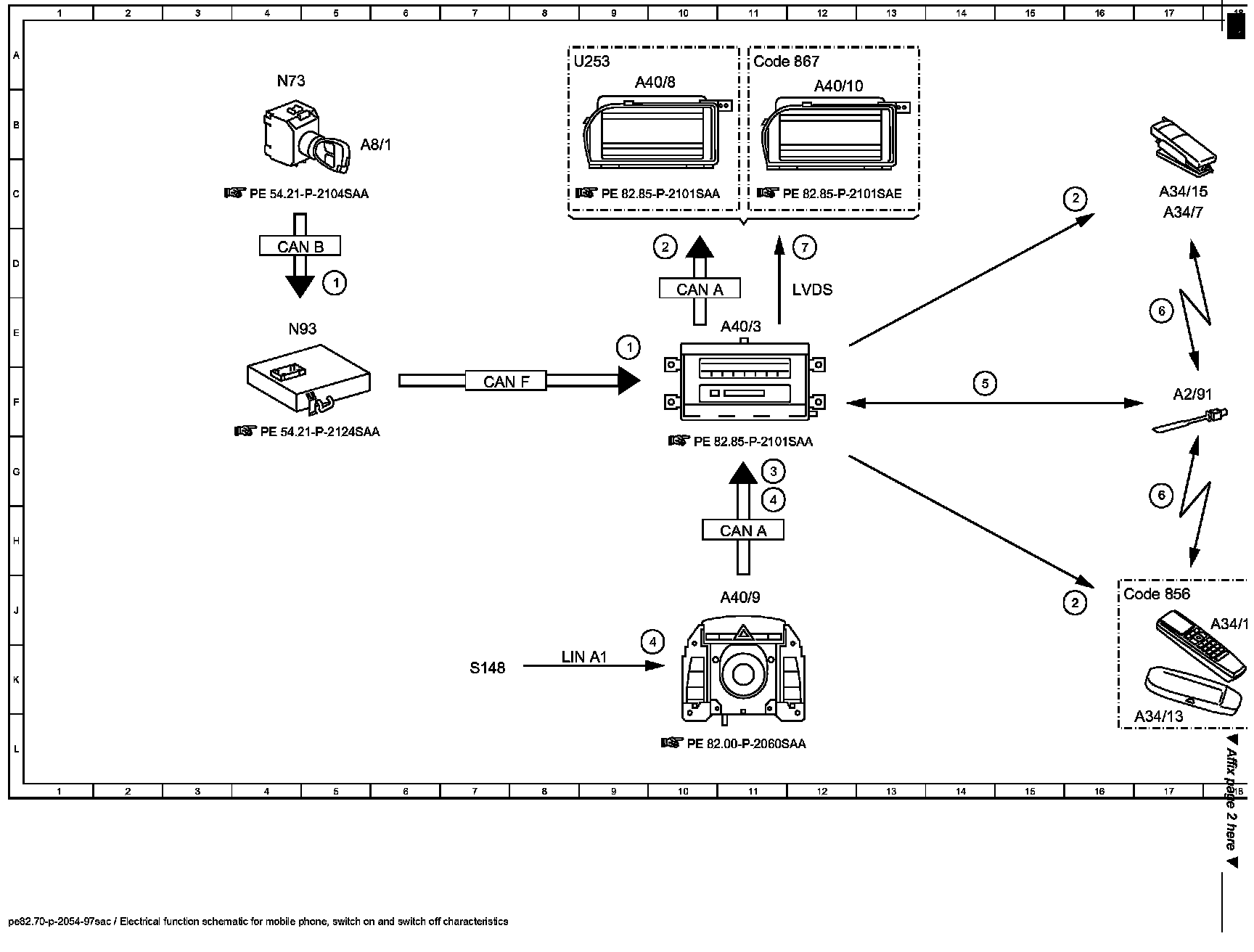

Function Diagram (Part 2):

Function Diagram (Part 3):

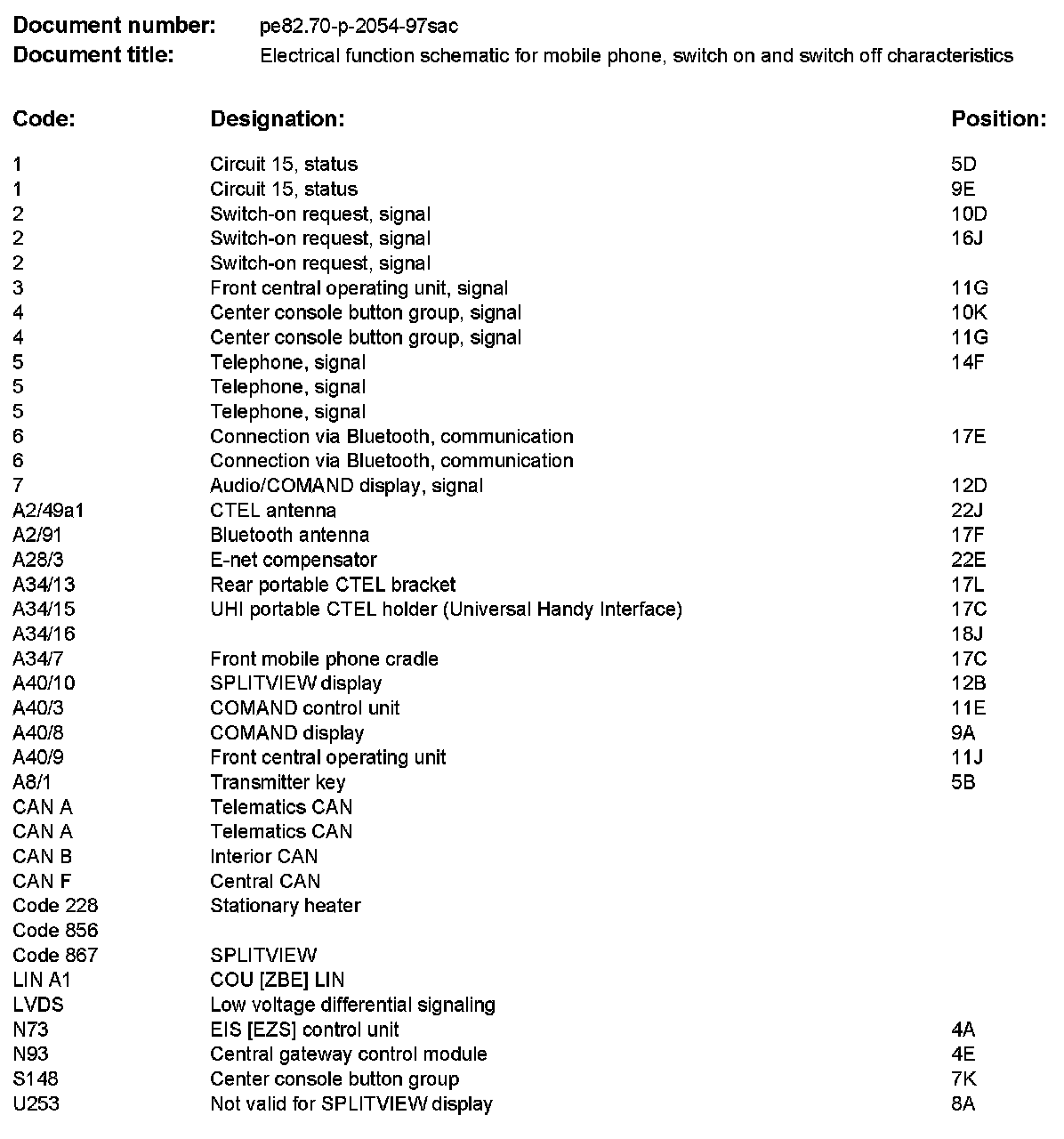

Component Description/Coordinates, 1 To U253:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
