PE54.21-P-2106SAF Wiring Diagram of Front SAM Control Unit With Fuse and Relay Module (N10/1)

Wiring Diagram Of Front SAM Control Unit With Fuse And Relay Module (N10/1) PE54.21-P-2106SAF
- with CODE (Z19) S600 Pullman Guard state sedan
- control unit N10/1

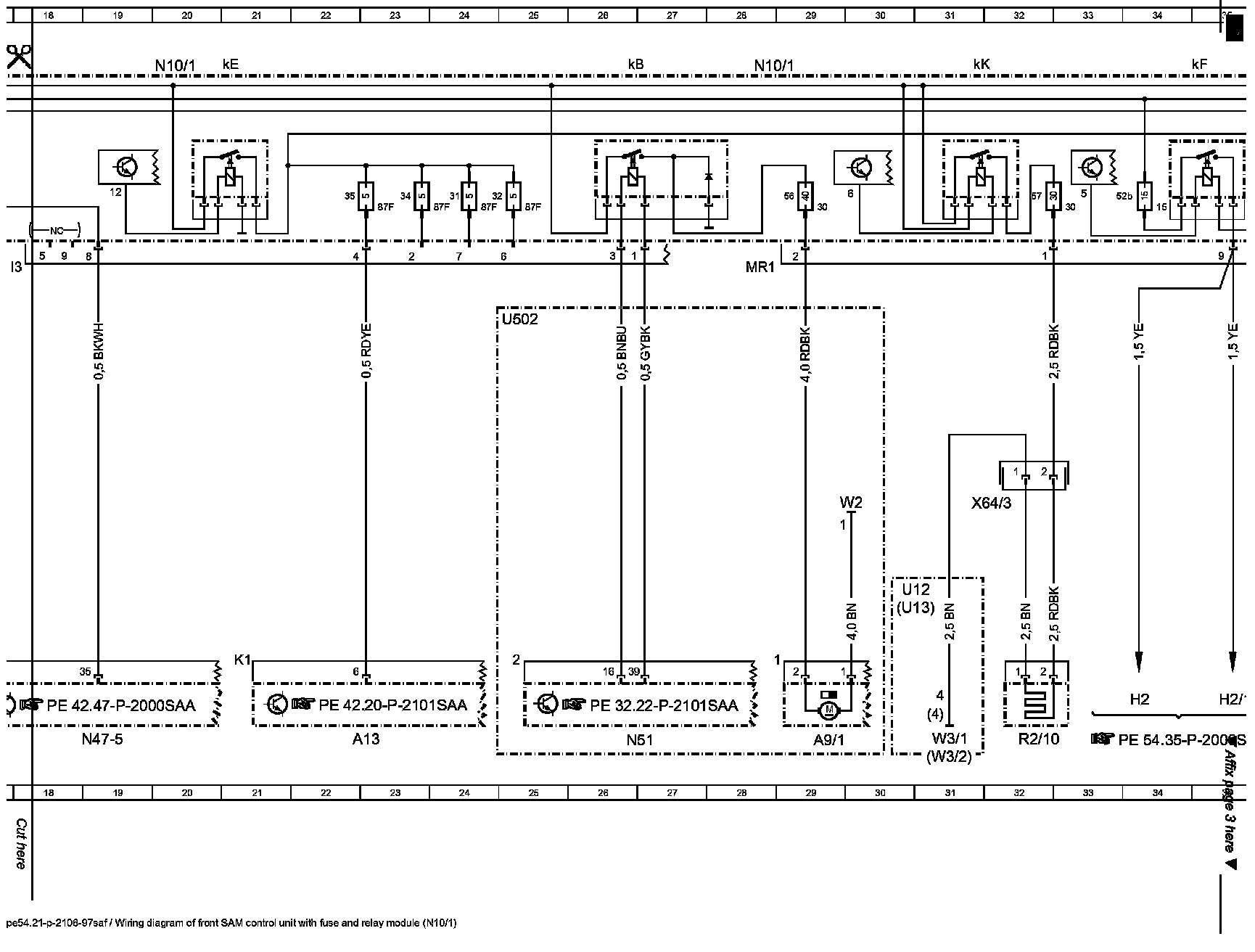

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Component Description/Coordinates, A0 To N10/1kF:

Component Description/Coordinates, N10/1kG To Z3/36:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
