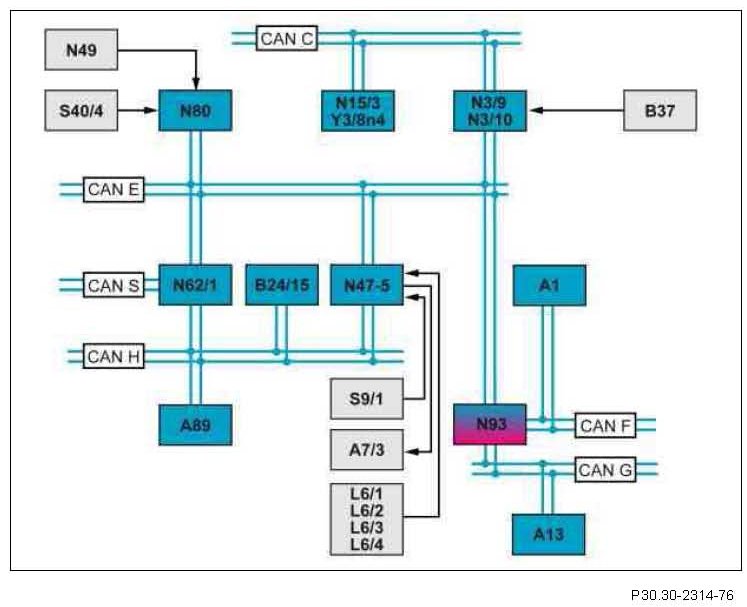

GF30.30-P-0008-01LE Adaptive Cruise Control Block Diagram

GF30.30-P-0008-01LE Adaptive Cruise Control Block Diagram
- with CODE (239) Autonomous intelligent cruise control Plus Light





A1 Instrument cluster
A7/3 Traction system hydraulic unit
A13 Electric parking brake control unit
A89 DTR control unit
B24/15 Yaw rate, lateral and longitudinal acceleration sensor
B37 Accelerator pedal sensor
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N15/3 EGS control unit (with transmission 722.6)
N47-5 ESP control unit N49 Steering angle sensor
N62/1 Radar sensors control unit (SGR) N80 Steering column module
N93 Central gateway control unit
S40/4 CC [TPM] switch S9/1 Stop lamp switch
Y3/8n4 Fully integrated transmission control unit (VGS) (with transmission 722.9)
CAN C Drive train CAN
CAN E Chassis CAN
CAN F Central CAN
CAN G Front end CAN
CAN H Vehicle dynamics CAN
CAN S Sensor CAN
