PE30.30-P-2102SAB Radar Sensors Control Unit Wiring Diagram

Radar Sensors Control Unit Wiring Diagram PE30.30-P-2102SAB
- ENGINES 275.953
- control unit N62/1
- as of model year 2010

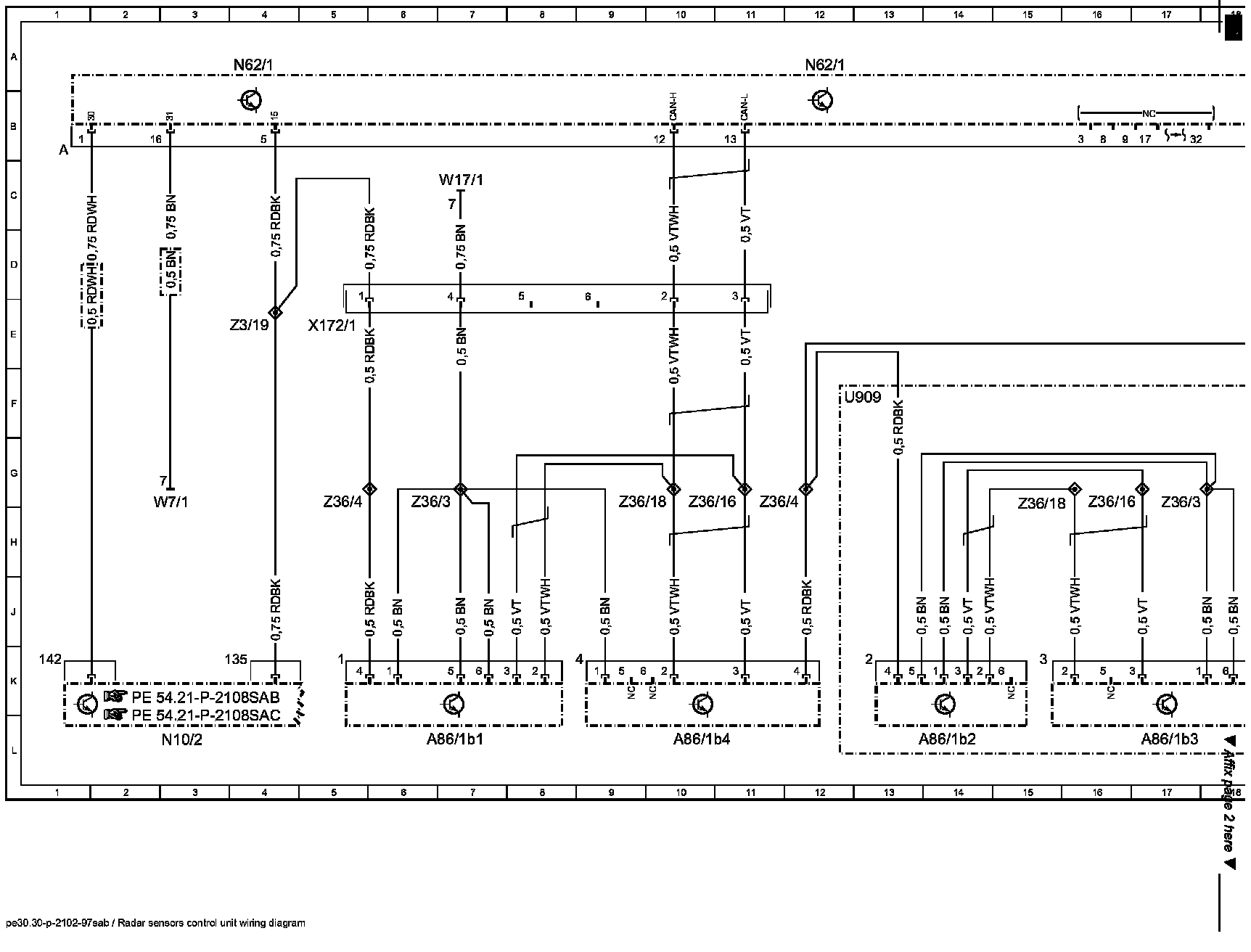

Wiring Diagram (Part 1):

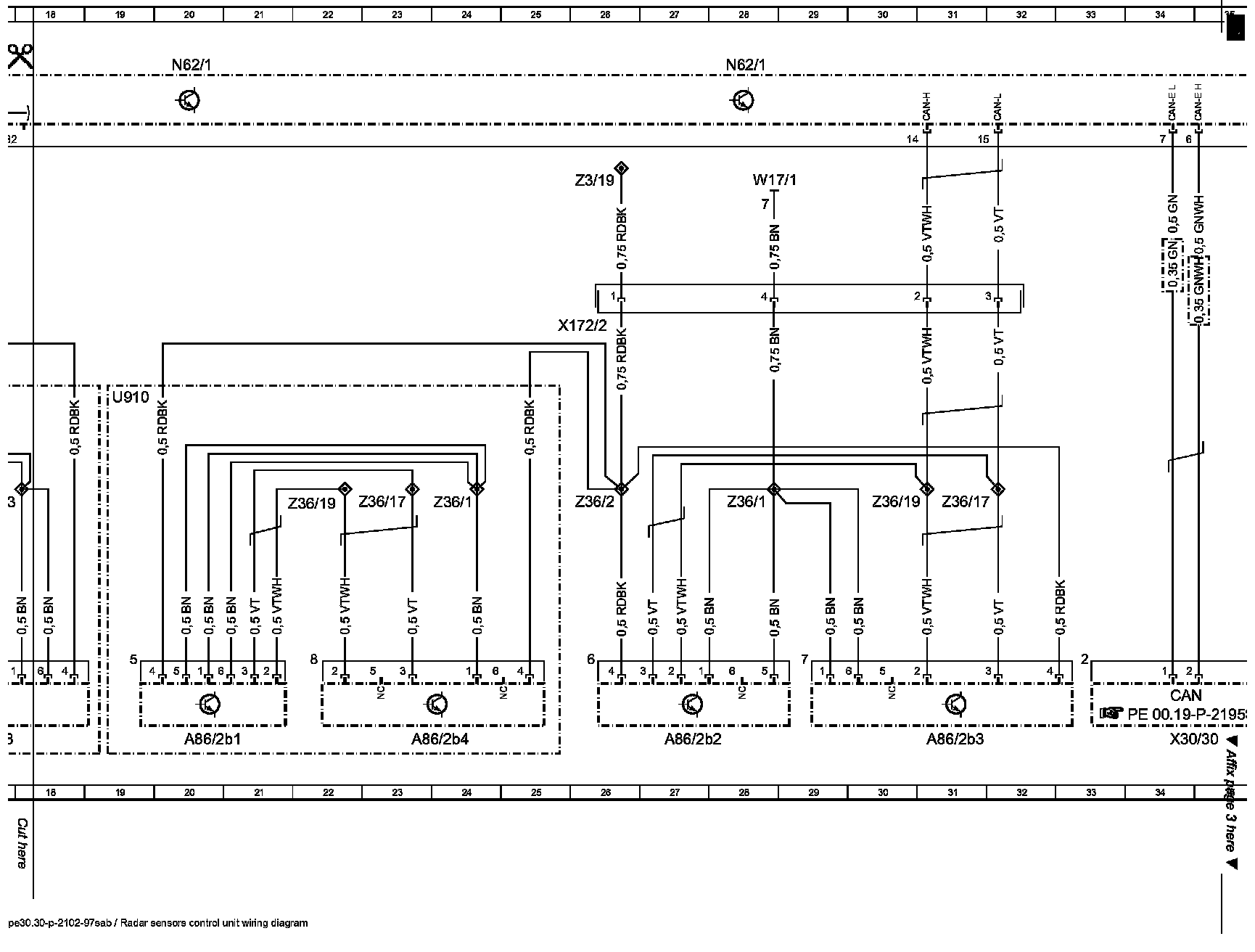

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

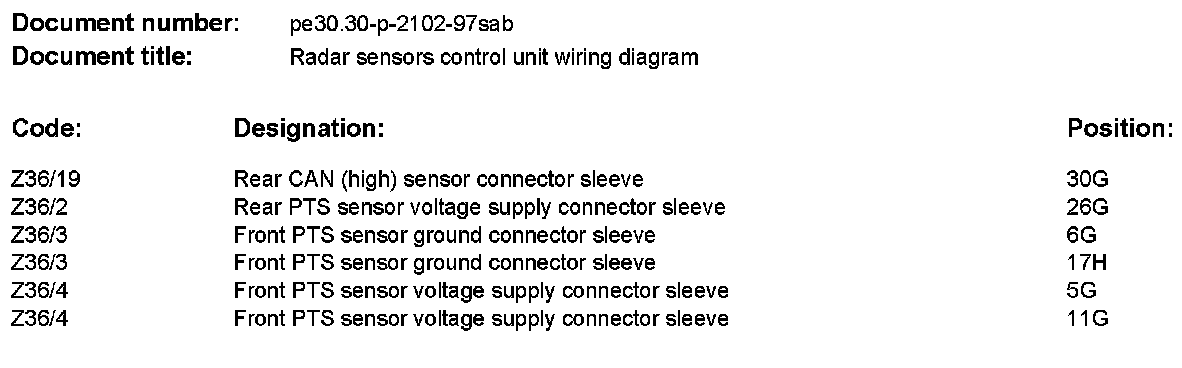

Component Description/Coordinates, A0 To Z36/19:

Component Description/Coordinates, Z36/19 To Z36/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
