PE72.29-P-2111SAA Electric Wiring Diagram For Right Center Door Control Unit (DCU)

Electric Wiring Diagram For Right Center Door Control Unit (DCU) PE72.29-P-2111SAA
- with CODE (Z19) S600 Pullman Guard state sedan
- control unit N69/15

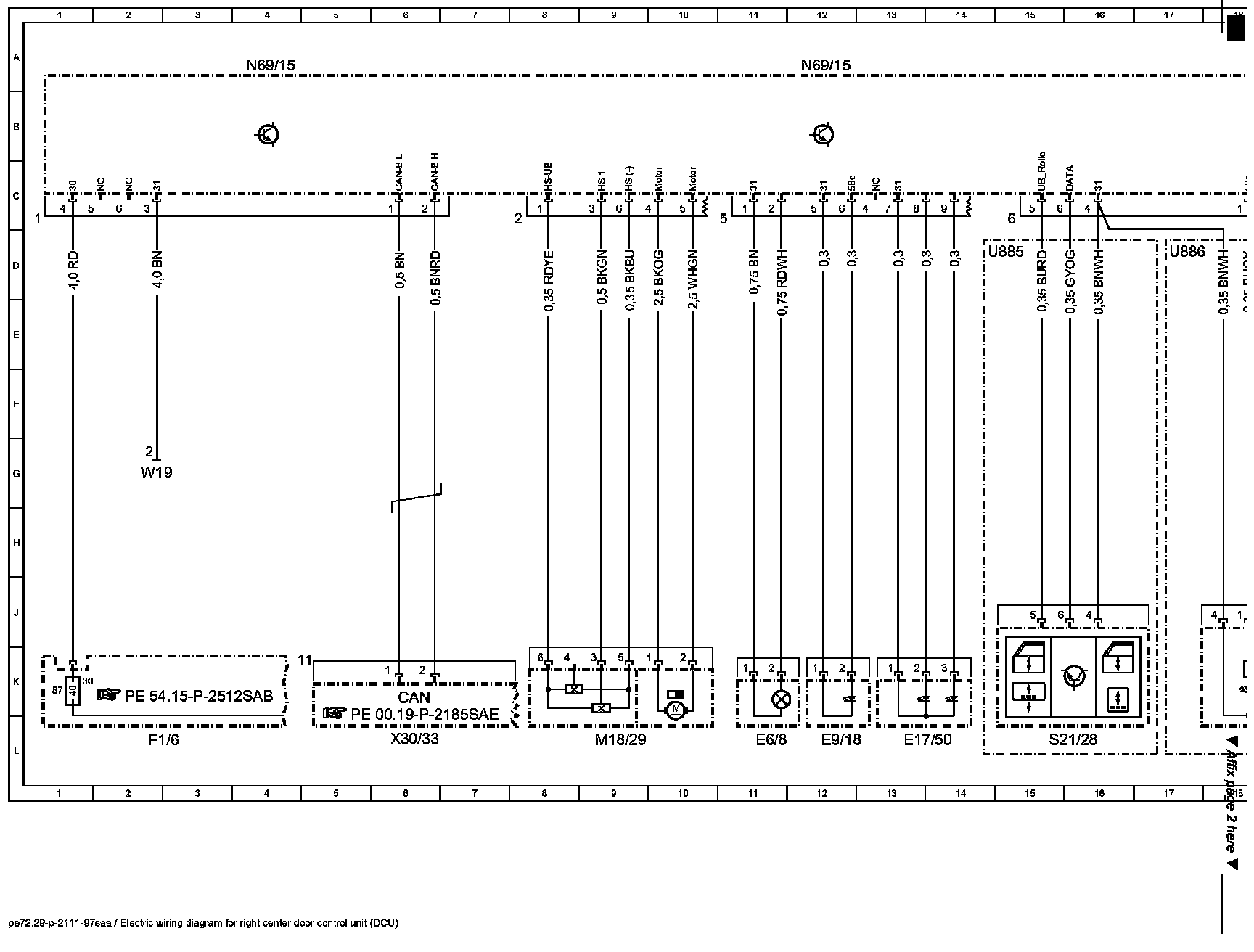

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

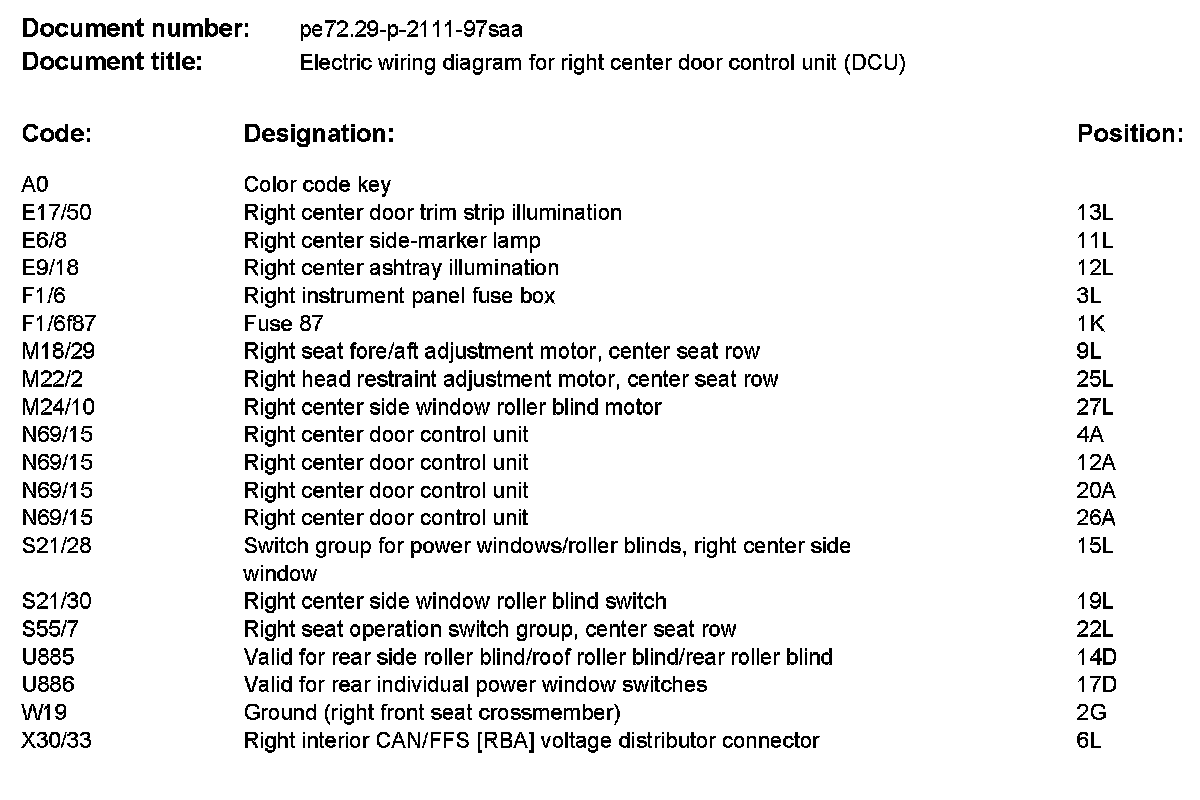

Component Description/Coordinates, A0 To X30/33:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
