PE54.15-P-2401SAA Wiring Diagram For Fuse Block (10 Fuses)

PE54.15-P-2401SAA Wiring Diagram For Fuse Block (10 Fuses)
- with CODE (Z19) S600 Pullman Guard state sedan
- fuse box F53/1

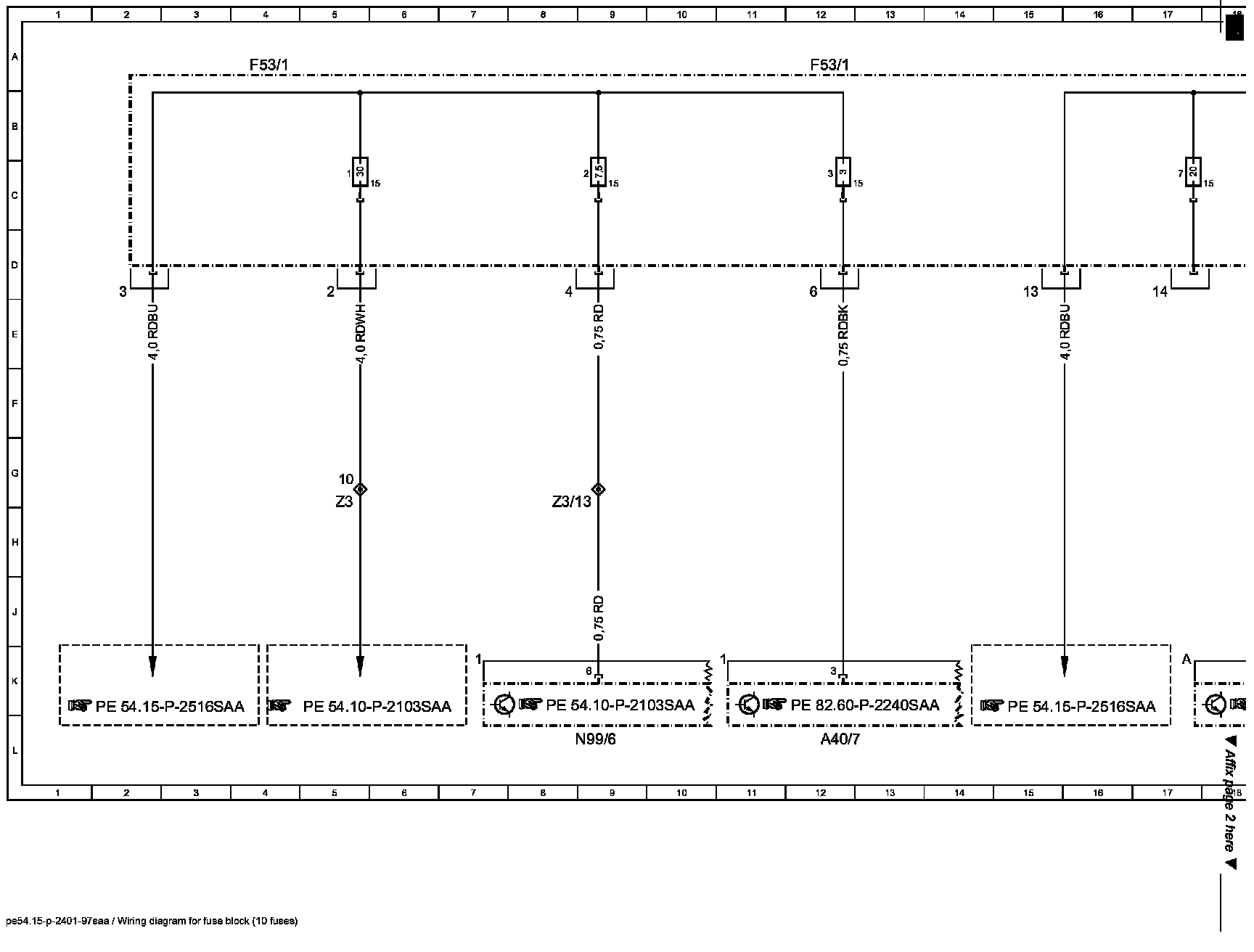

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Component Description/Coordinates, A0 To Z3/13:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
