PE54.15-P-2516SAA Wiring Diagram, Rear Fuse Box (F20)

PE54.15-P-2516SAA Wiring Diagram, Rear Fuse Box (F20)
- with CODE (Z19) Pullman Guard state sedan

Wiring Diagram (Part 1):

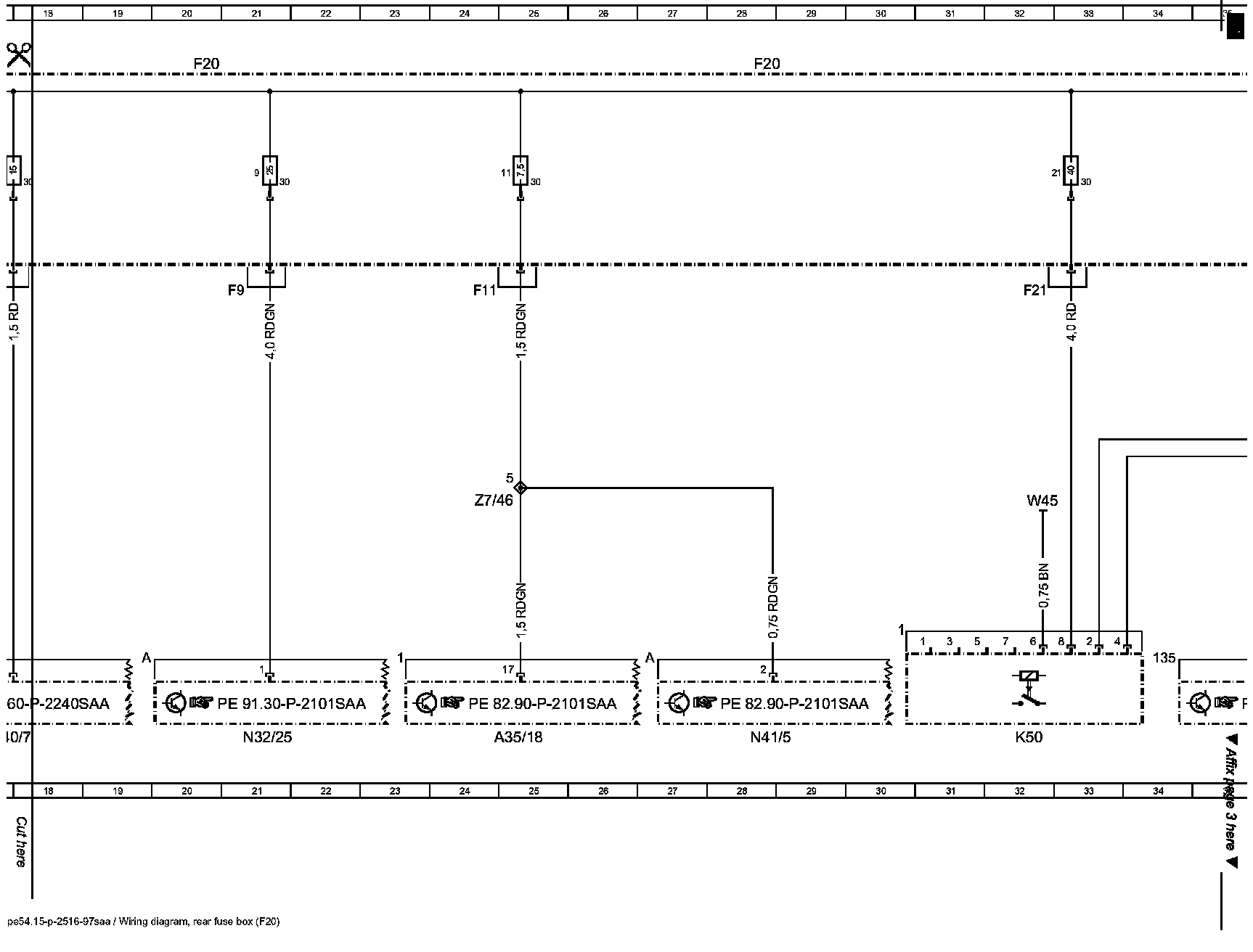

Wiring Diagram (Part 2):

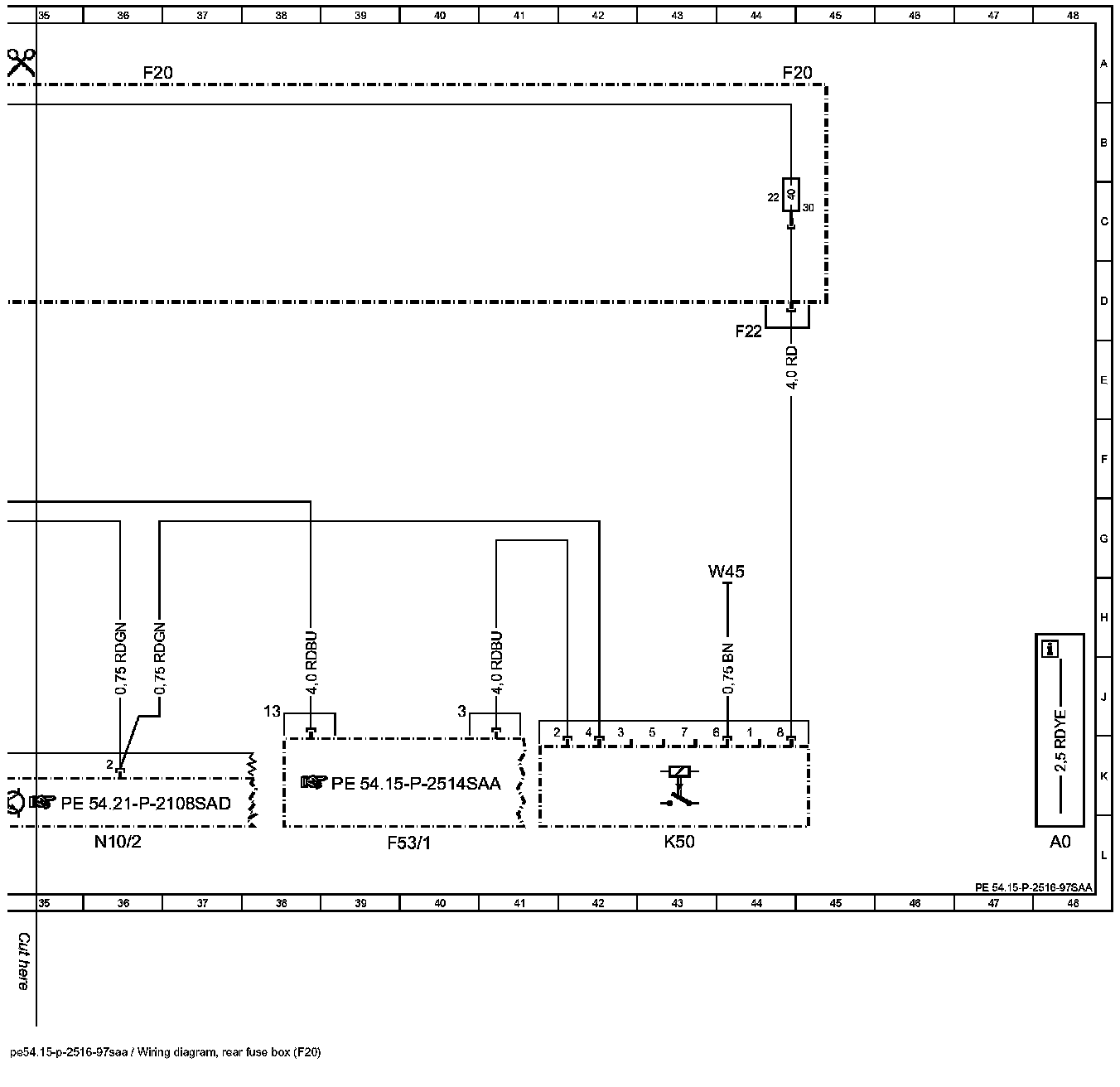

Wiring Diagram (Part 3):

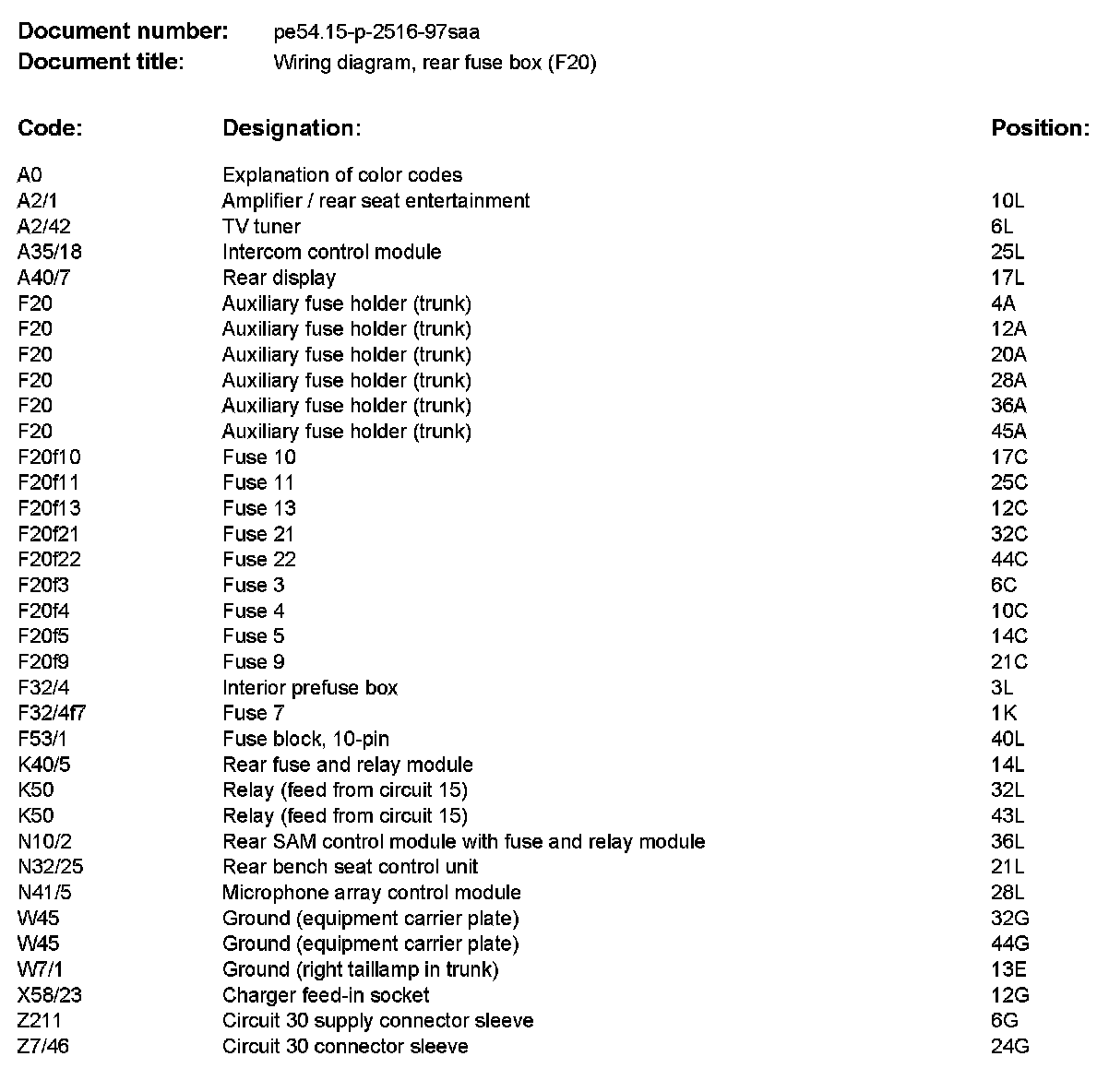

Component Description/Coordinates, A0 To Z7/46:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
