Campaign - Check Purge Line Clamps, Replace If Necessary
FILE:SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER
Campaign No. 20101100007, December 2010
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT: Model 230, Model Year 2011
Check Purge Line Clamps, Replace if Necessary
This Service Campaign has been initiated because DaimlerAG (DAG) has determined that the hose clamps of the purge line may not be engaged correctly. Dealers will check the clamps for correct installation and replace if necessary at the next workshop visit.
Prior to performing this Service Campaign:
^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.
^ Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.
Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.
Approximately 538 vehicles are affected.
Procedure
1. Remove right rear wheel.
2. Remove fender liner in right rear fender (AR88.10-P-1400R).
Note (regarding above WIS instructions):
Remove only right rear wheel.

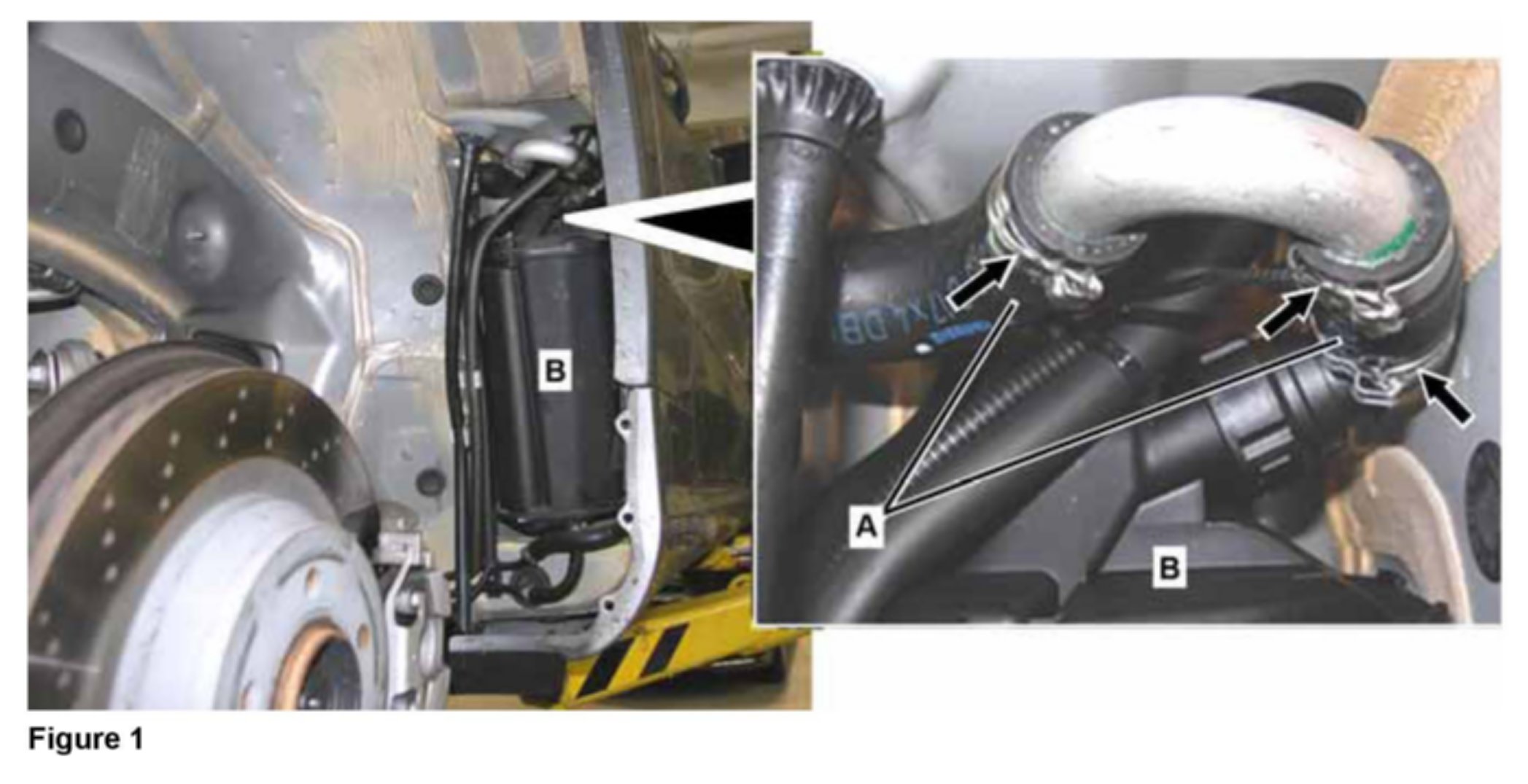

3. Check for correct engagement (locking) of "CLICK" type hose clamps (arrows, Figure 1) onto purge line hoses (A) at evaporative emissions canister (B):
^ If hose clamps (arrows, Figure 1) are properly engaged (locked) campaign is complete.
^ If hose clamps (arrows, Figure 1) are not properly engaged (locked), replace clamp(s) with only new CLICK type hose clamps (refer to parts table below).
Note:
^ Replace only the hose clamp(s) that are not properly engaged (locked).
^ Secure hose nearest to the canister using the large hose clamp (part no.: A 006 997 46 90). Secure/lock CLICK hose clamps onto hose using recommended tool or equivalent (refer below).

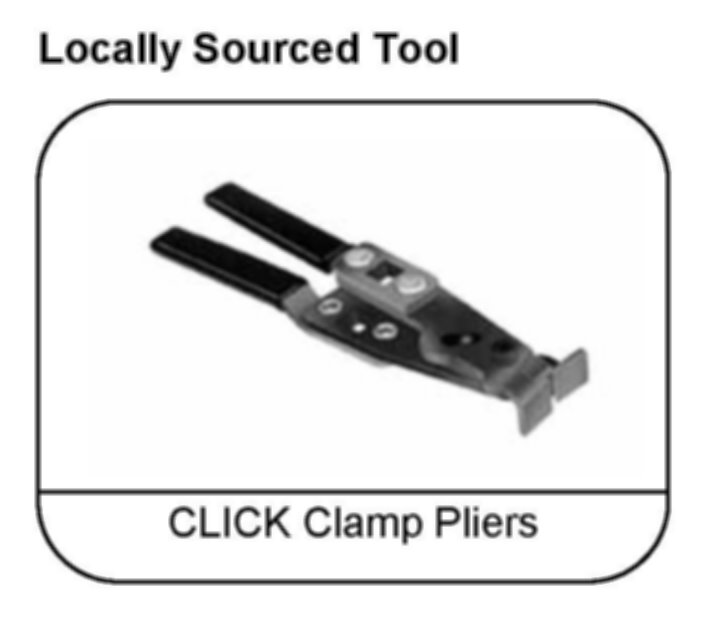

Locally Sourced Tool

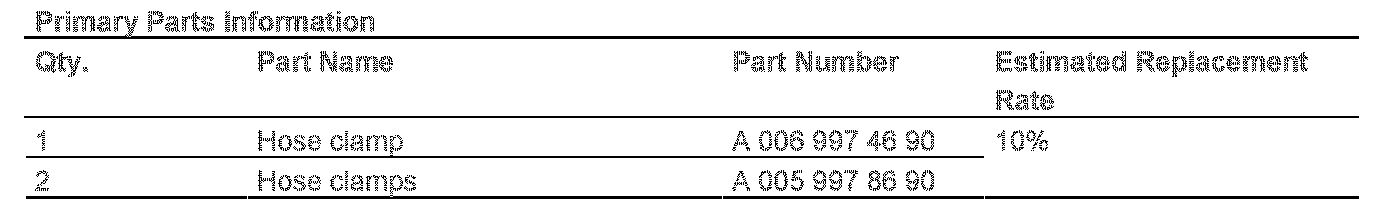

Primary Parts Information
Note:
^ Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.
^ The following allowable labor operation should be used when submitting a warranty claim for this repair:
Warranty Information
