GF07.61-P-0001-01MA (ME-SFI) Motor Electronics Fuel Injection and Ignition System, Location of Components



GF07.61-P-0001-01MA (ME-SFI) Motor Electronics Fuel Injection And Ignition System, Location Of Components
- up to model year 08

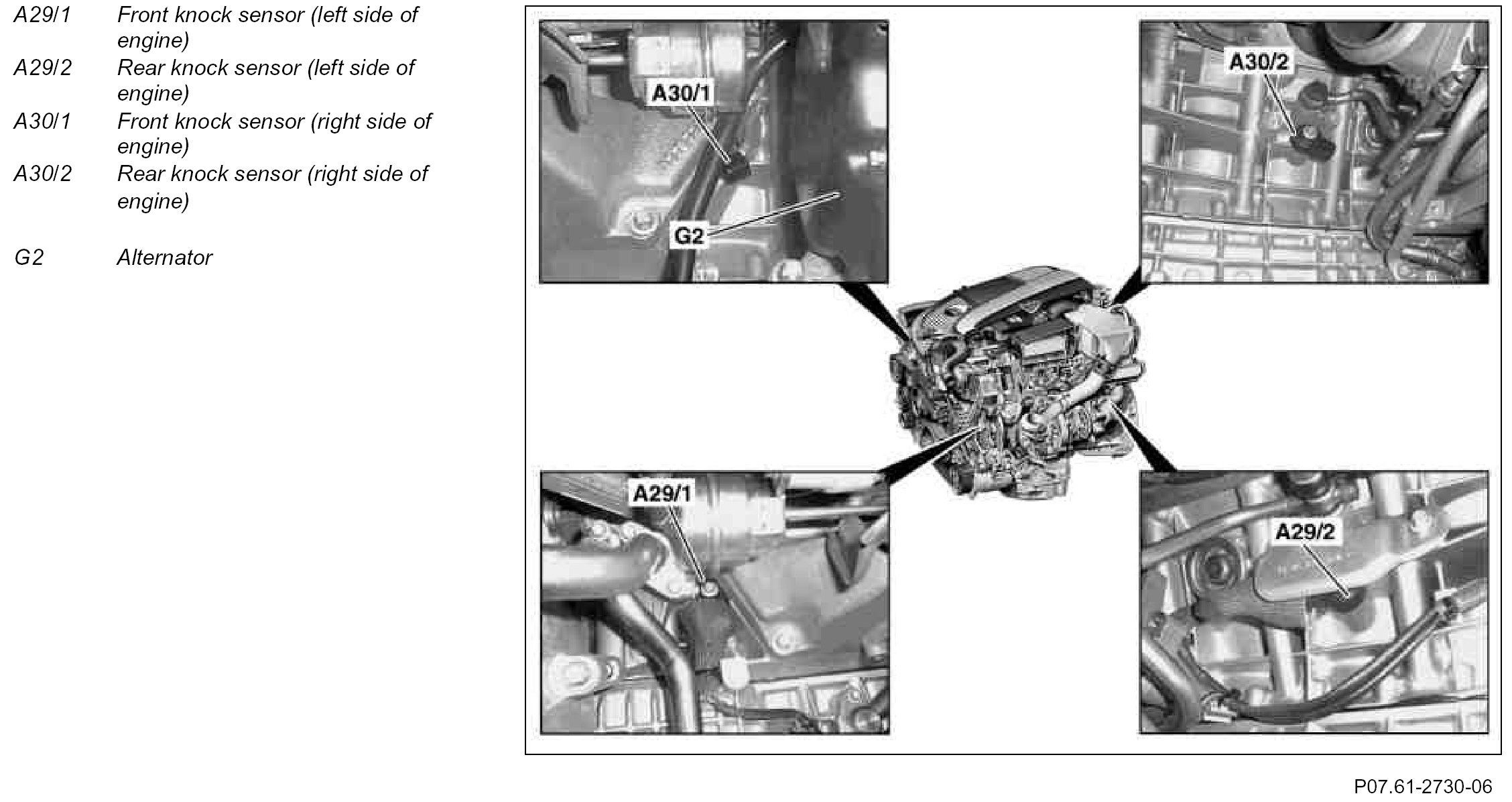

Component Identification:

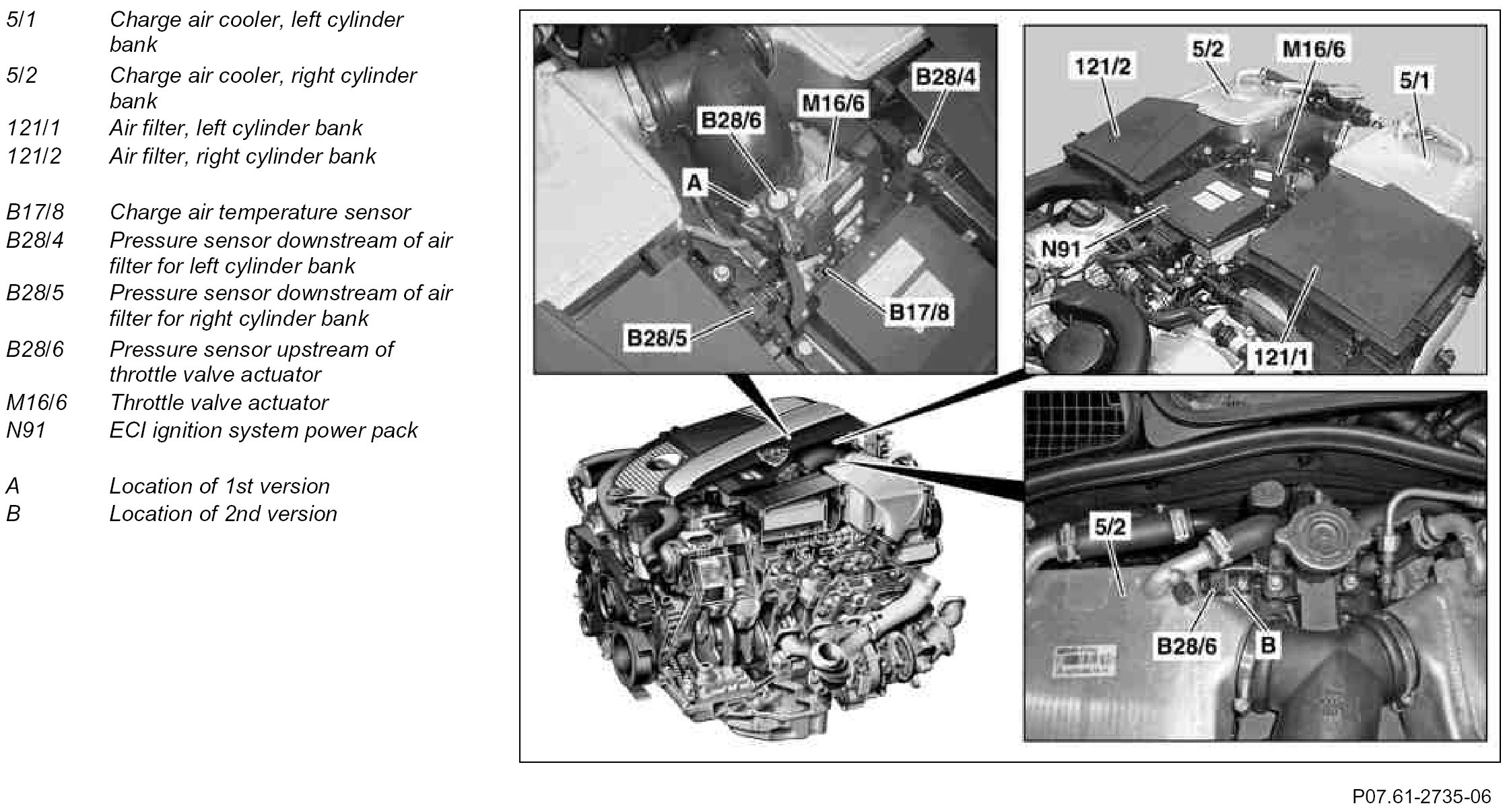

Component Identification:

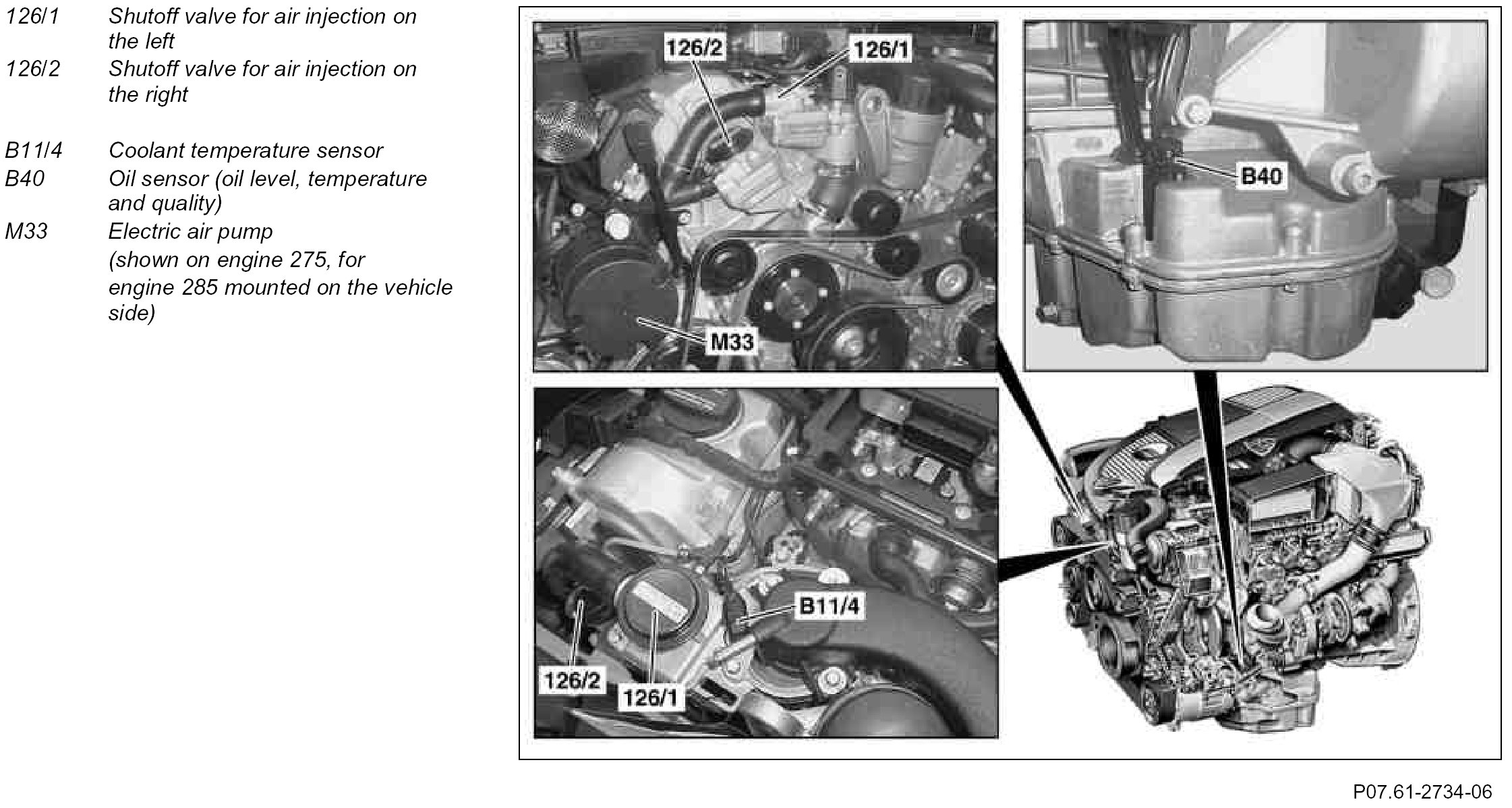

Component Identification:

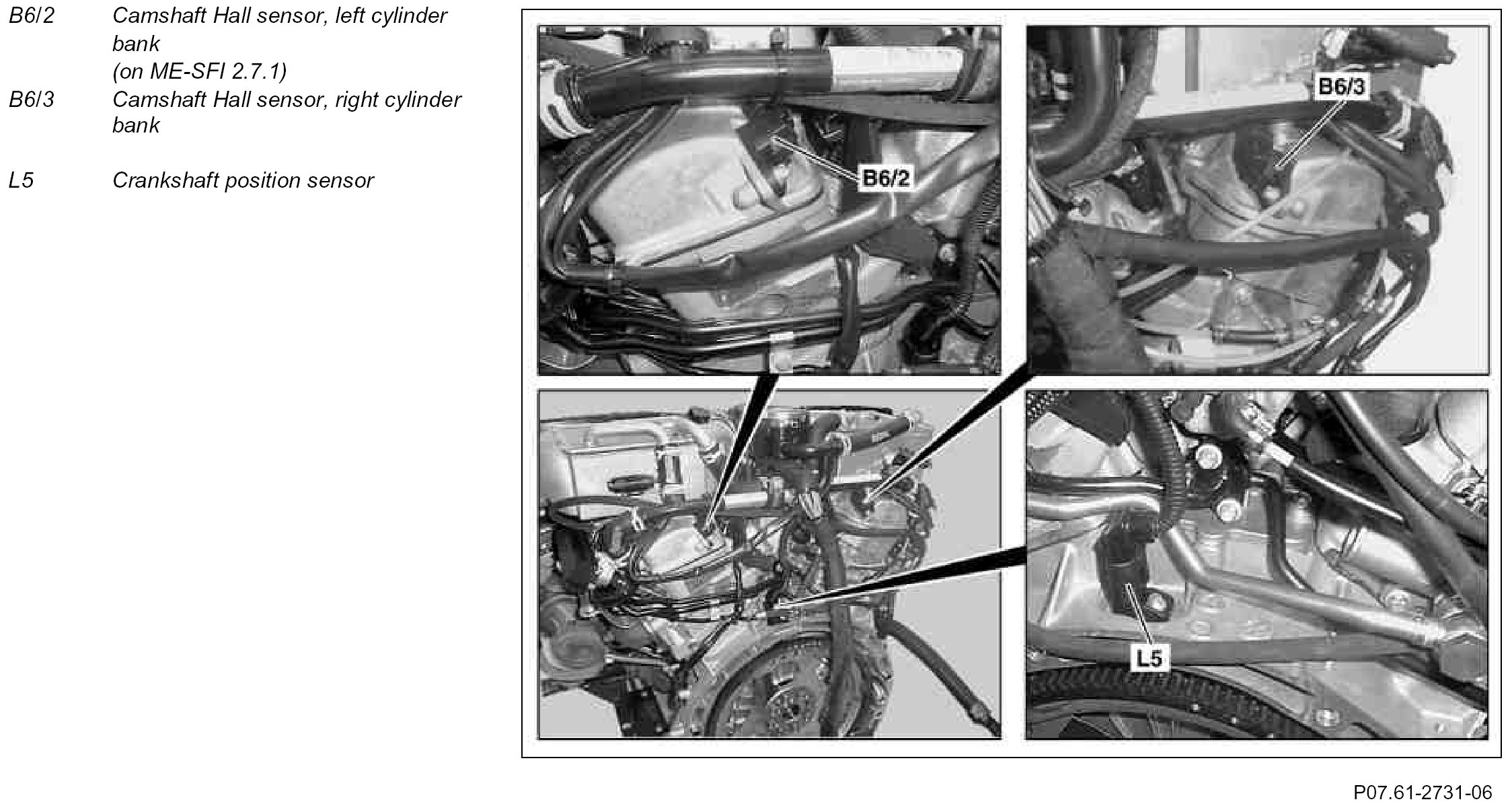

Component Identification:

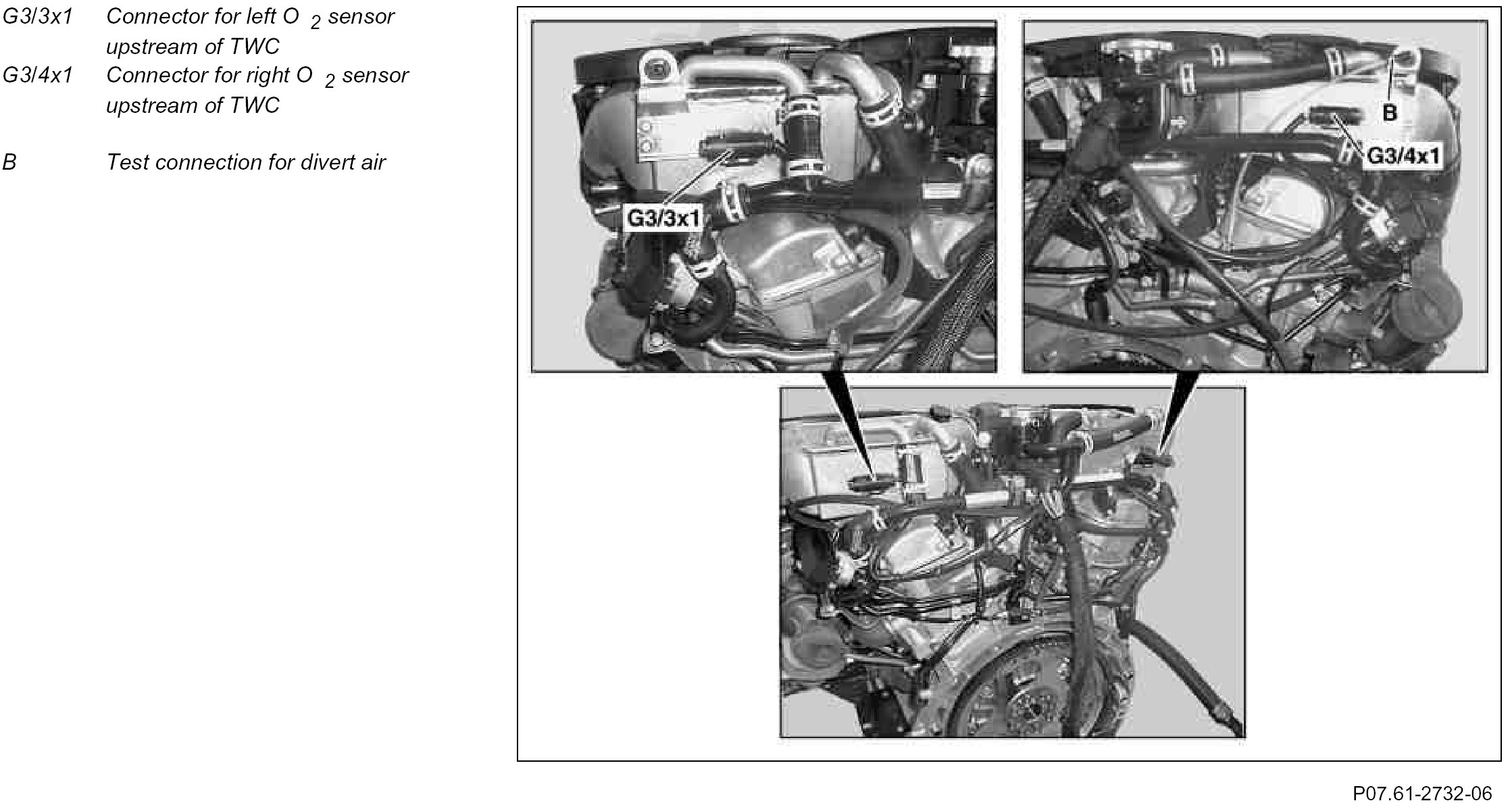

Component Identification:

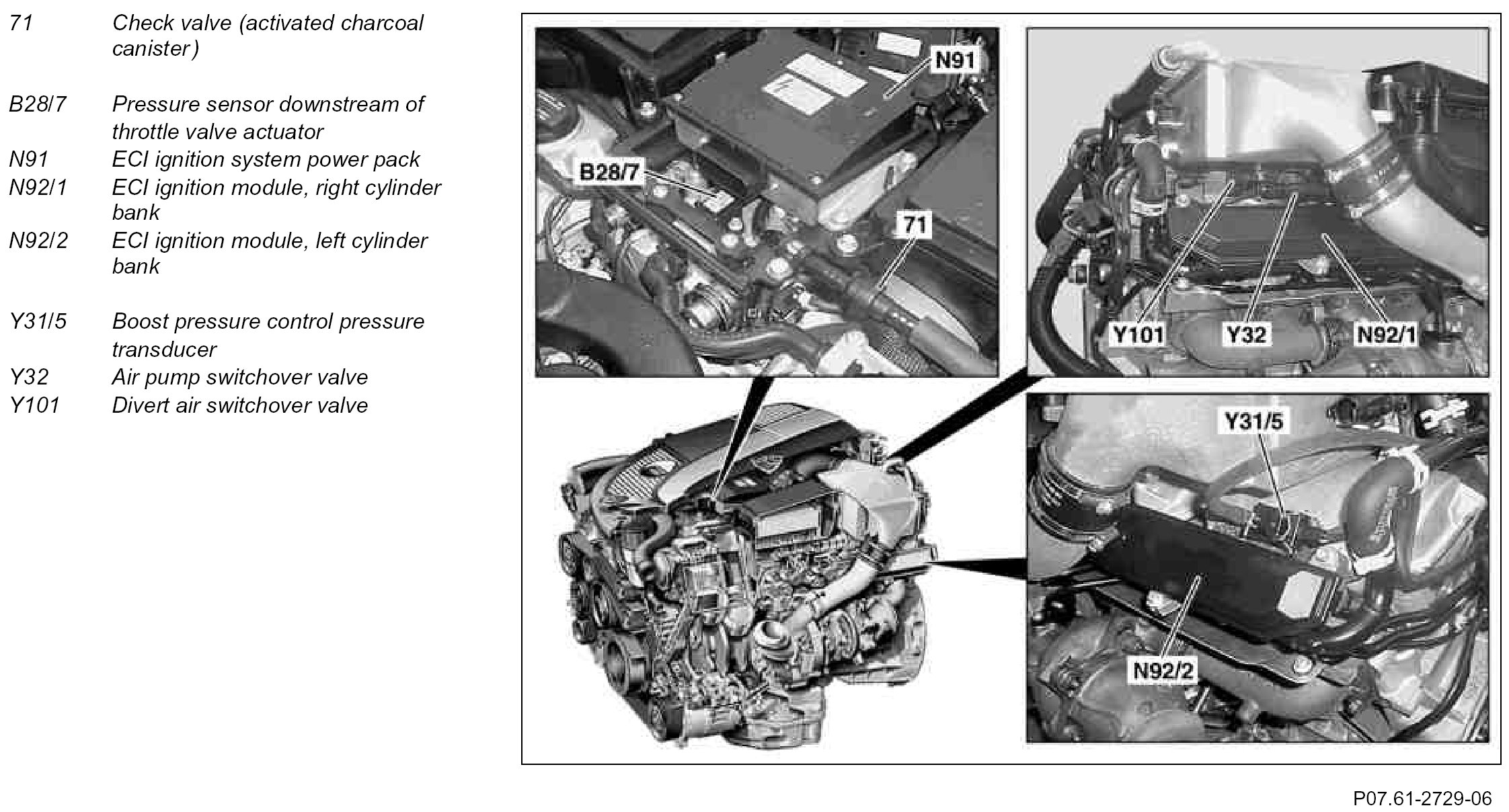

Component Identification:





Component Identification:
