GF27.60-P-5143ACM Selector Valve, Component Description

GF27.60-P-5143ACM Selector valve, component description
- TRANSMISSION 722.643/649
- refinement package
- as of model year 09

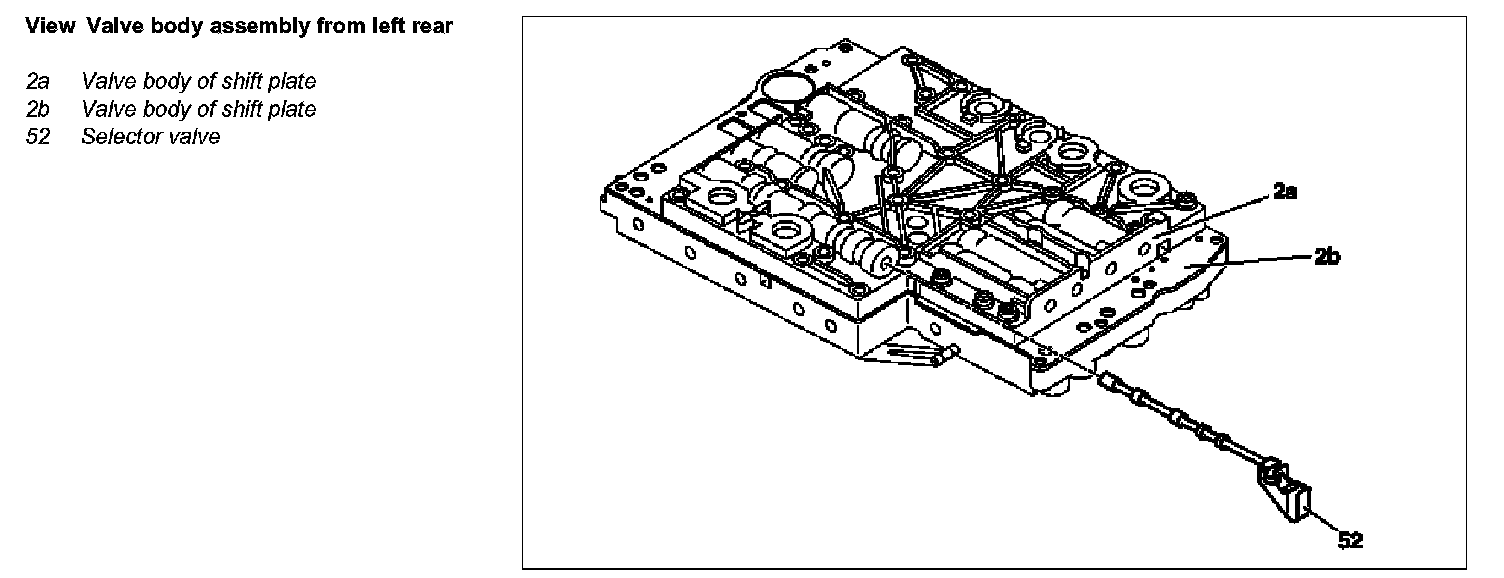

Component Identification:

Location
The selector valve is located in the shift plate valve body.

Task
Distributes pressure to the appropriate hydraulic components according to the selector lever position selected by the driver.
