GF68.05-P-1200RC Garage Door Opener Transmitter, Component Description

GF68.05-P-1200RC Garage Door Opener Transmitter, Component Description
- with CODE (231) Garage door opener
- with CODE (232) Garage door opener with frequency 284-390 MHz

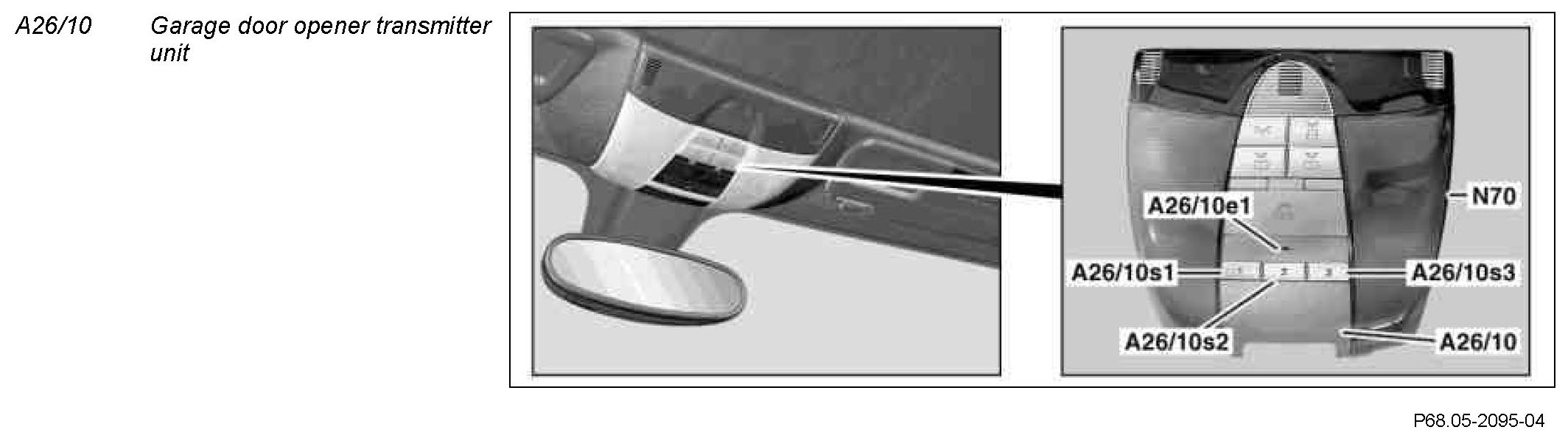

Component Identification:

Location
The garage door opener transmitter unit is installed in the housing of the overhead control panel control unit (N70).

Task
Transmitting a learned-in radio signal to open and close doors and gates.

Design
The following components are located on the garage door opener transmitter unit:
- Garage door opener indicator lamp (A26/10e1)
- Garage door opener button 1 (A26/10s1)
- Button 2 garage door opener (A26/10s2)
- Button 3 garage door opener (A26/10s3)
