GF91.29-P-5213RC Seat Adjustment Motor, Component Description

GF91.29-P-5213RC Seat Adjustment Motor, Component Description
- with CODE (275) Memory package (driver seat, steering column. mirrors)
- with CODE (242) Electrically adjustable front passenger seat with memory

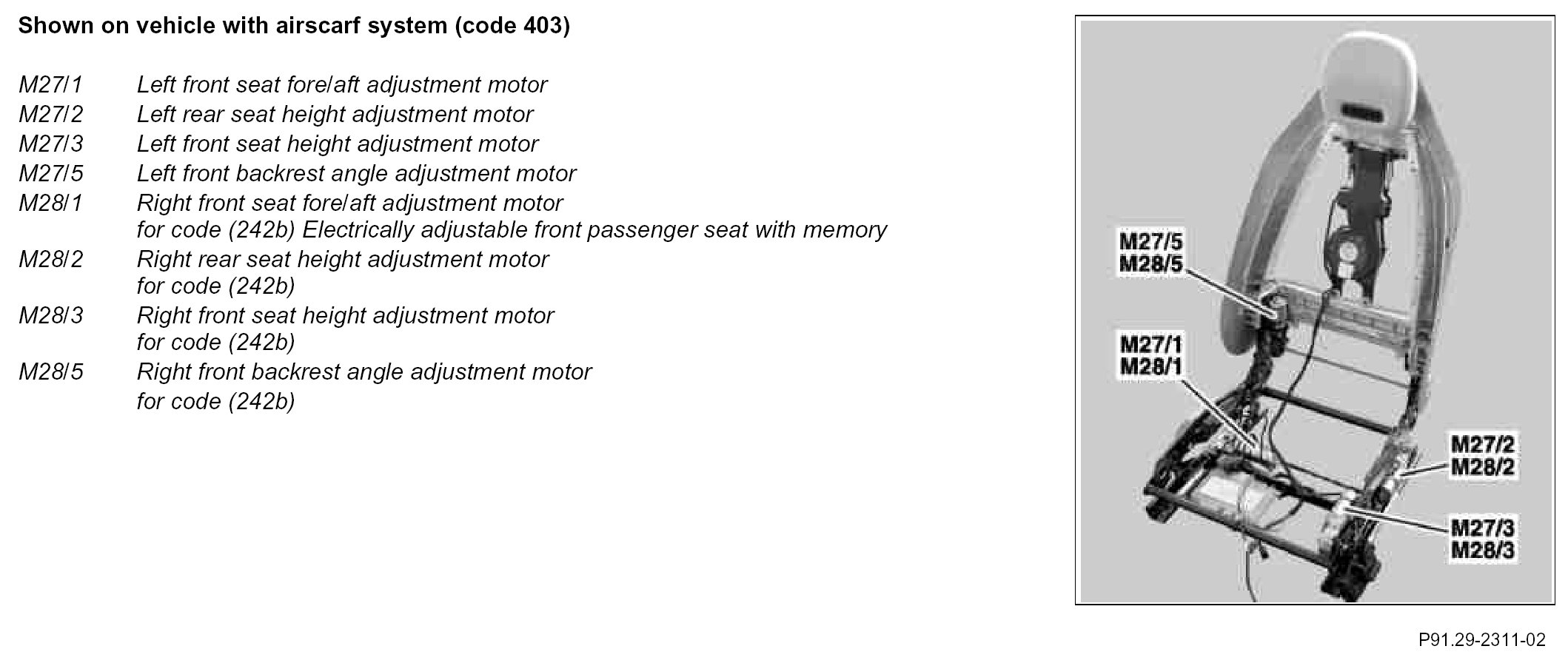

Component Identification:

Location
The motors are mounted in each seat at the bottom in the seat frame and in the backrest.

Task
The left and right front seat fore/aft adjustment motors, the seat height adjustment motors and the left and right front backrest angle adjustment motors move the corresponding seat into the desired position.

Function
The seat adjustment motors are actuated by the driver seat control unit (N32/1) or front passenger seat control unit (N32/2).
A Hall sensor is located on each seat adjustment motor for registering the position.
