GF91.30-P-3210RC Heated Cushion, Component Description

GF91.30-P-3210RC Heated Cushion, Component Description
- with CODE (873) Heated left and right front seats

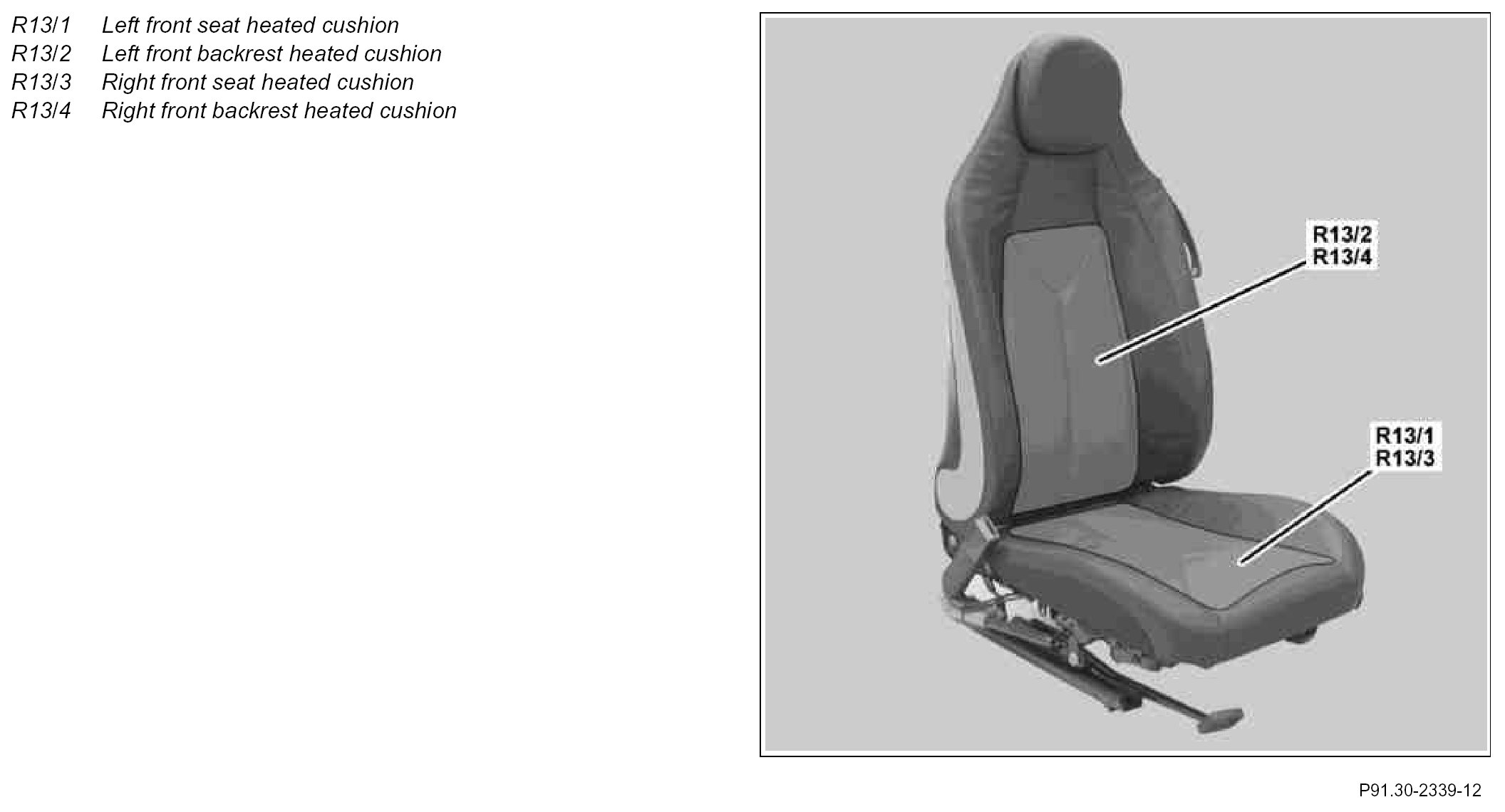

Component Identification:

Location
The heater pads are integrated into the corresponding seat covers.

Task
The heater pads are responsible for heating the corresponding seat and backrest surface. The heater pads are actuated by the SIH, AIRSCARF and steering wheel heater control unit (N25/7) as a function of time depending on the selected heating stage.
