GF83.10-P-2051RC Blower Regulator, Component Description

GF83.10-P-2051RC Blower Regulator, Component Description

Component Identification:

Location

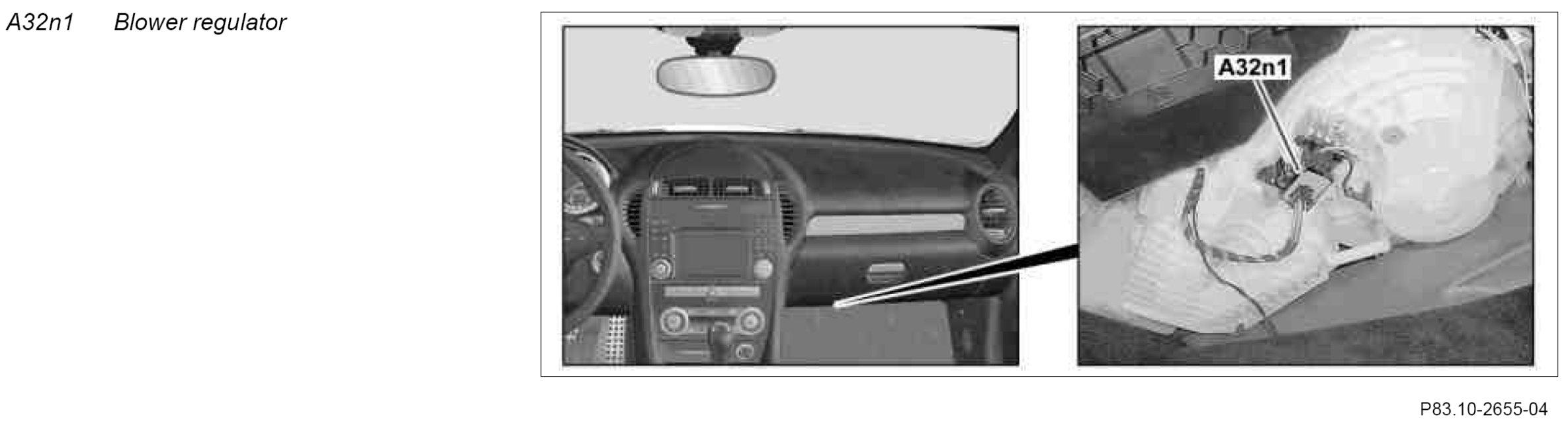

The blower regulator is located in the heater or air conditioning housing next to the blower motor (A32m1).

Task
The blower regulator regulates the power supply for the blower motor depending on the settings at the automatic heater control and operating unit (N18) (without code (580) Automatic air conditioning and without code (581) Comfort automatic air conditioning), at the AAC [KLA] control and operating unit (N22) (with code (580) Automatic air conditioning) or at the comfort AAC [KLA] control and operating unit (N22/7) (with code (581) Comfort automatic air conditioning).

The blower regulator is connected to the control and operating unit via the AC bus.
