GF27.60-P-5216ACK Working Pressure Regulating Pressure, Component Description

GF27.60-P-5216ACK Working pressure regulating pressure, component description
- Transmission 722.695

Component Identification:

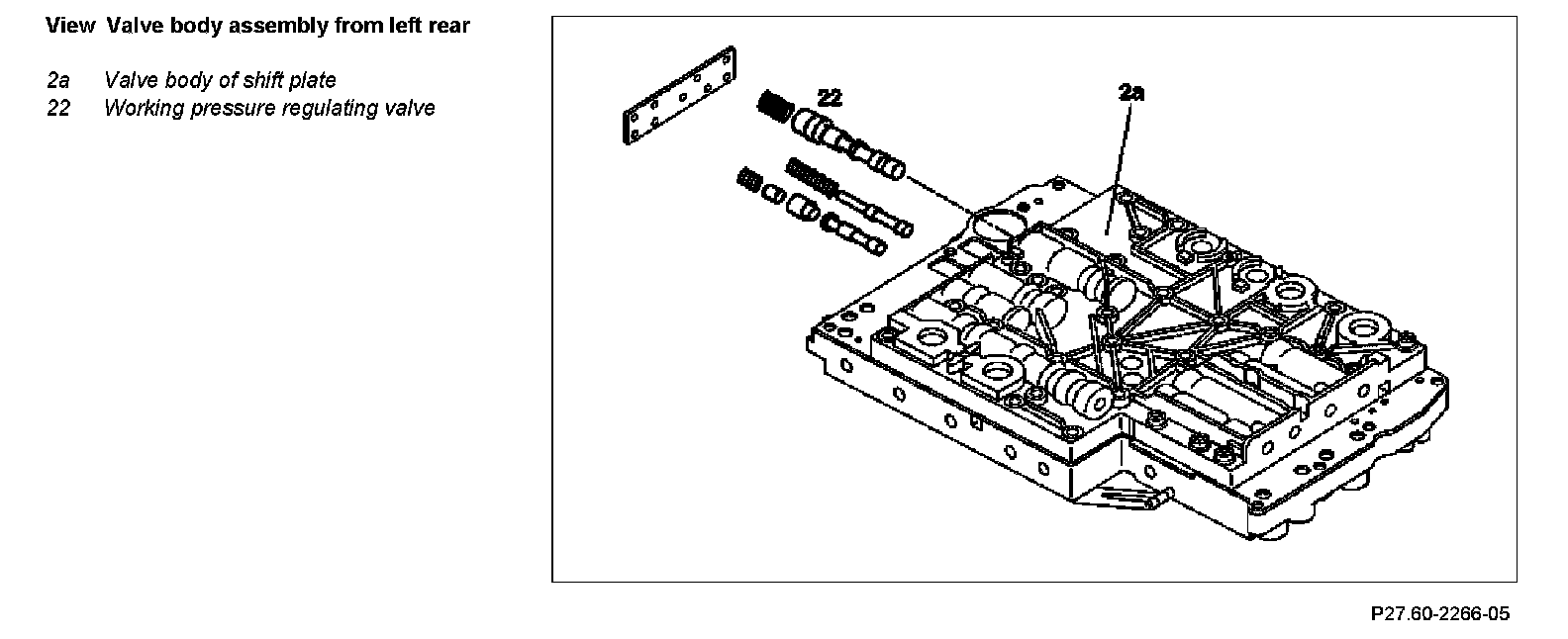

Location
The working pressure regulating valve is located in the shift plate valve body.

Task
The working pressure regulating valve regulates the main pressure of the hydraulic system.

Component Identification:

Function
The level of the working pressure is regulated at the working pressure regulating valve in a load-dependent and gear-dependent manner. A minimum level (basic pressure) is adjusted by the spring in the working pressure regulating valve.
