AR42.10-P-0225CV Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake

AR42.10-P-0225CV Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake
MODEL 204.0 /2 /3 /9
With divided brake caliper support

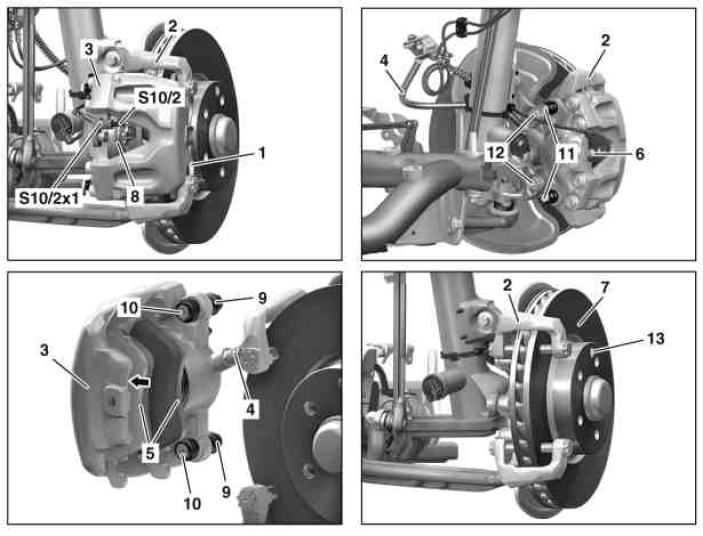

Illustrated on model 204.057

1 Spring
2 Caliper support
3 Brake caliper
4 Brake hose
5 Brake pads
6 Screw
7 Brake disk
8 Dust boot
9 Seal boot
10 Guide sleeve
11 Bolts
12 Bolts
13 Security bolt

S10/2 Right front brake wear sensor
S10/2x1 Electrical connector Right front brake wear sensor

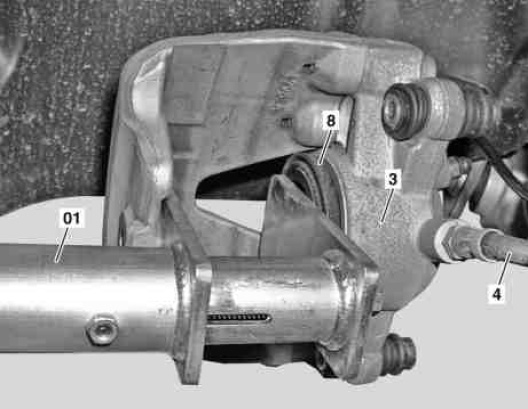

01 Pusher tool
3 Brake caliper
4 Brake hose
8 Dust boot

















000 589 52 43 00
Pusher tool
