Timing Cover

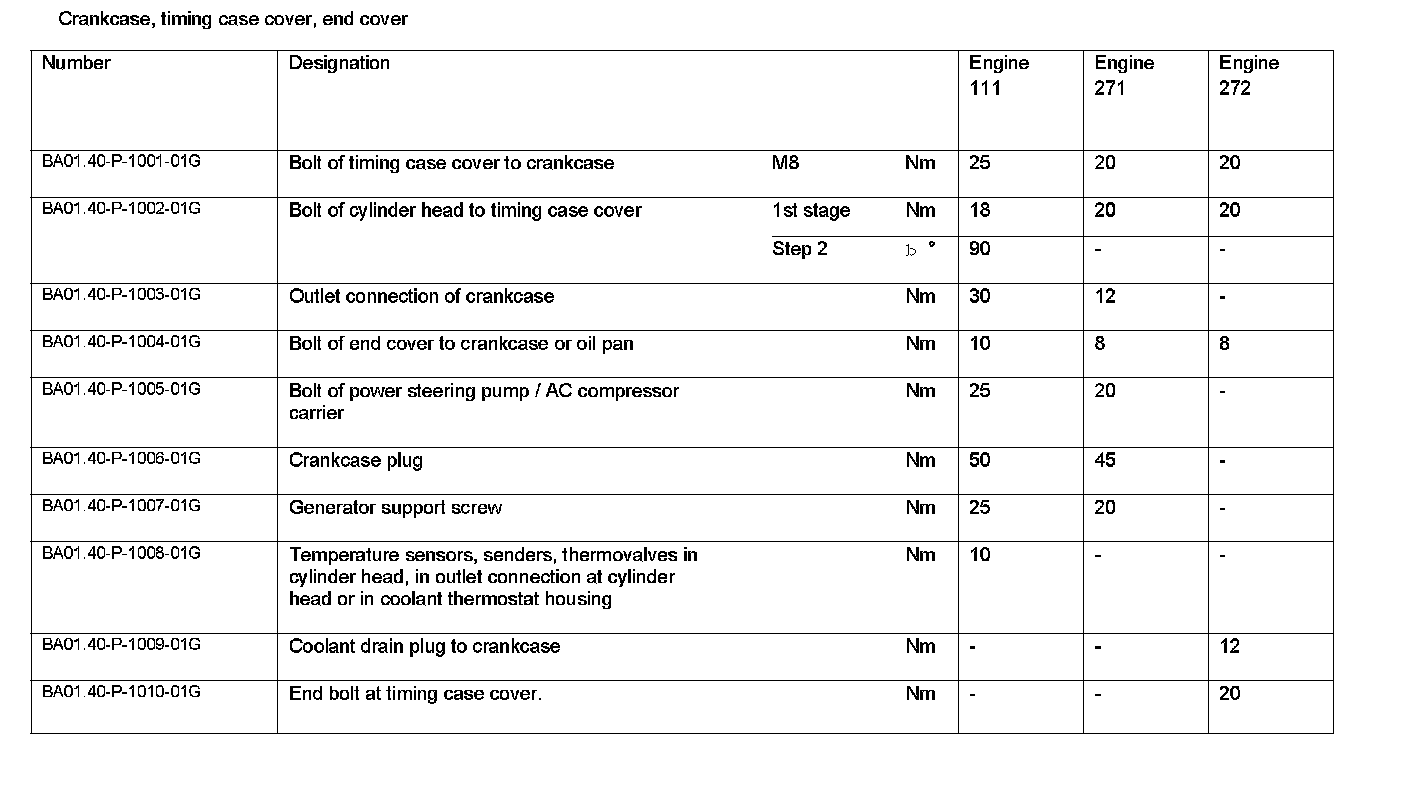

BA01.40-P-1000-01G Crankcase, Timing Case Cover, End Cover

Crankcase, Timing Case Cover, End Cover:
