Drive Belts, Mounts, Brackets and Accessories: Service and Repair



AR13.20-P-0001CV Remove/Install Components For Belt Drive

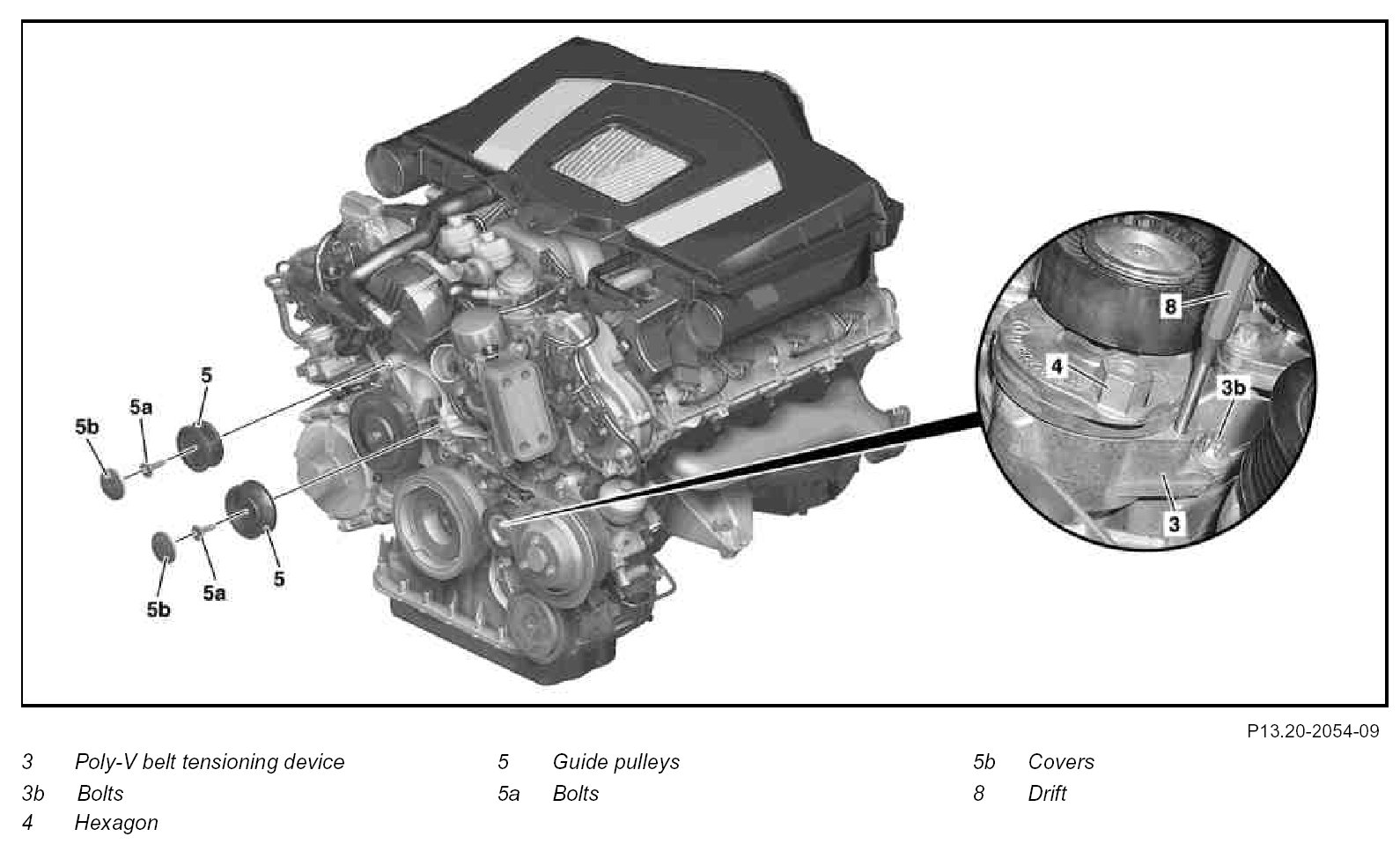

Component Identification:

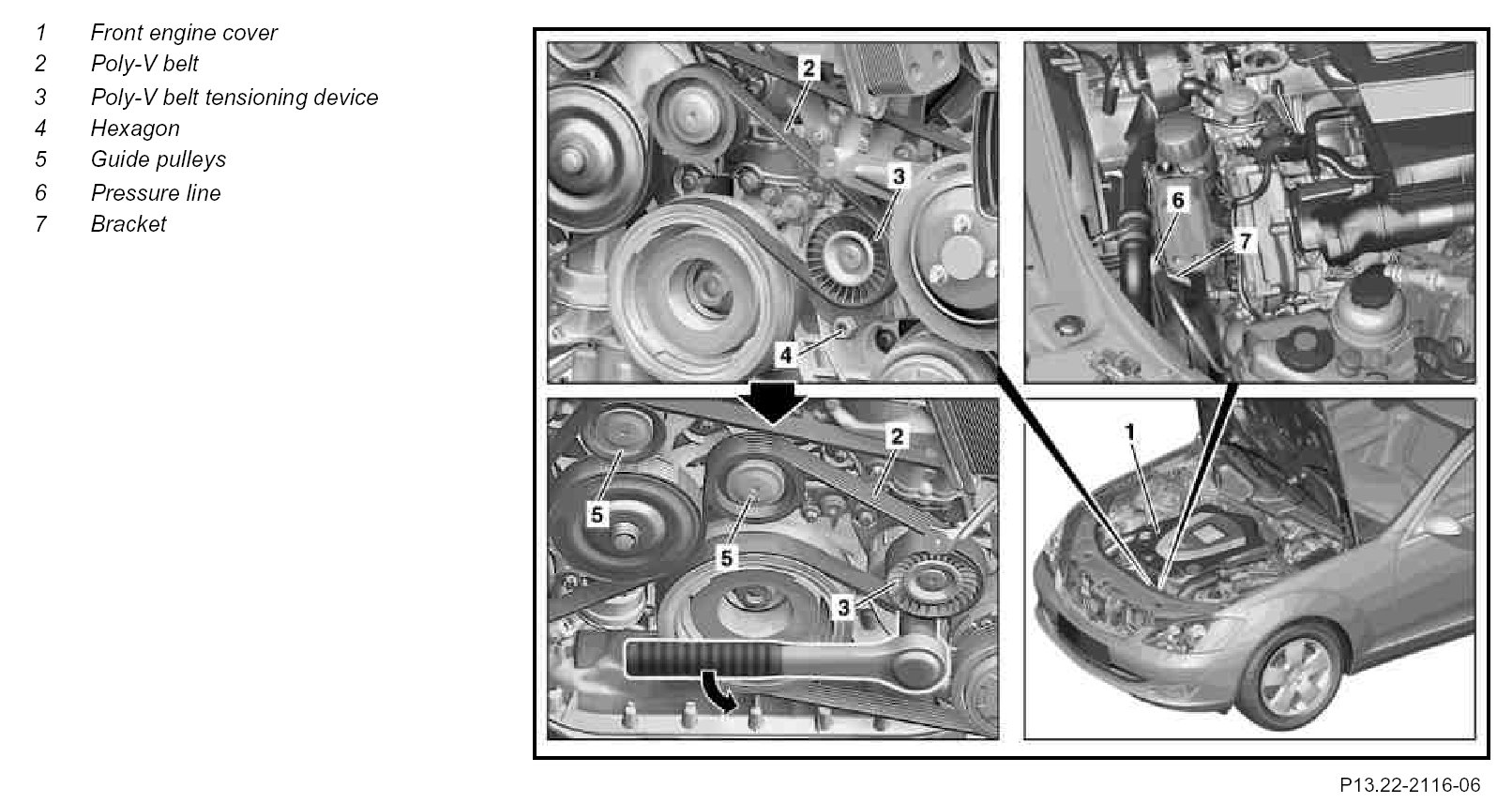

Component Identification:

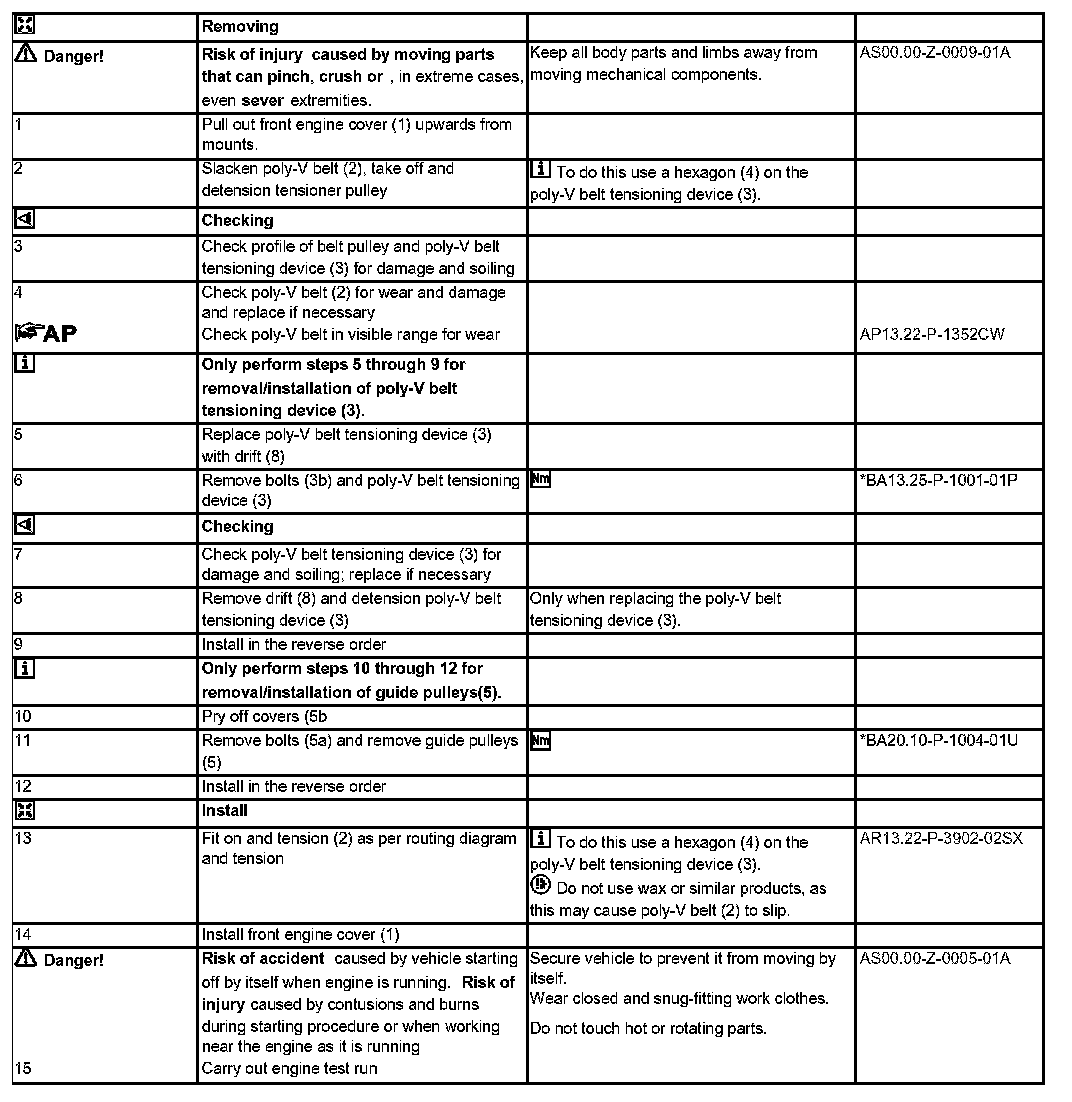

Steps 1 - 15:

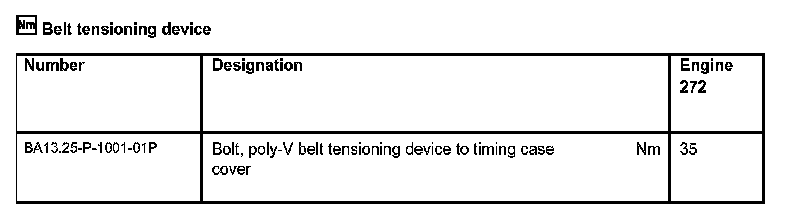

Belt Tensioning Device:

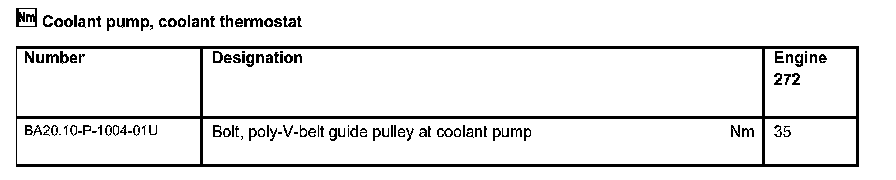

Coolant Pump, Coolant Thermostat:
