PE07.10-P-2715FAD Electrical Function Schematic For Knock Control

PE07.10-P-2715FAD Electrical Function Schematic For Knock Control

ENGINES 156 in MODEL 204.077 /277 /377

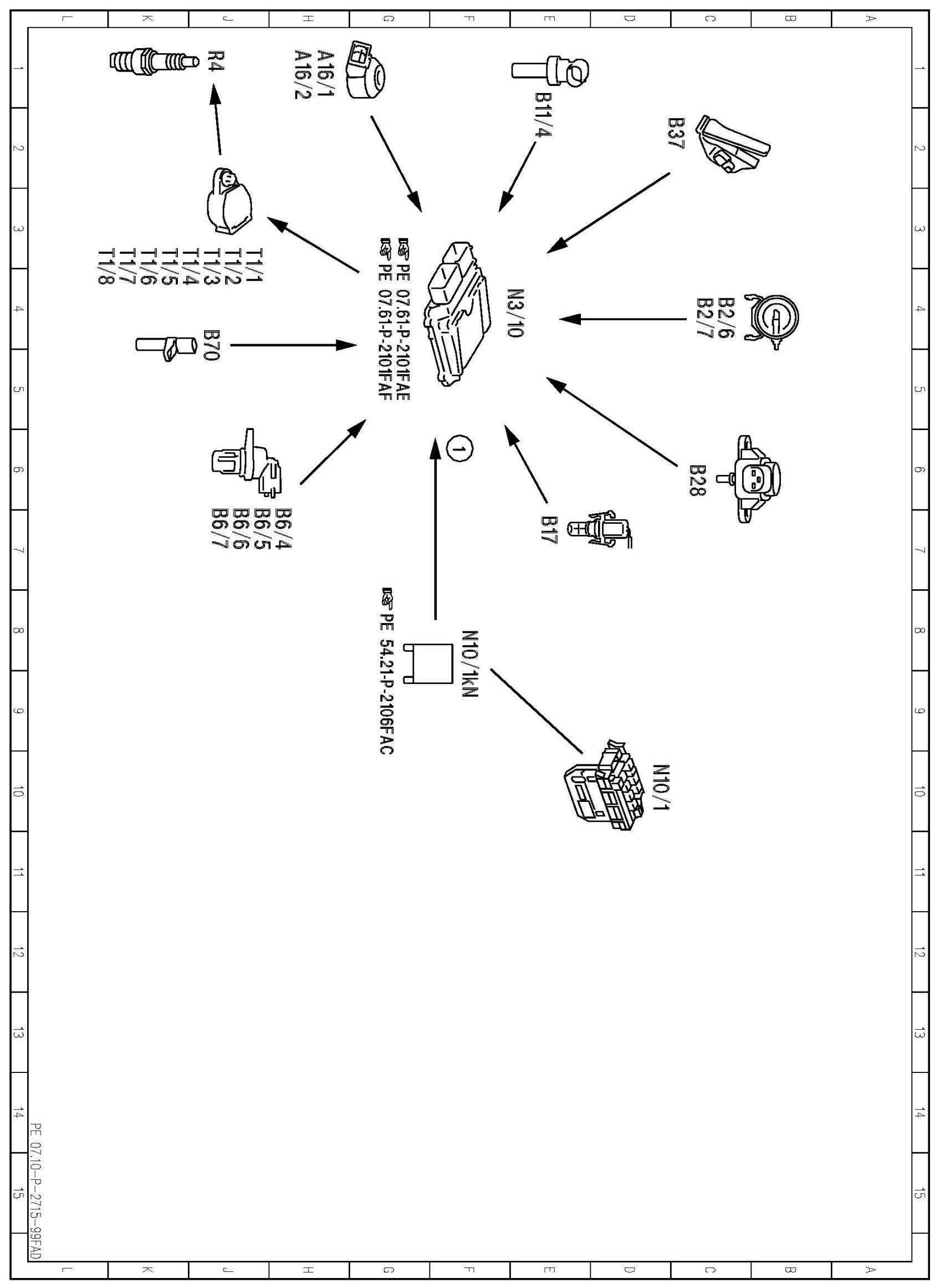

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
