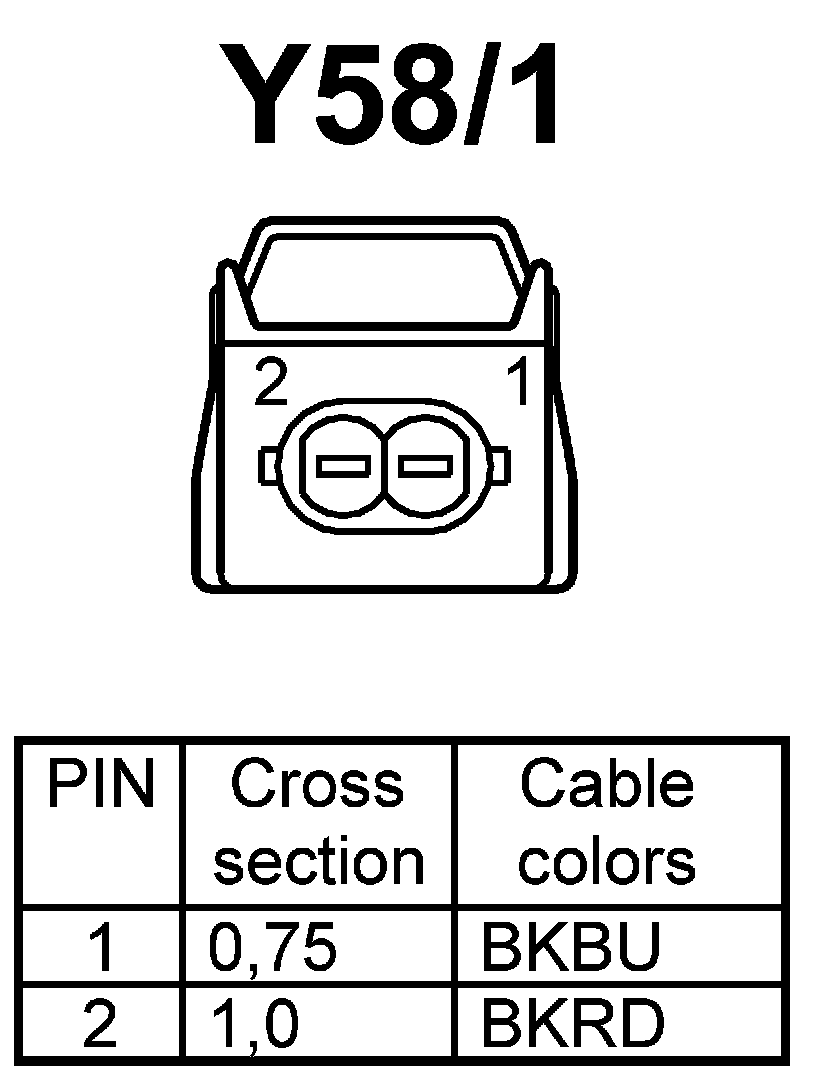

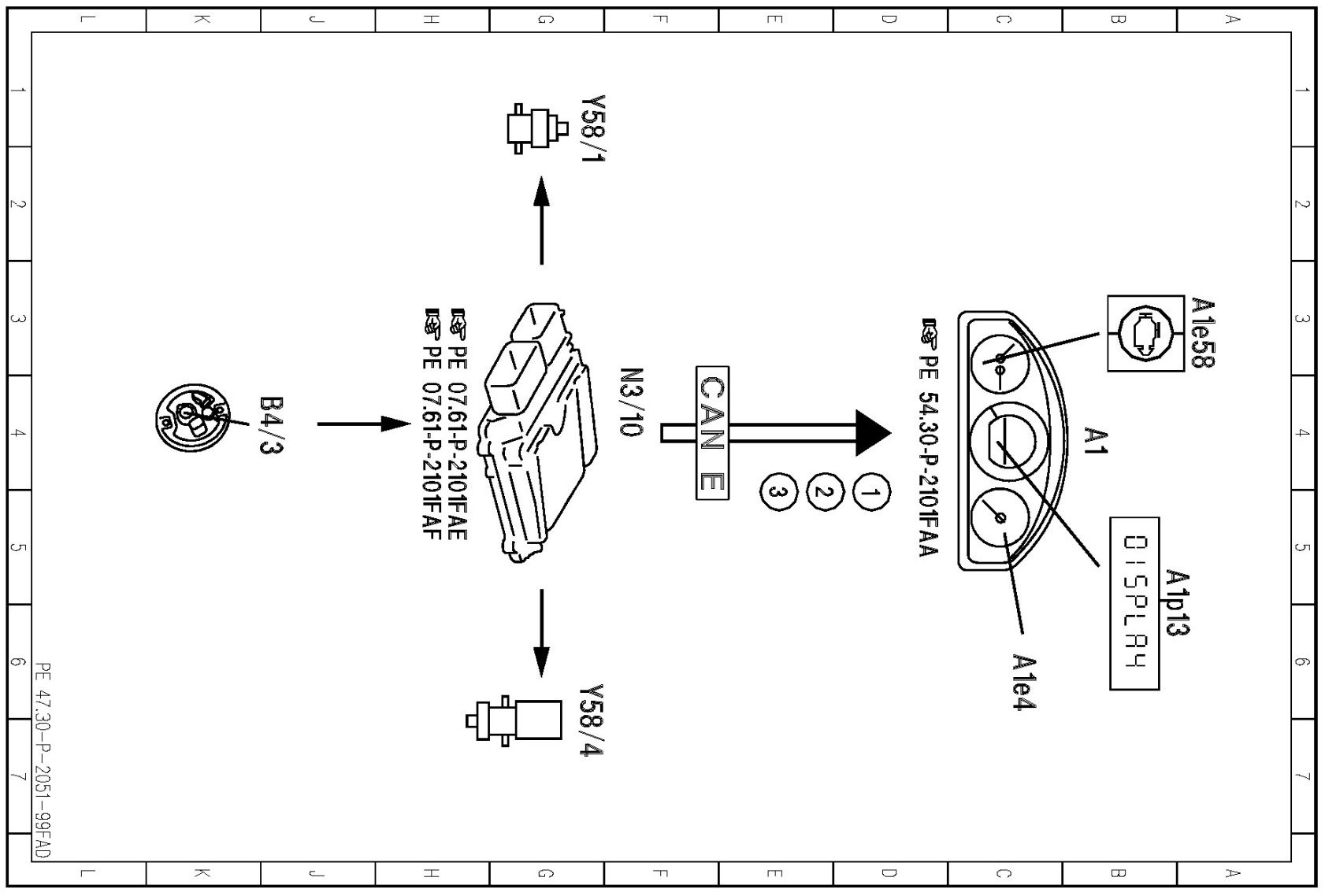

PE47.30-P-2051FAD Electrical Function Schematic For System Purging With Leak Test

PE47.30-P-2051FAD Electrical Function Schematic For System Purging With Leak Test

MODEL 204.077 /277 /377 with ENGINE 156
- as of model year 2009 /YoM 08
- with CODE (494) USA version































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
