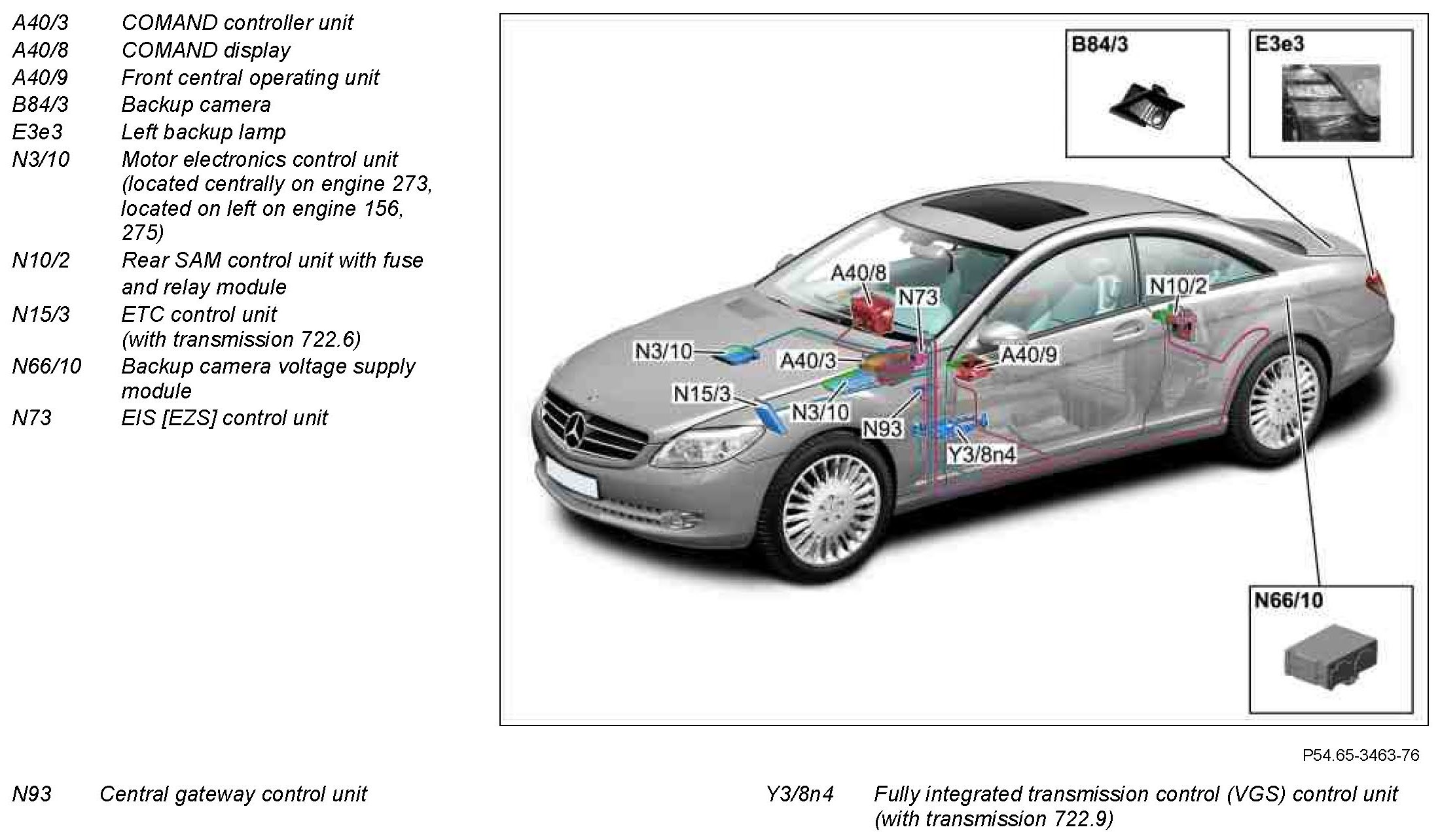

GF54.65-P-0005-01LA Backup Camera (RFK) Location of Components



GF54.65-P-0005-01LA Backup Camera (RFK) Location Of Components
- with CODE (218) Backup camera
- except CODE (498) Japan version


Component Identification:
