Access Cover: Service and Repair
AR01.10-P-2405LA Remove/install engine cover

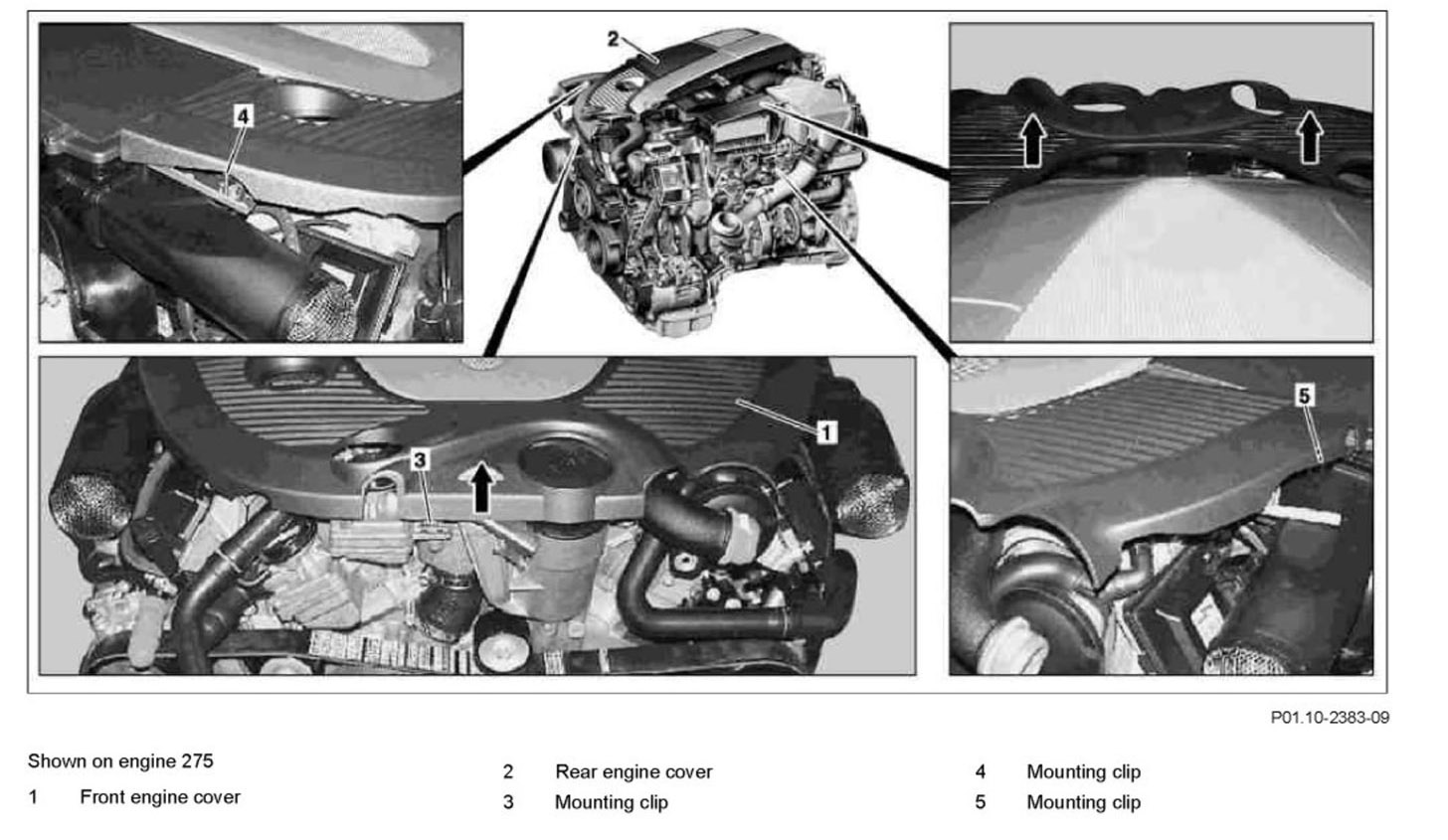

Component Identification:
Component Identification:
Component Identification:
Steps 1 - 7:
