Steering Mounted Controls Assembly: Service and Repair



AR54.21-P-2050SX Remove/Install Multifunction Steering Wheel Electronics Unit

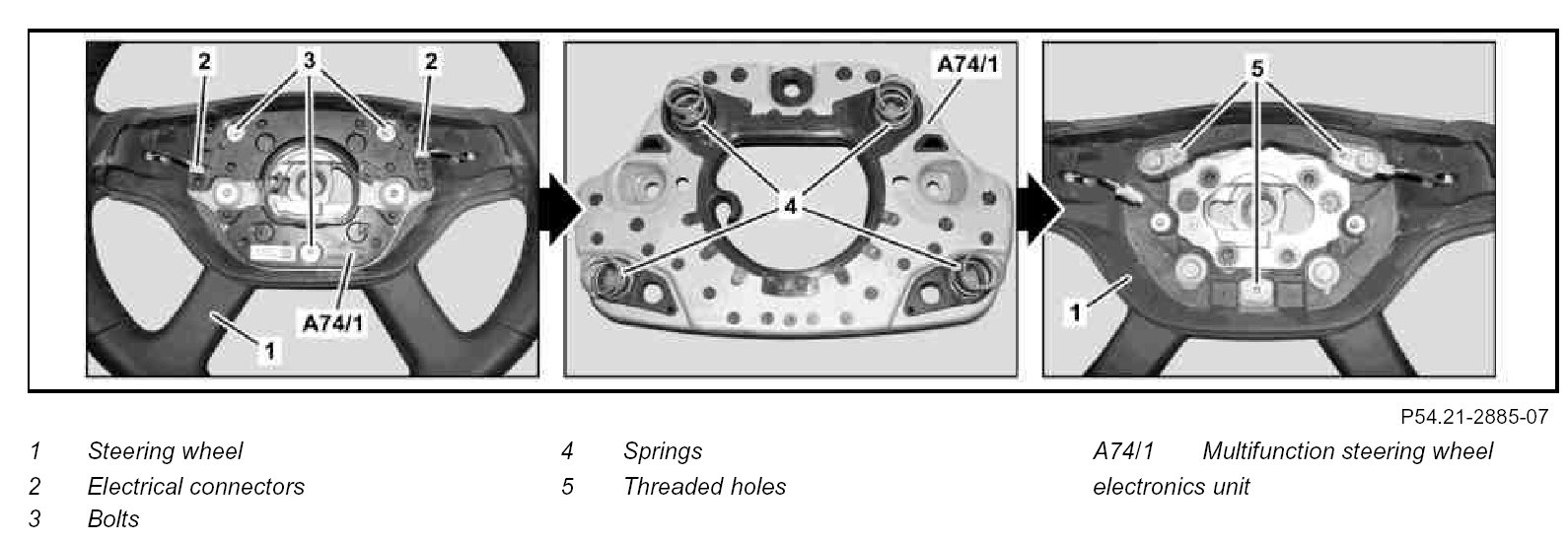

Component Identification:

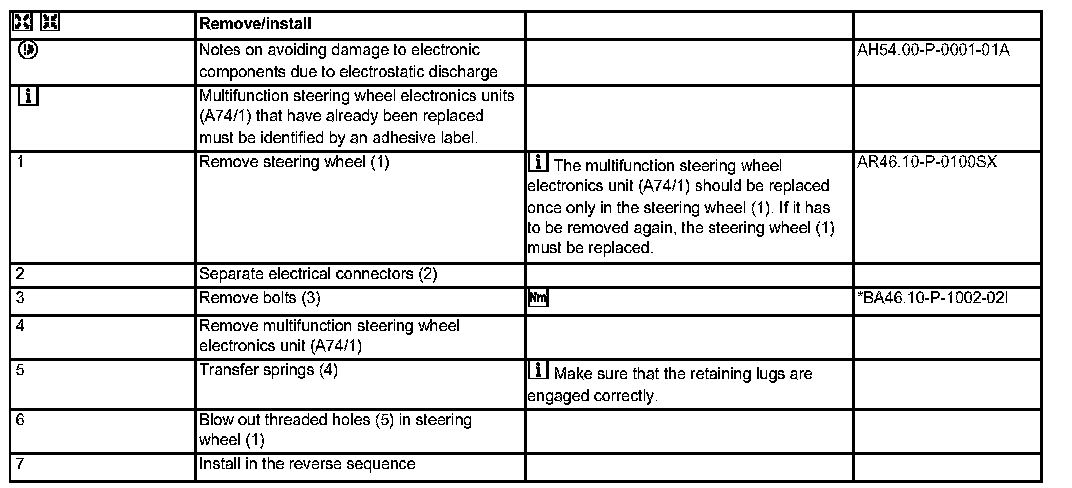

Steps 1 - 7:

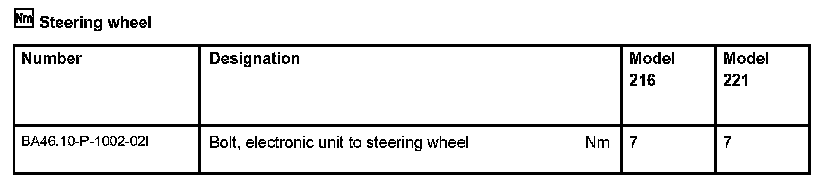

Steering Wheel:
