GF91.30-P-0003-02LA Seat Heater (SIH) Location of Components



GF91.30-P-0003-02LA Seat Heater (SIH) Location Of Components
- with CODE (873) Heated left and right front seats

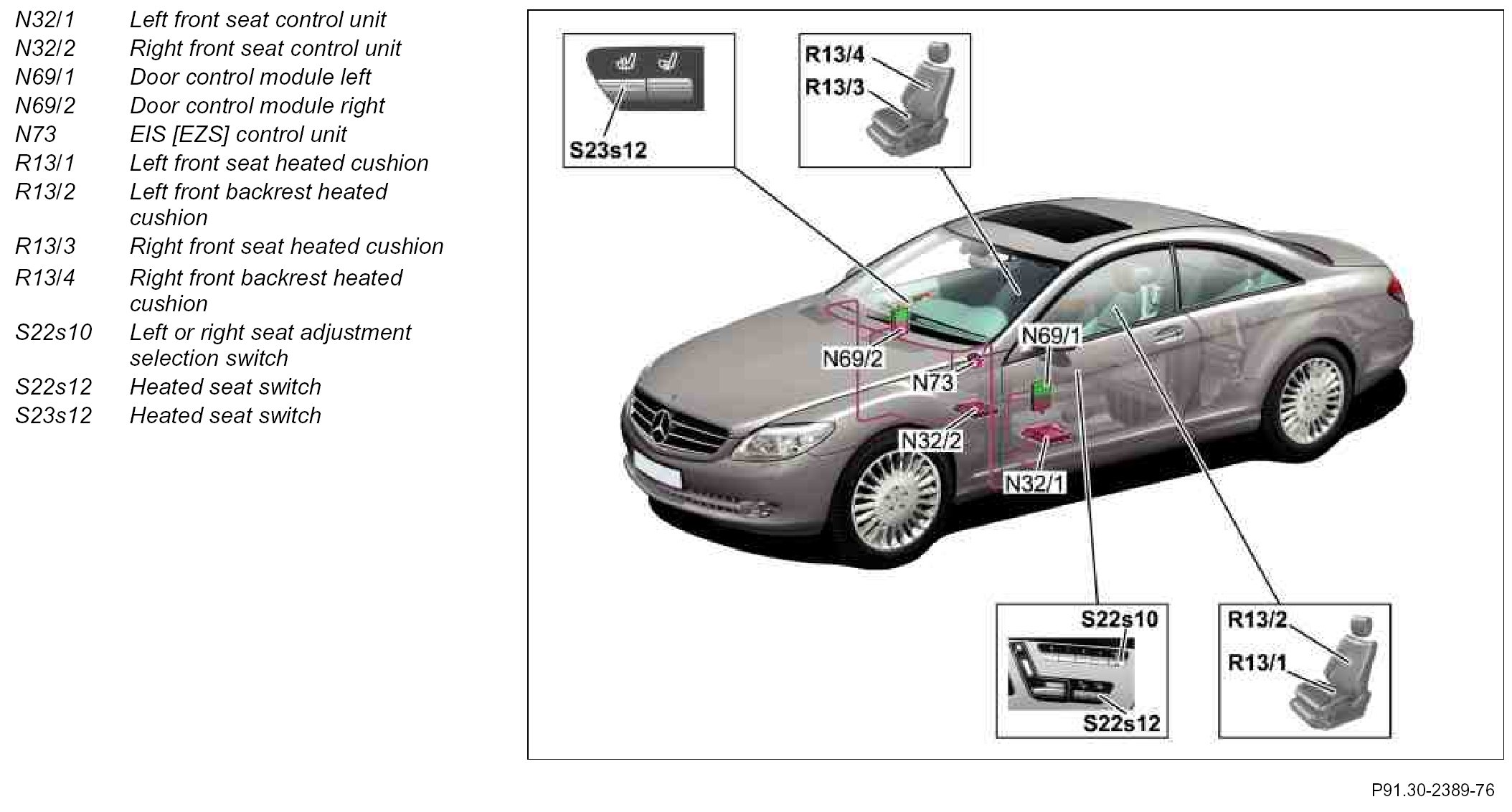

Component Identification:
