Blower Motor: Service and Repair
AR83.10-P-1100SX Remove/Install Front
Blower Motor

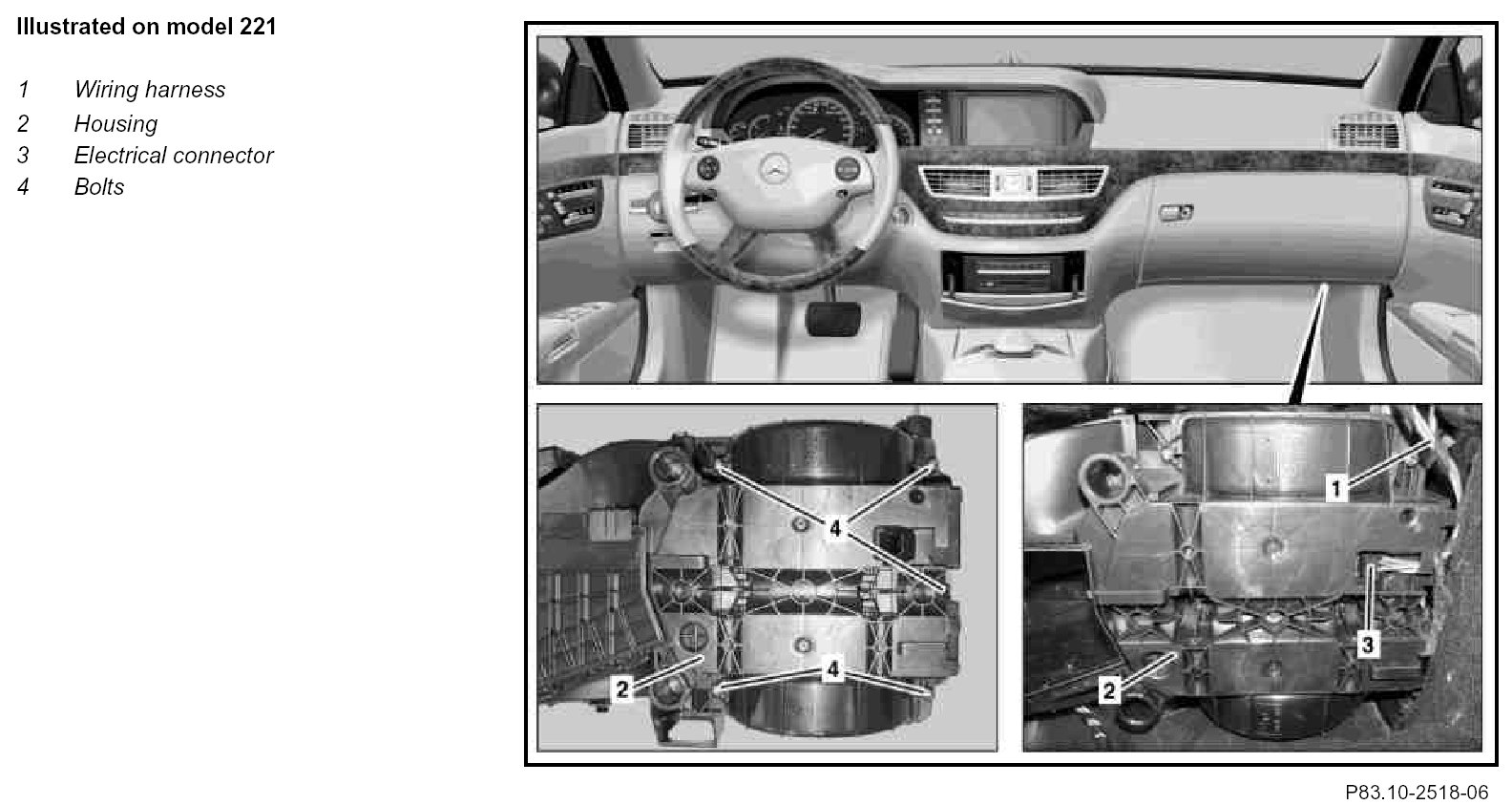

Component Identification:
Component Identification:

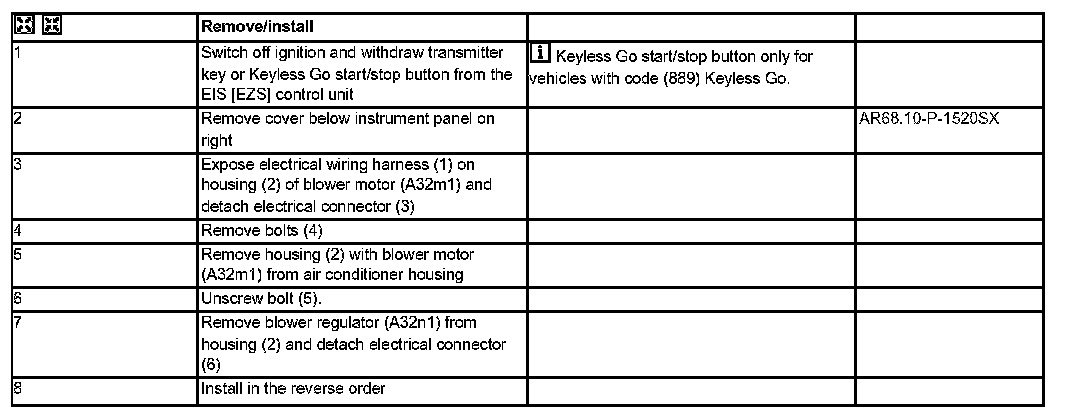

Steps 1 - 8:
