Body - Gap Forms Between Door Shell And Lining On Lock Side
Gap forming between door shell and door liningTopic number LI72.00-P-053635
Version 1
Design group 72.00 General
Date 06-07-2012
Validity CLS (218.3) as of VIN end no. 011427
Reason for change
Complaint:
On the driver/rear door a gap can form between the door shell and the door lining on the lock side.
Cause:
Clamping forces of the mounting clips are insufficient.
Remedy:
1. Detach door lining.
2. Replace mounting clip(s)

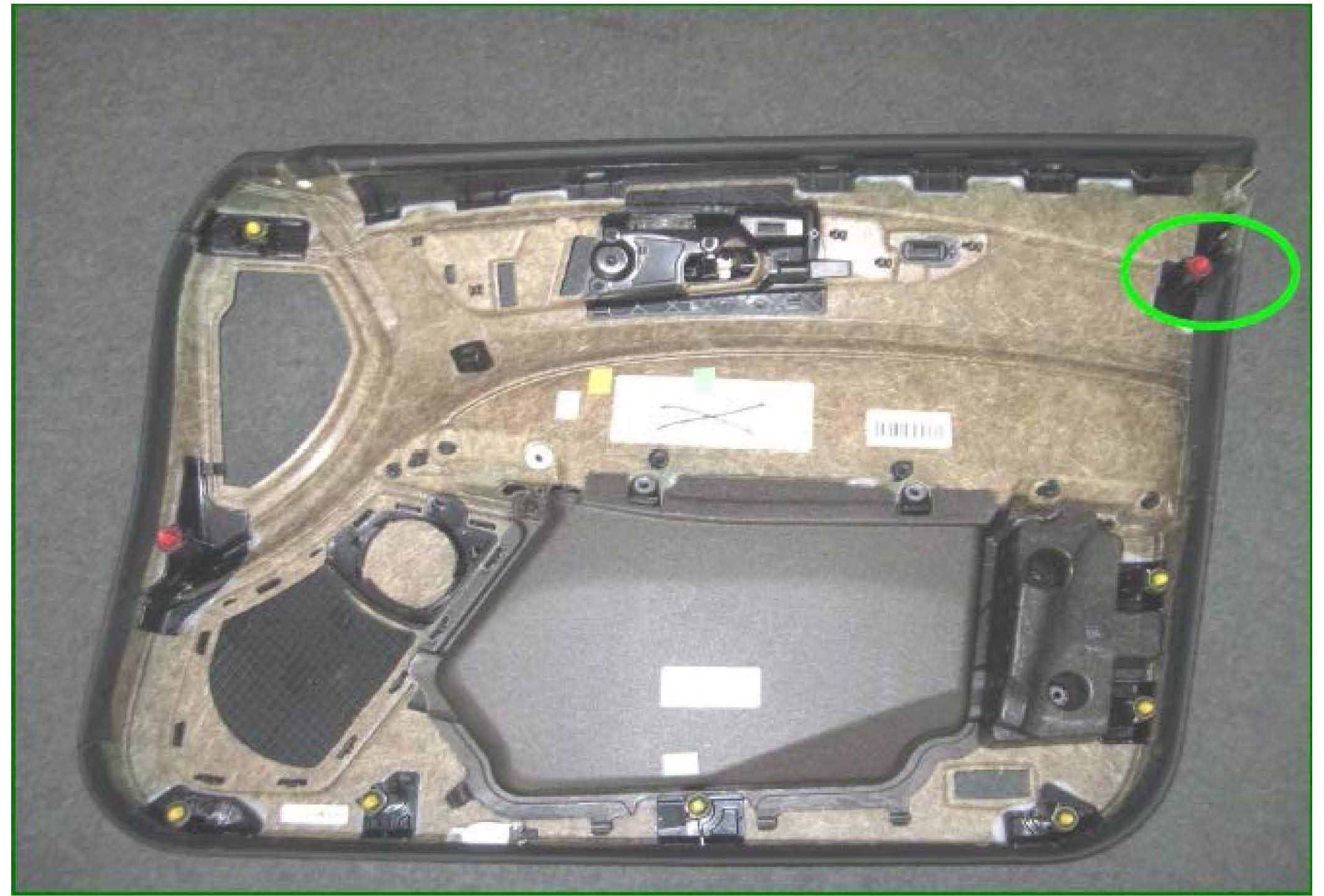

A. Driver door: Replace mounting clip, see marking in Figure 1, with a new mounting clip.
B. Rear door: Replace mounting clips, see marking in Figure 2, with two new mounting clips.
Note:
Avoid disconnecting the electrical components.
3. Reinstall door lining.
Attachments

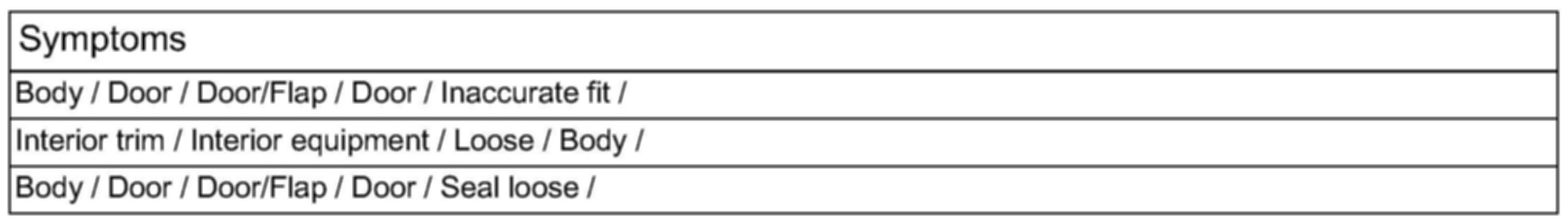

Symptoms
Parts
WIS-References
Attachments
Driver Door
Rear door
