Heater Core: Service and Repair
AR83.25-P-1100CW Remove And Install Heat Exchanger

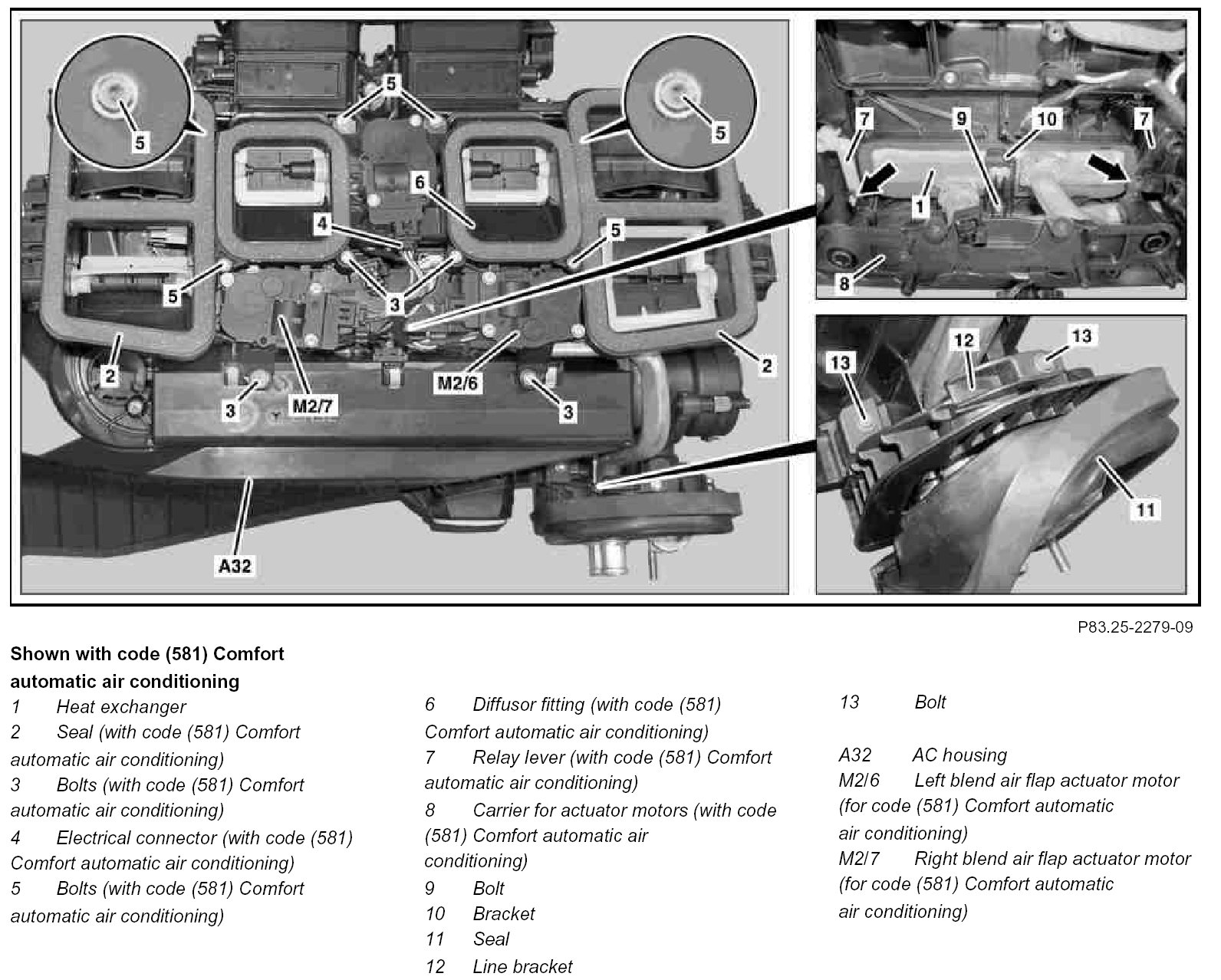

Component Identification:

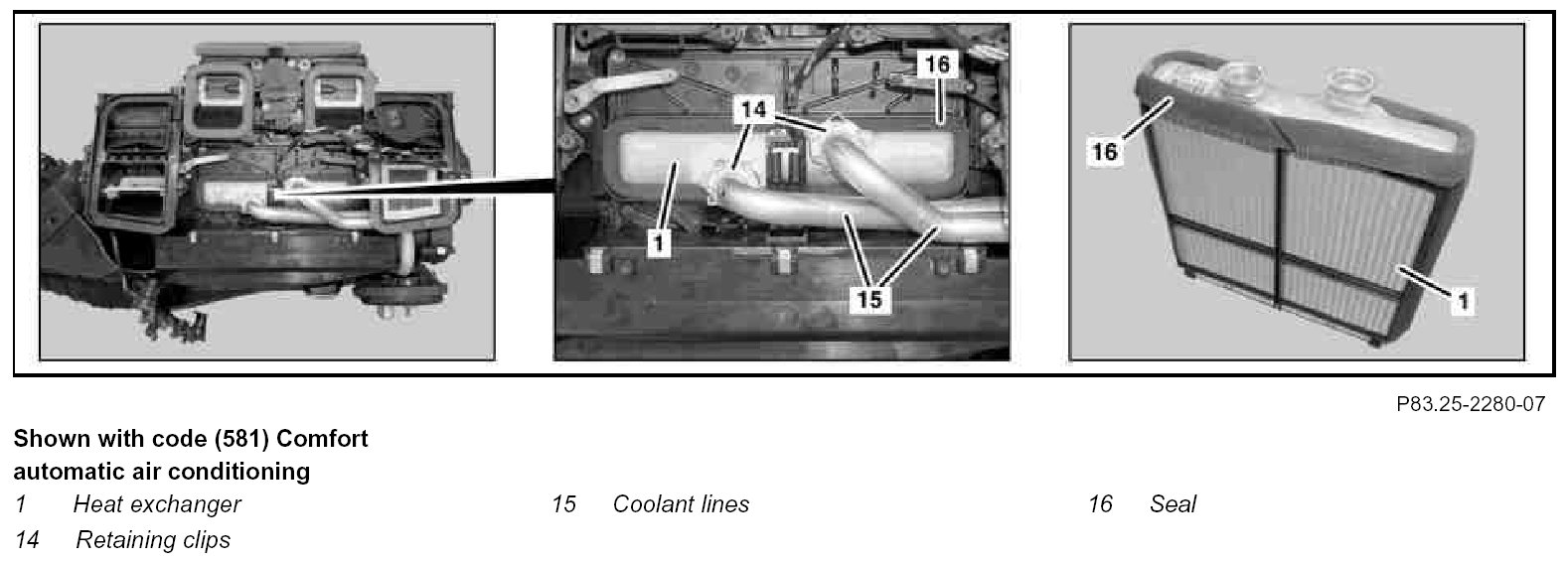

Component Identification:

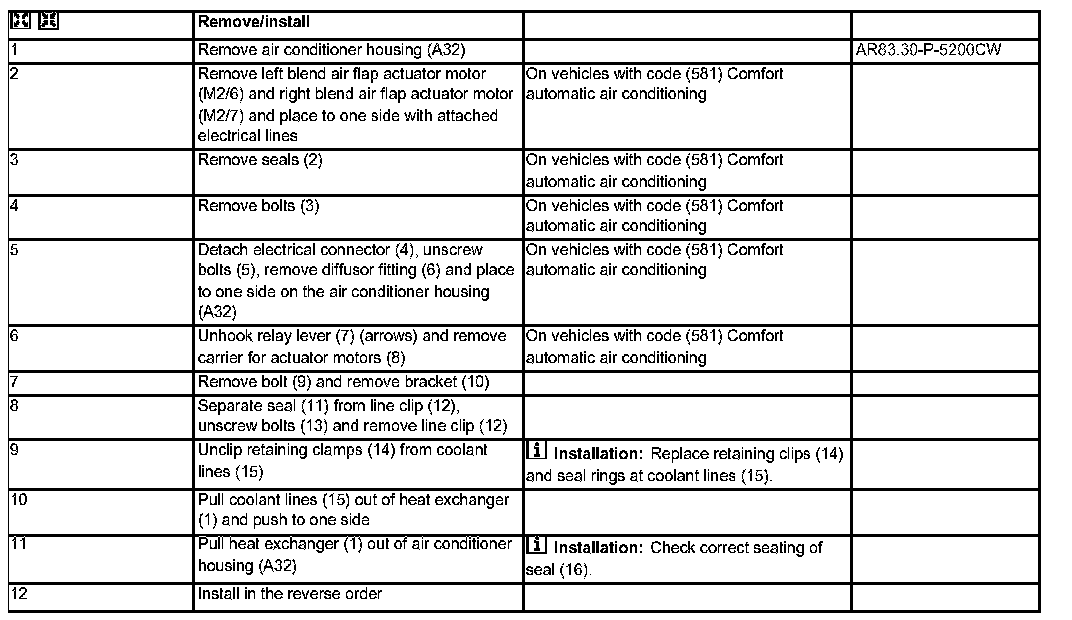

Steps 1 - 12:
