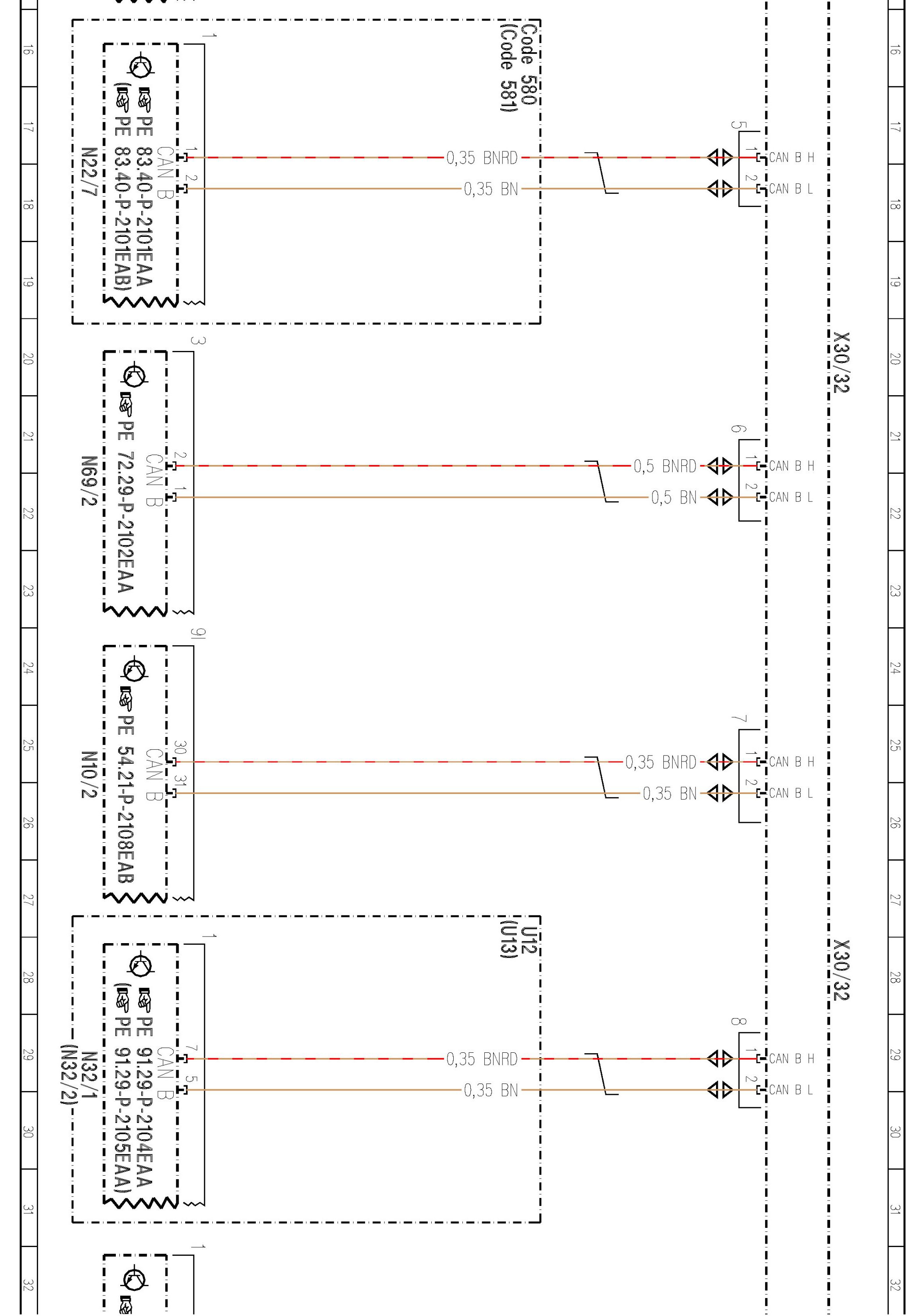

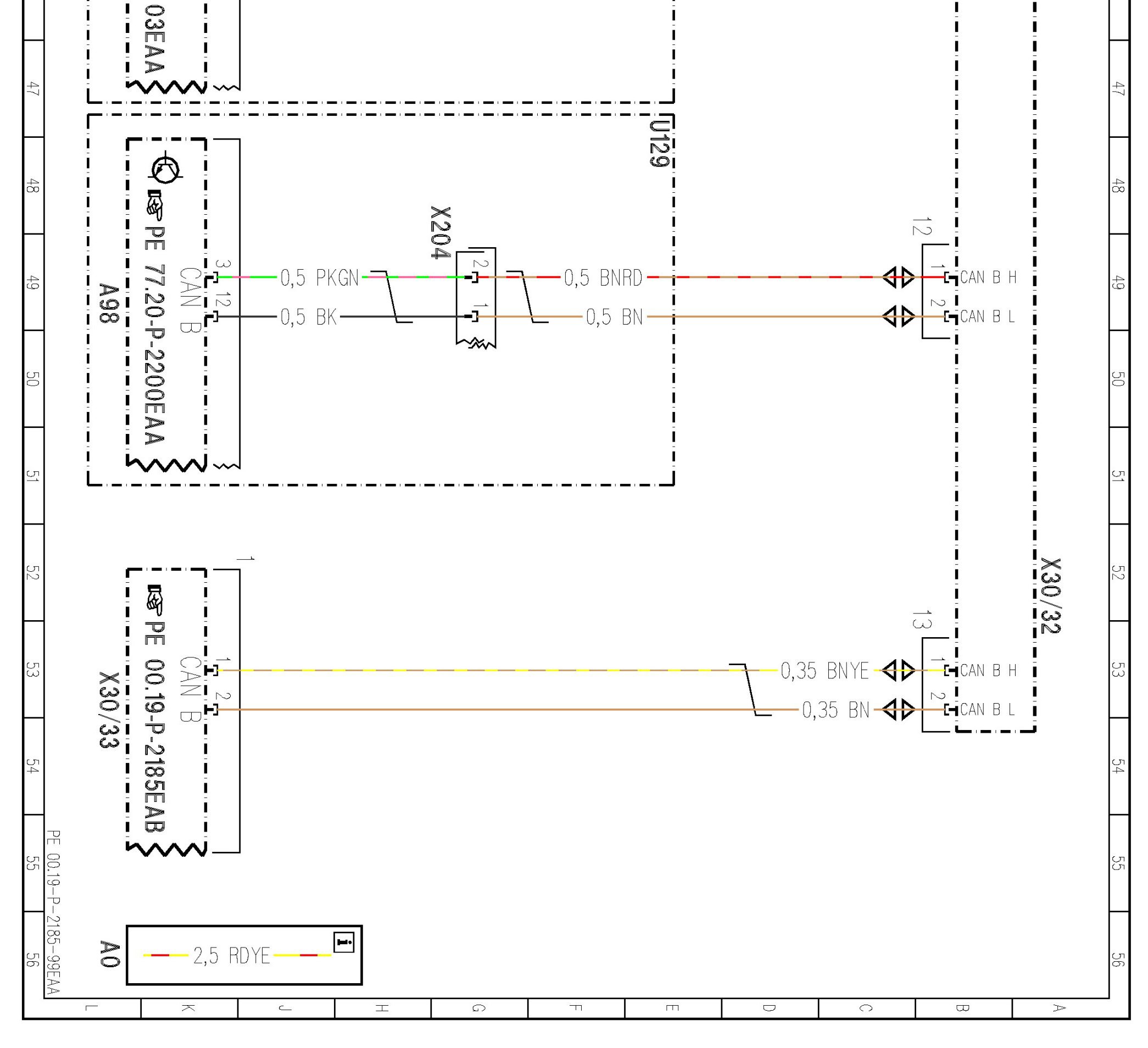

PE00.19-P-2185EAA Interior CAN



PE00.19-P-2185EAA Interior CAN

MODEL 207

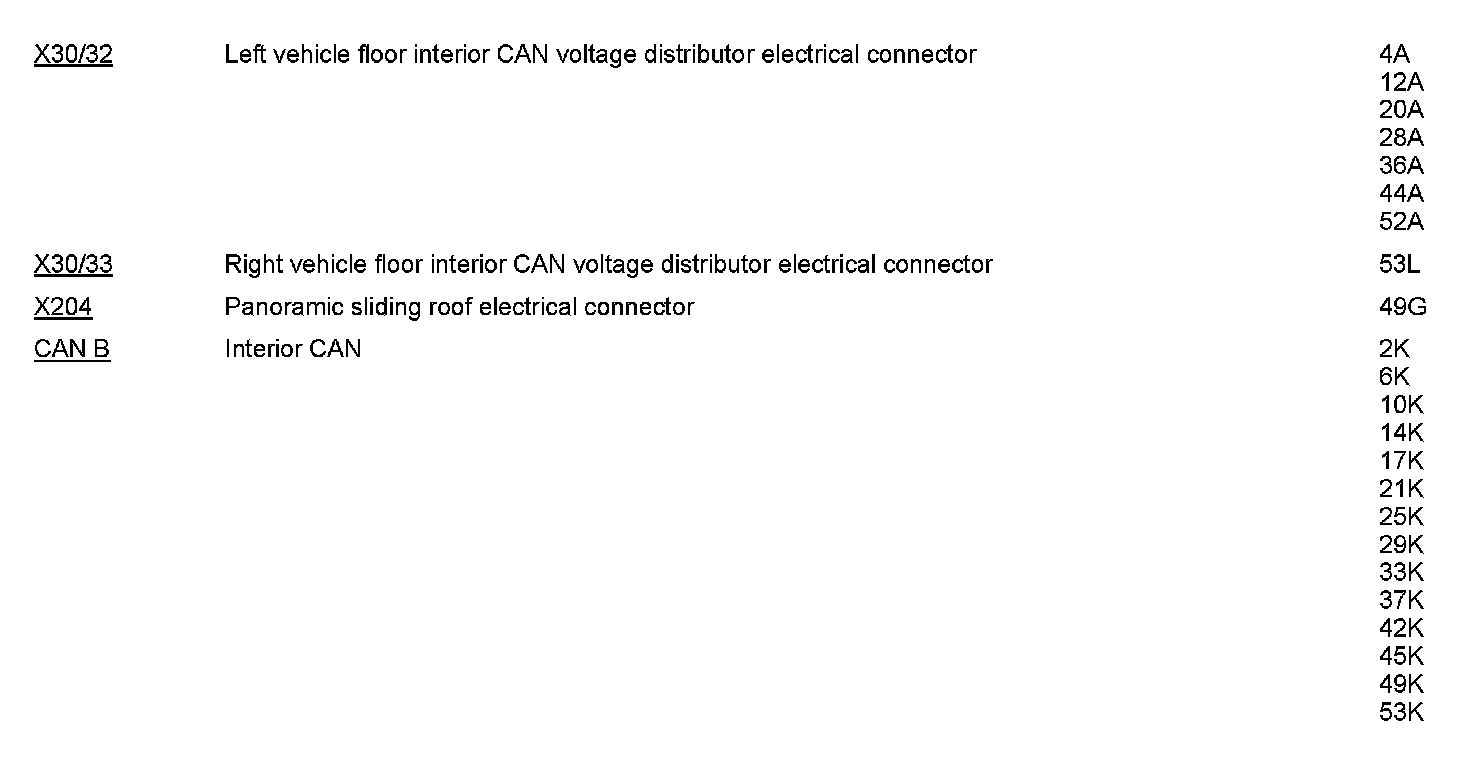

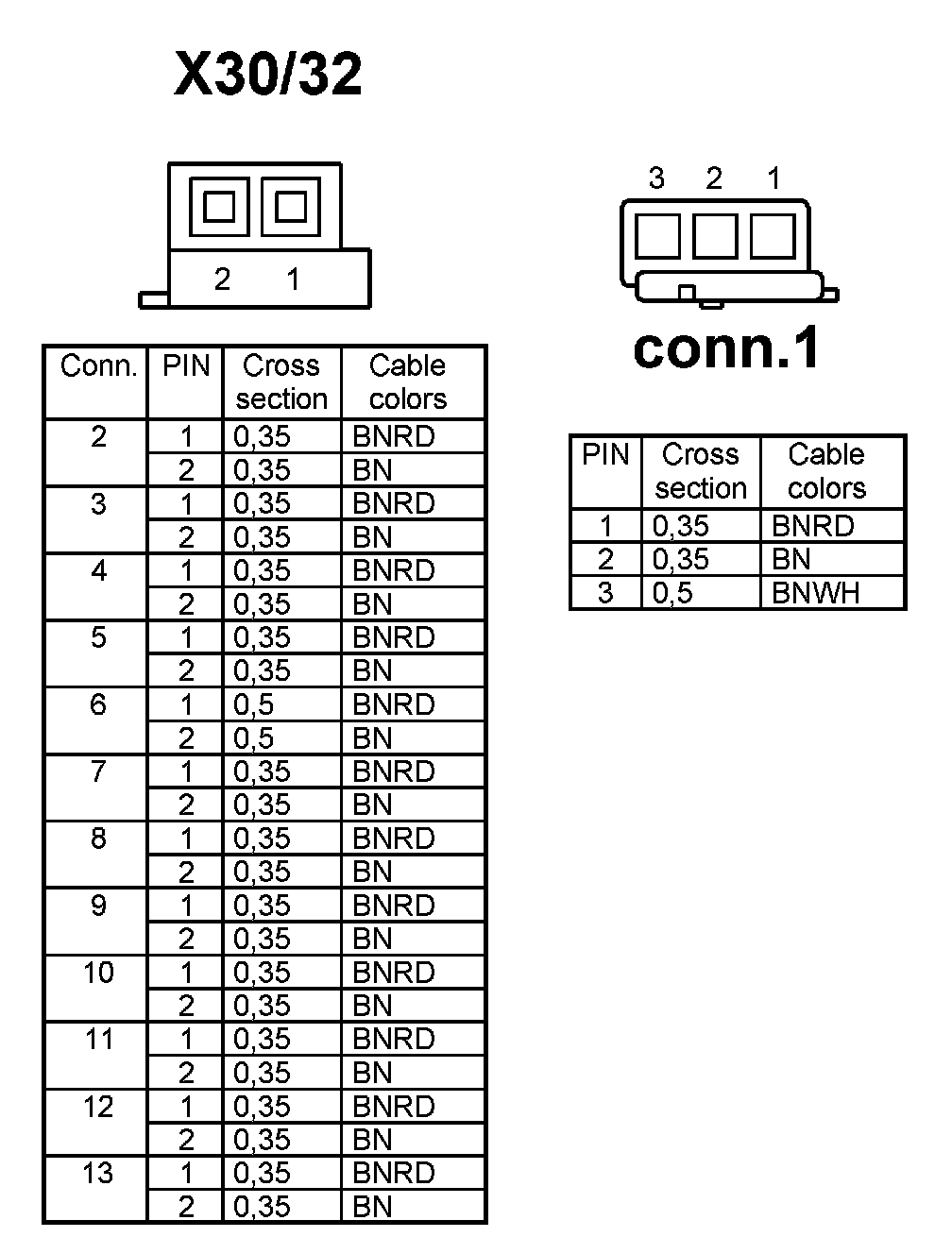

- Potential distributor X30/32






















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
