Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
E 550 Coupe (207.373) V8-4.6L Turbo (278.922)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Strut / Shock Absorber
>>
Service and Repair
>>
Overhaul
Overhaul
AR32.25-P-1018CW Disassemble/assemble
suspension
strut
Component Identification:

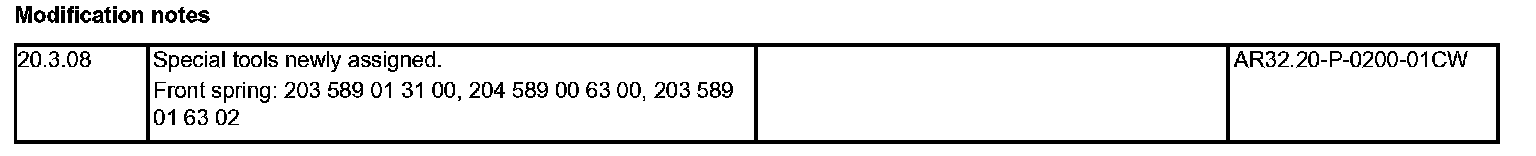

Modification notes:

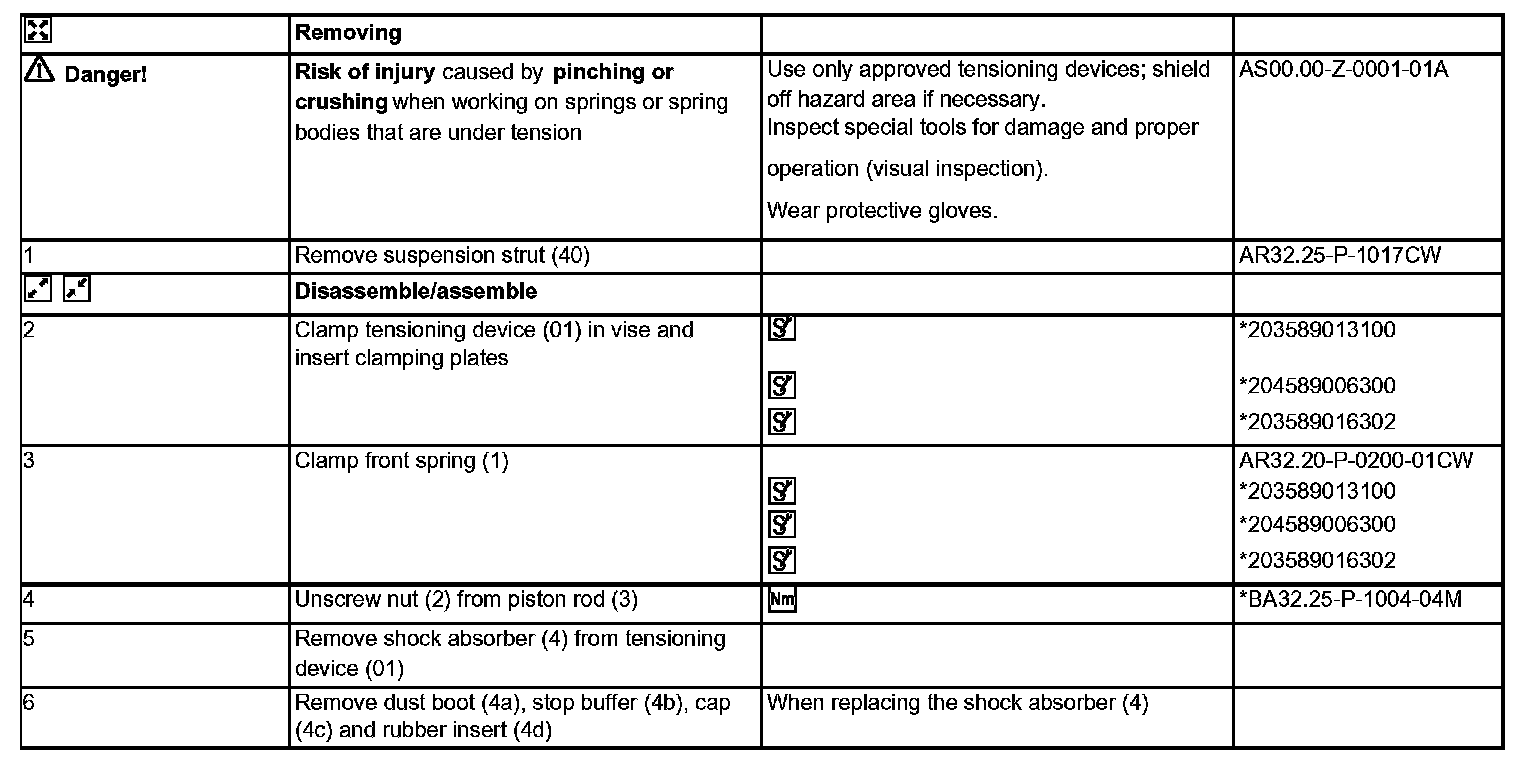

Steps 1-6:

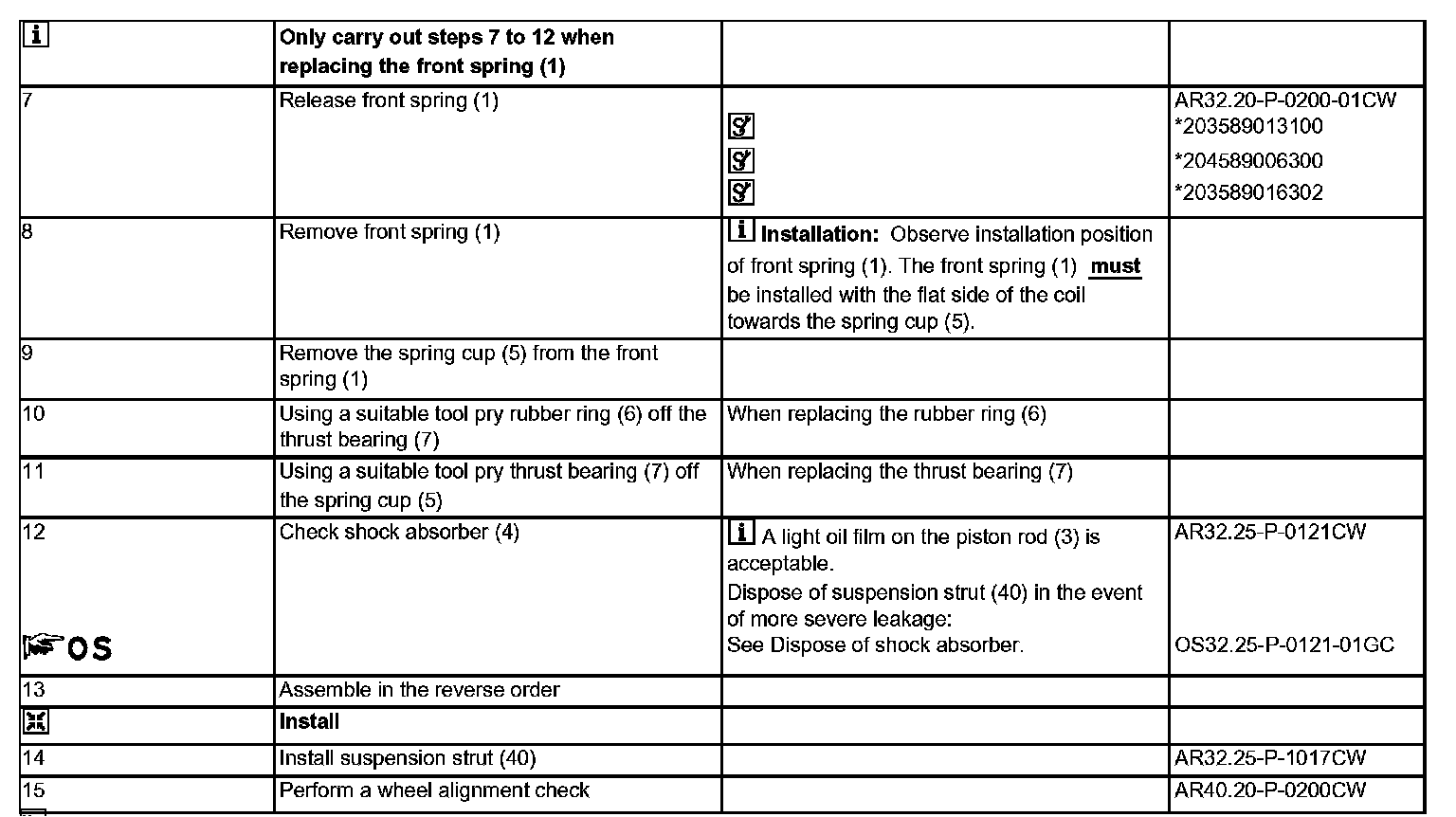

Steps 7-15:

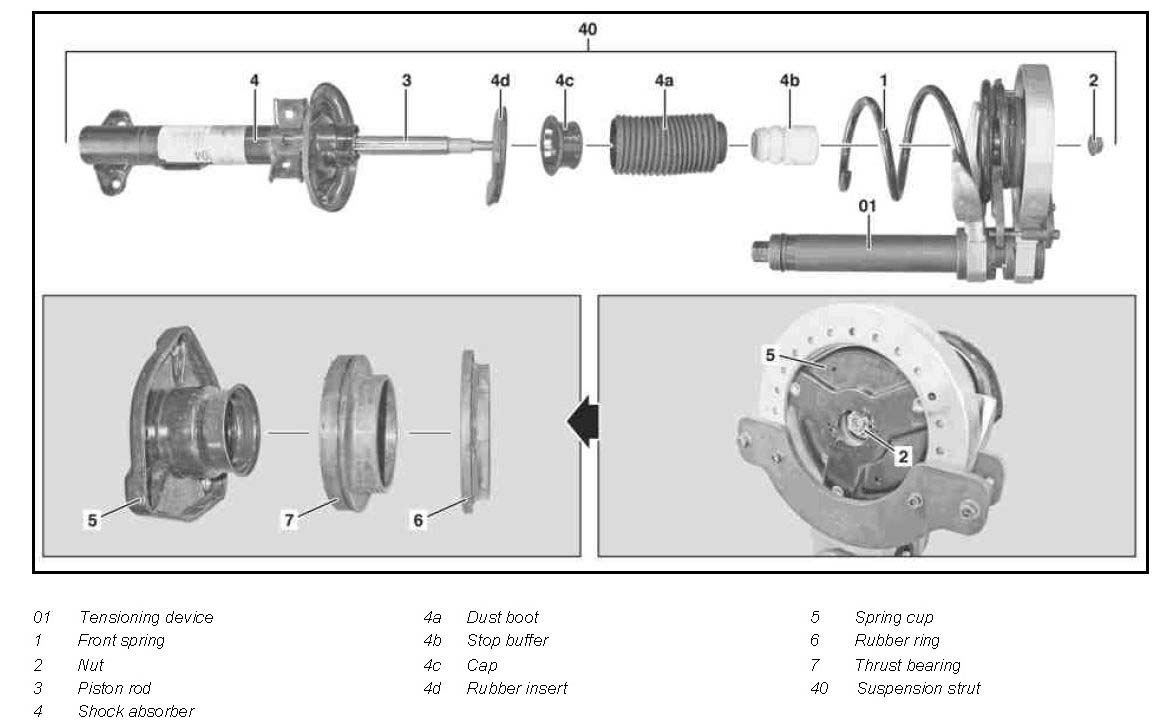

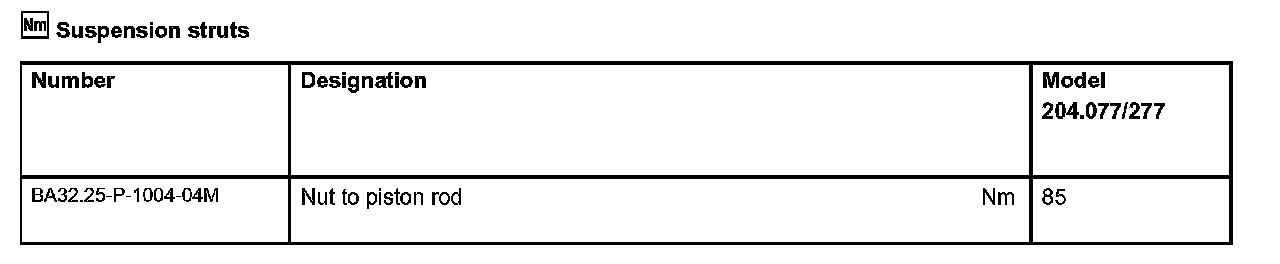

Suspension struts:

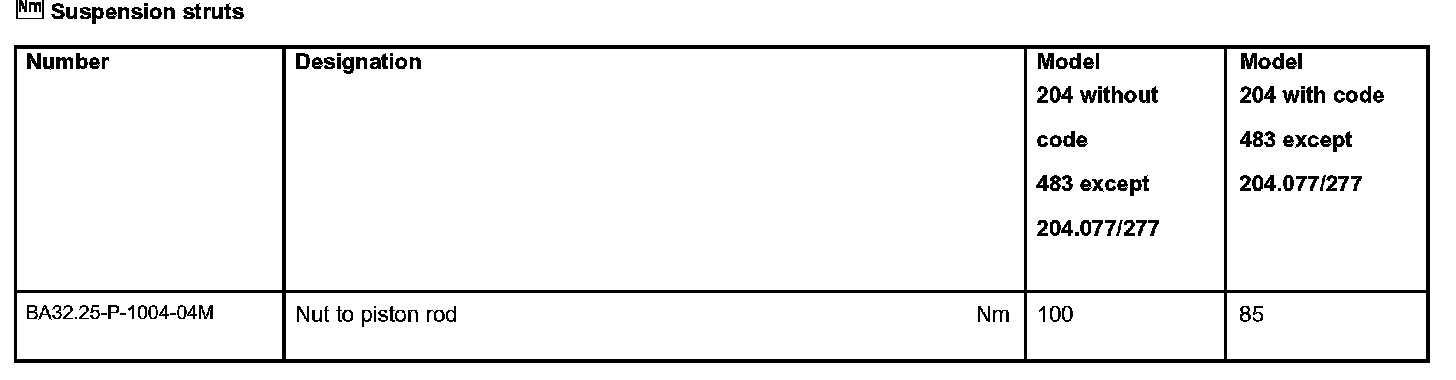

Suspension struts:
Special Tools:
