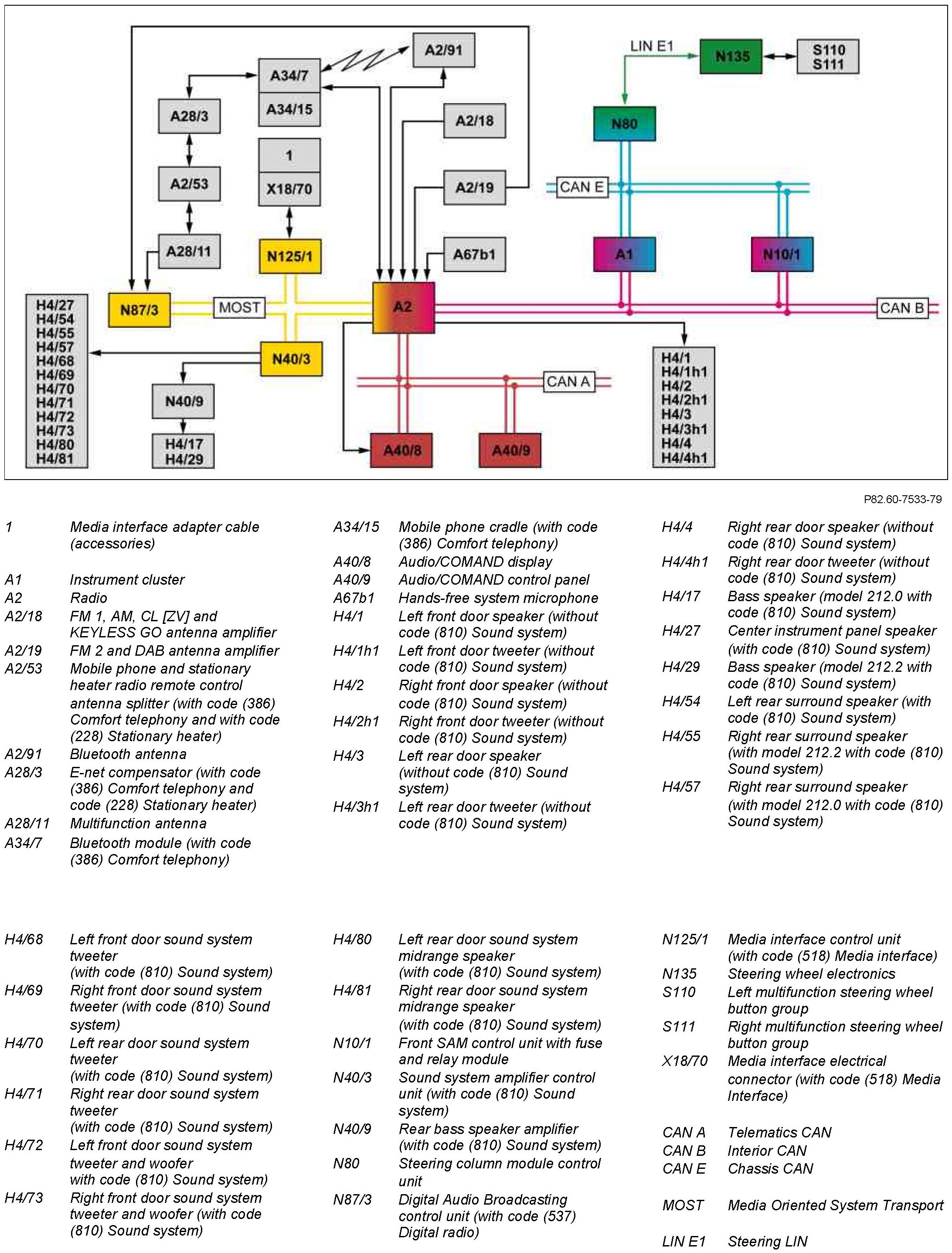

GF82.60-P-0004-02FL Audio System, Block Diagram



GF82.60-P-0004-02FL Audio System, Block Diagram
- with CODE (510) Audio 20 with CD changer



Component Identification:
