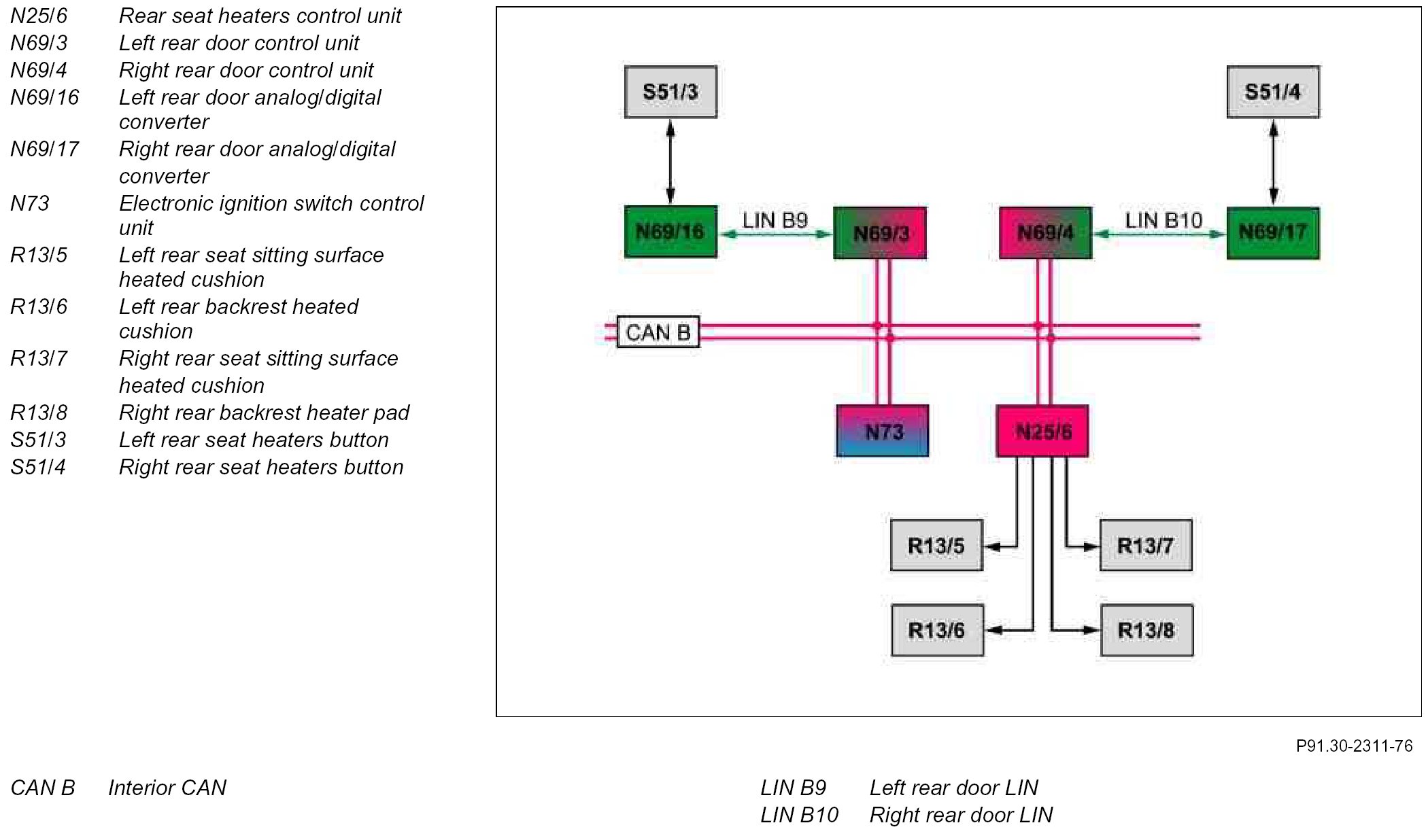

GF91.30-P-0003-03FLA Seat Heater (SIH) Block Diagram



GF91.30-P-0003-03FLA Seat Heater (SIH) Block Diagram
- with CODE (872) Electrically heated left and right rear seats

Component Identification:
