Integrated Accessory Switch Assembly: Service and Repair
AR54.25-P-1000SX Remove/Install Cockpit Switch Group

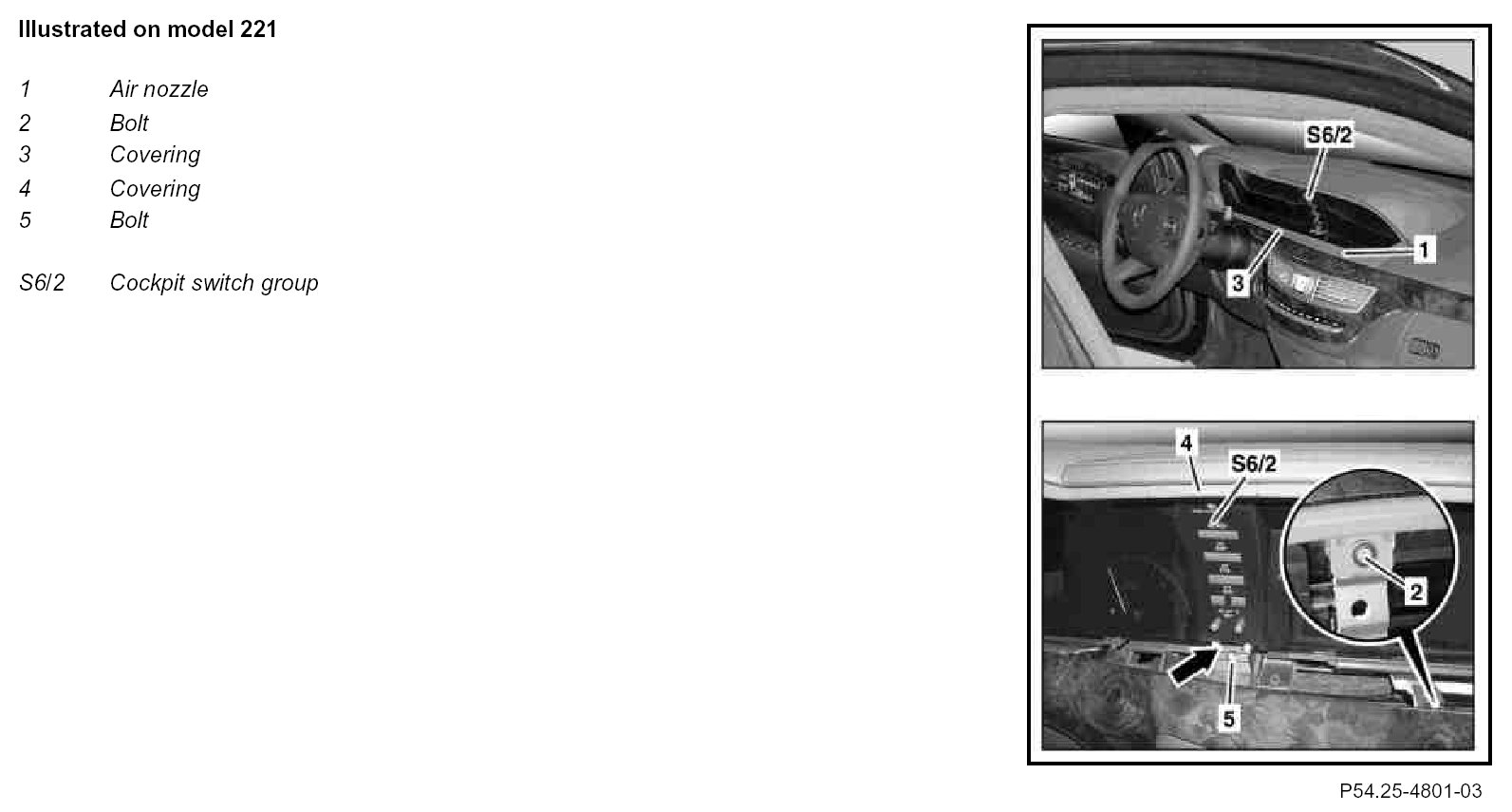

Component Identification:

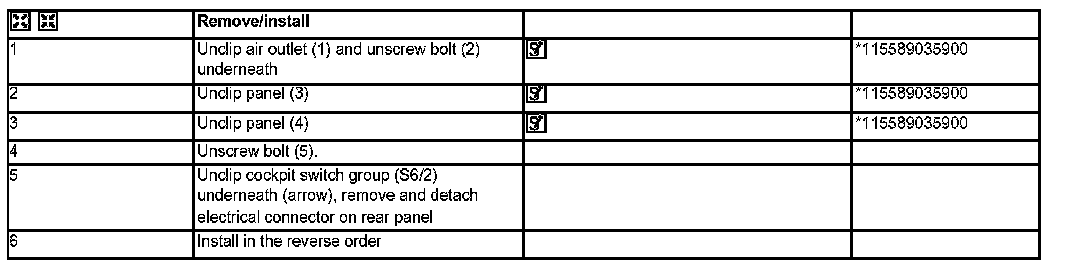

Steps 1 - 6:
Special Tools:
