Climate Control Exhaust Gas Sensor: Service and Repair



AR83.40-P-6730SX Remove And Install Multifunction Sensor

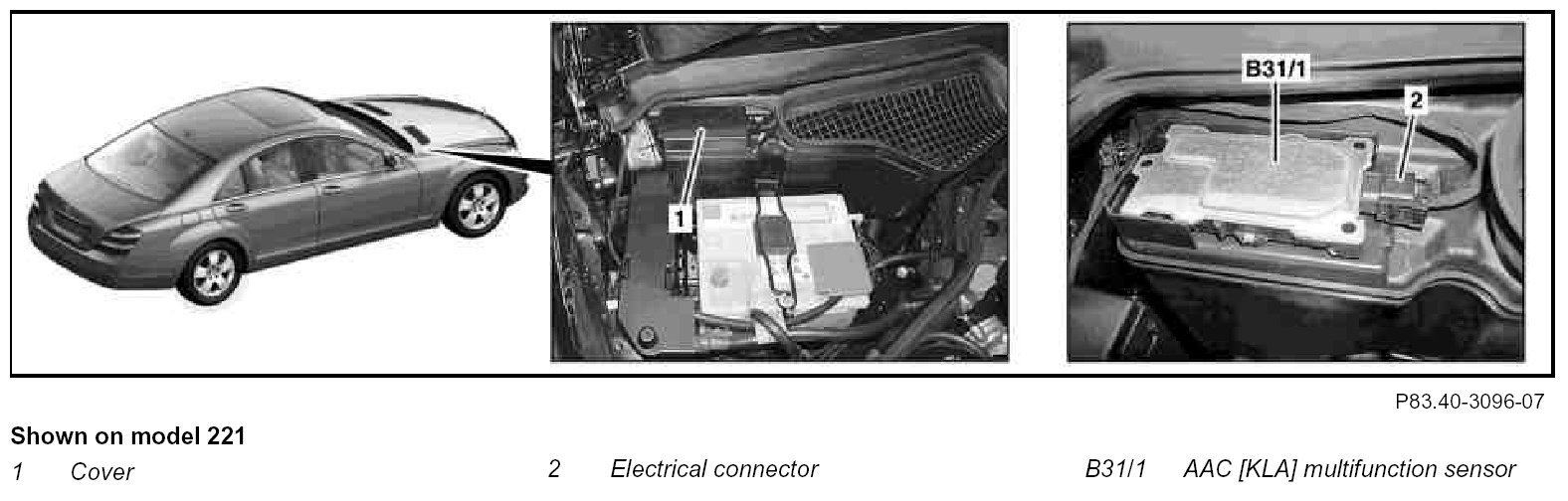

Component Identification:

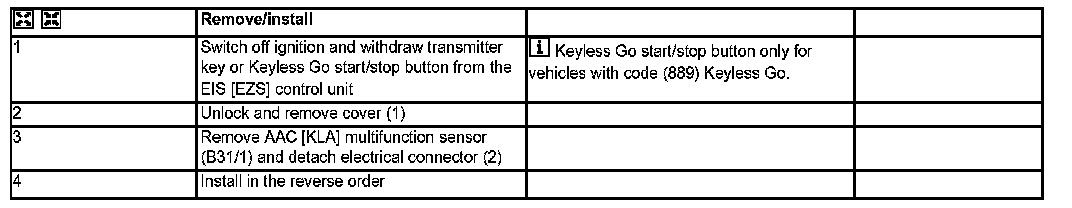

Steps 1 - 4:
