Electrical Diagrams

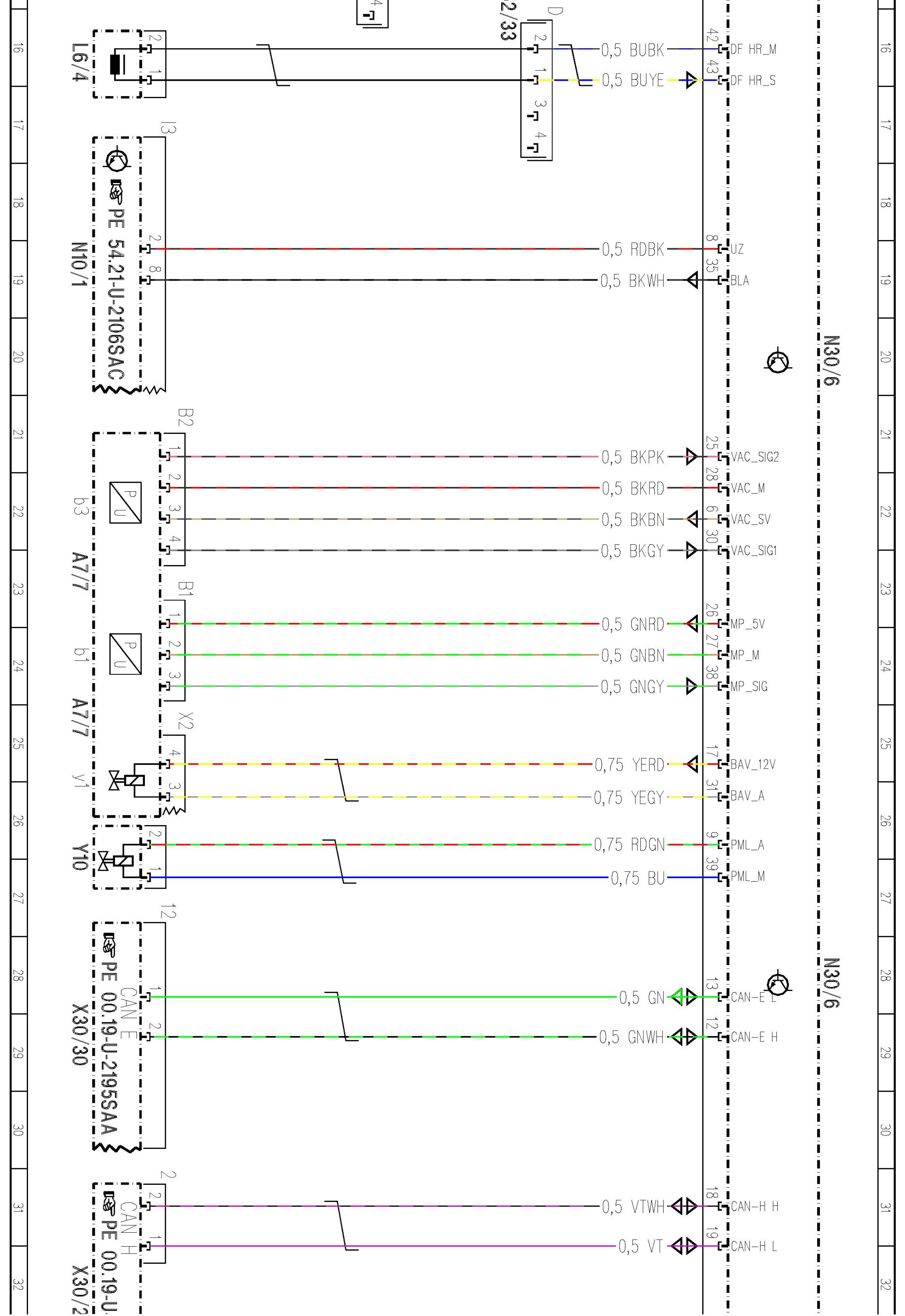

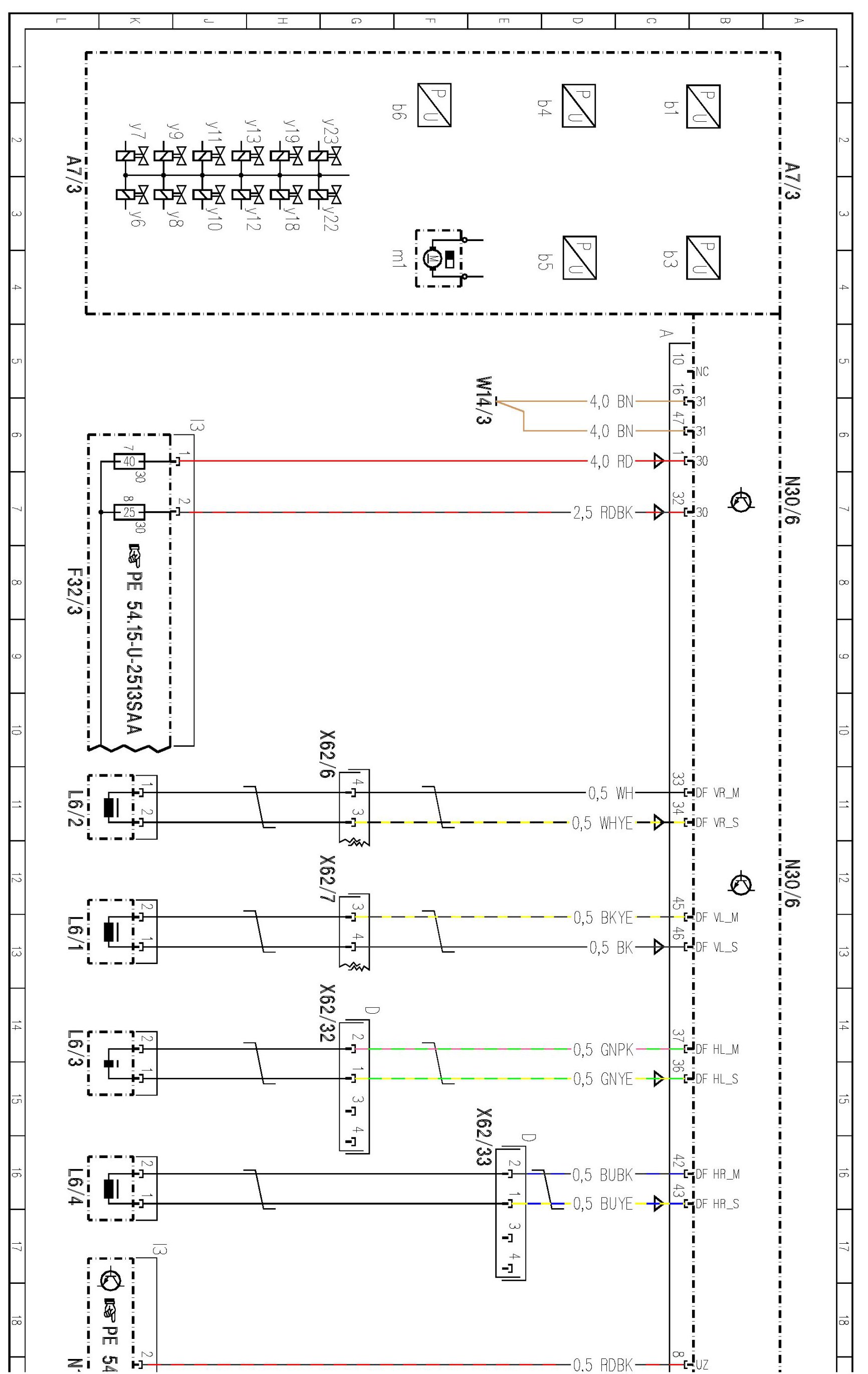

PE42.22-U-2101SAA Regenerative Braking System Control Unit

MODEL 221.095 /195 with ENGINE 272.974
- Control unit N30/6, Hybrid











































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
