GF82.20-P-0002-01LE Interior Illumination (IBL), Location of Components



GF82.20-P-0002-01LE Interior Illumination (IBL), Location Of Components

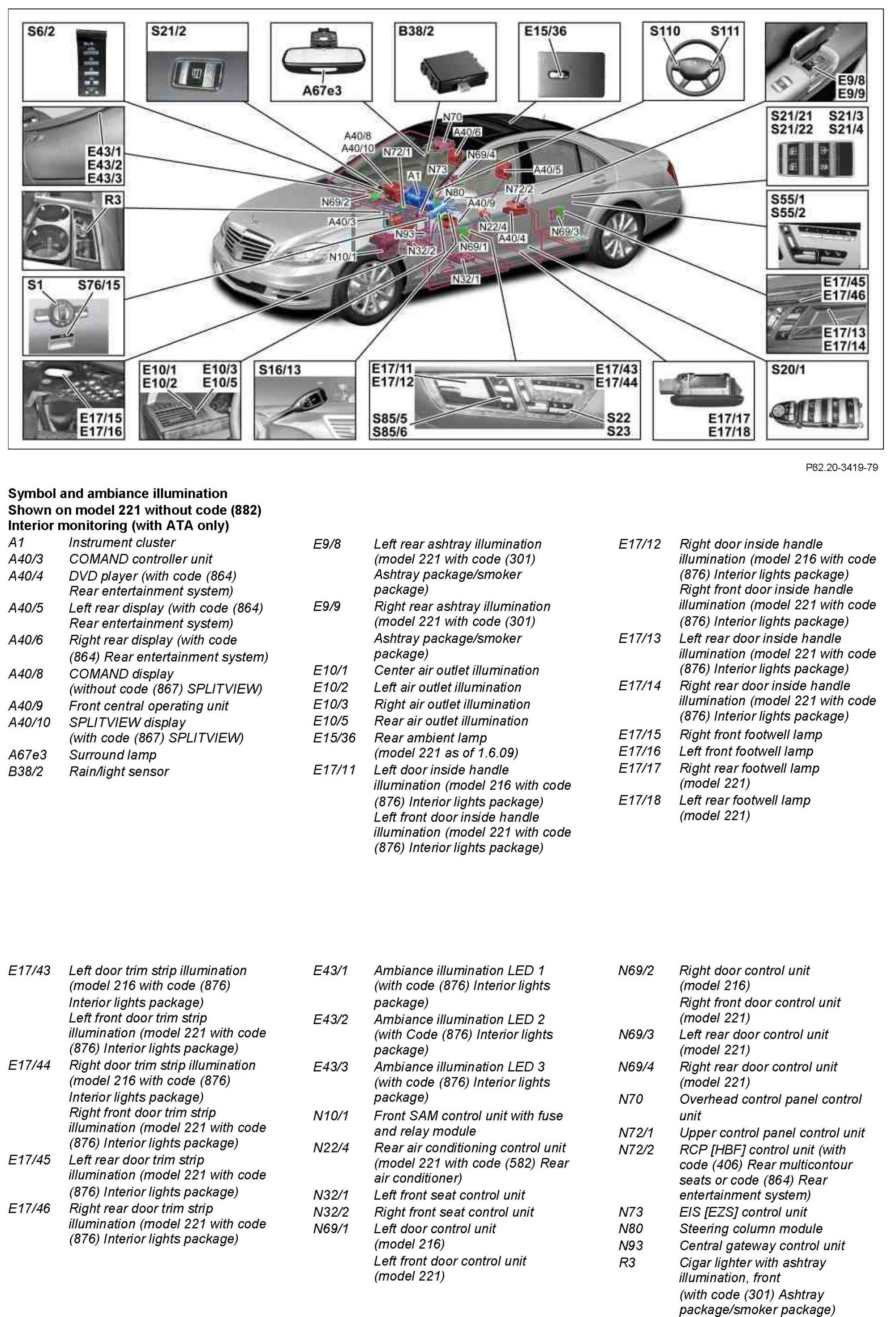

Component Identification:

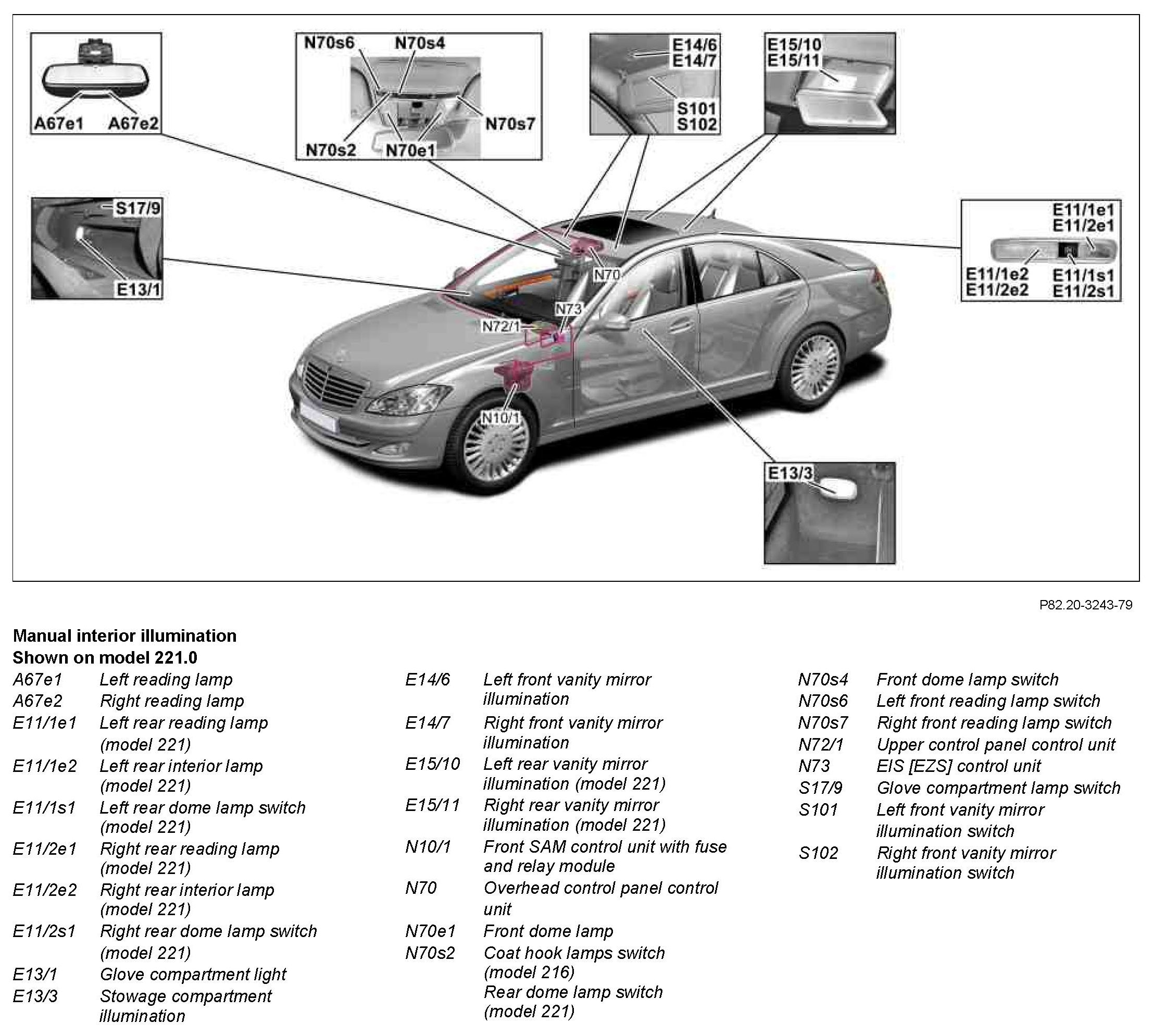

Component Identification:

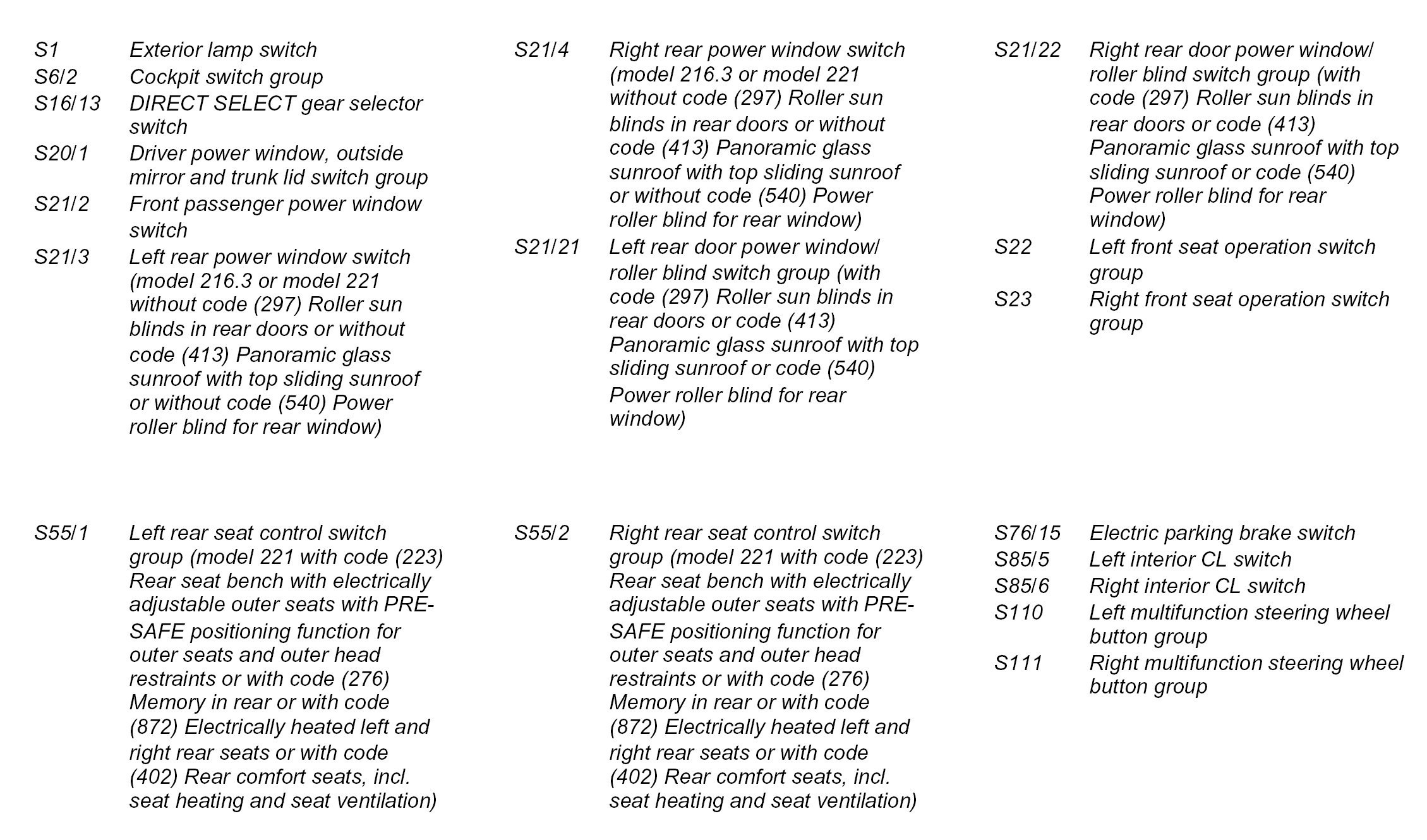

Component Identification:

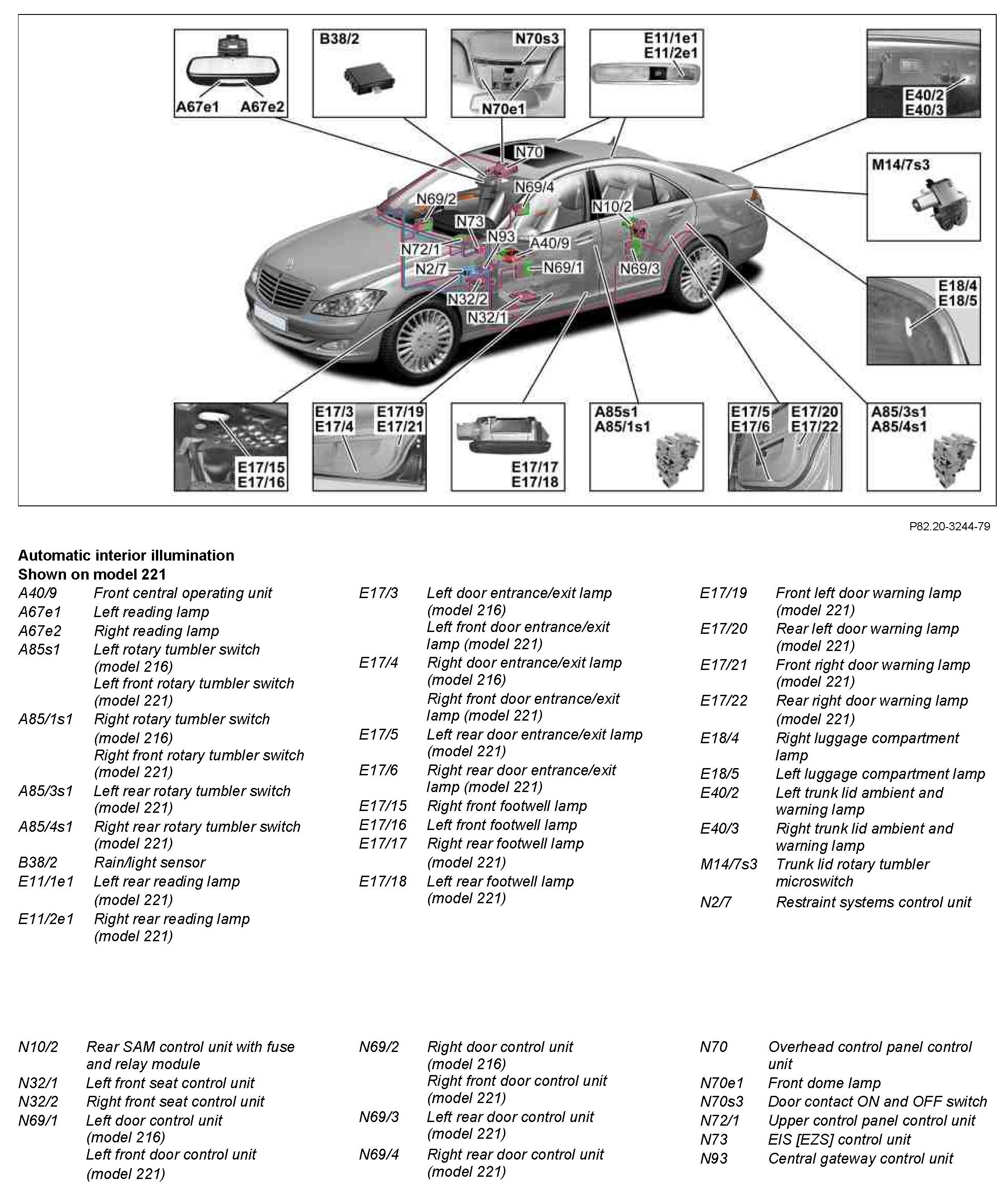

Component Identification:
