Access Cover: Service and Repair



AR01.10-P-2405IM Remove/install engine cover

Component Identification:

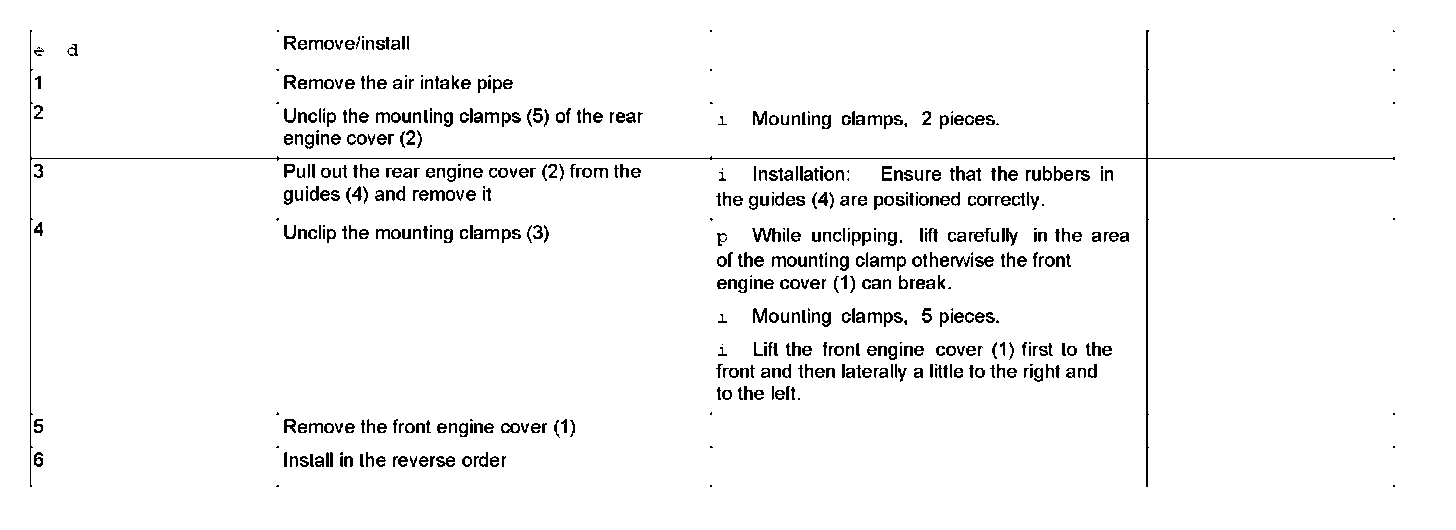

Steps 1 - 6:
