GF80.50-P-0001-04RI Anti-Theft Alarm (ATA), Alarm Characteristics

GF80.50-P-0001-04RI Anti-Theft Alarm (ATA) Alarm Characteristics

Alarm national versions


Alarm national version with code (494) USA version and with code (460) Canada version

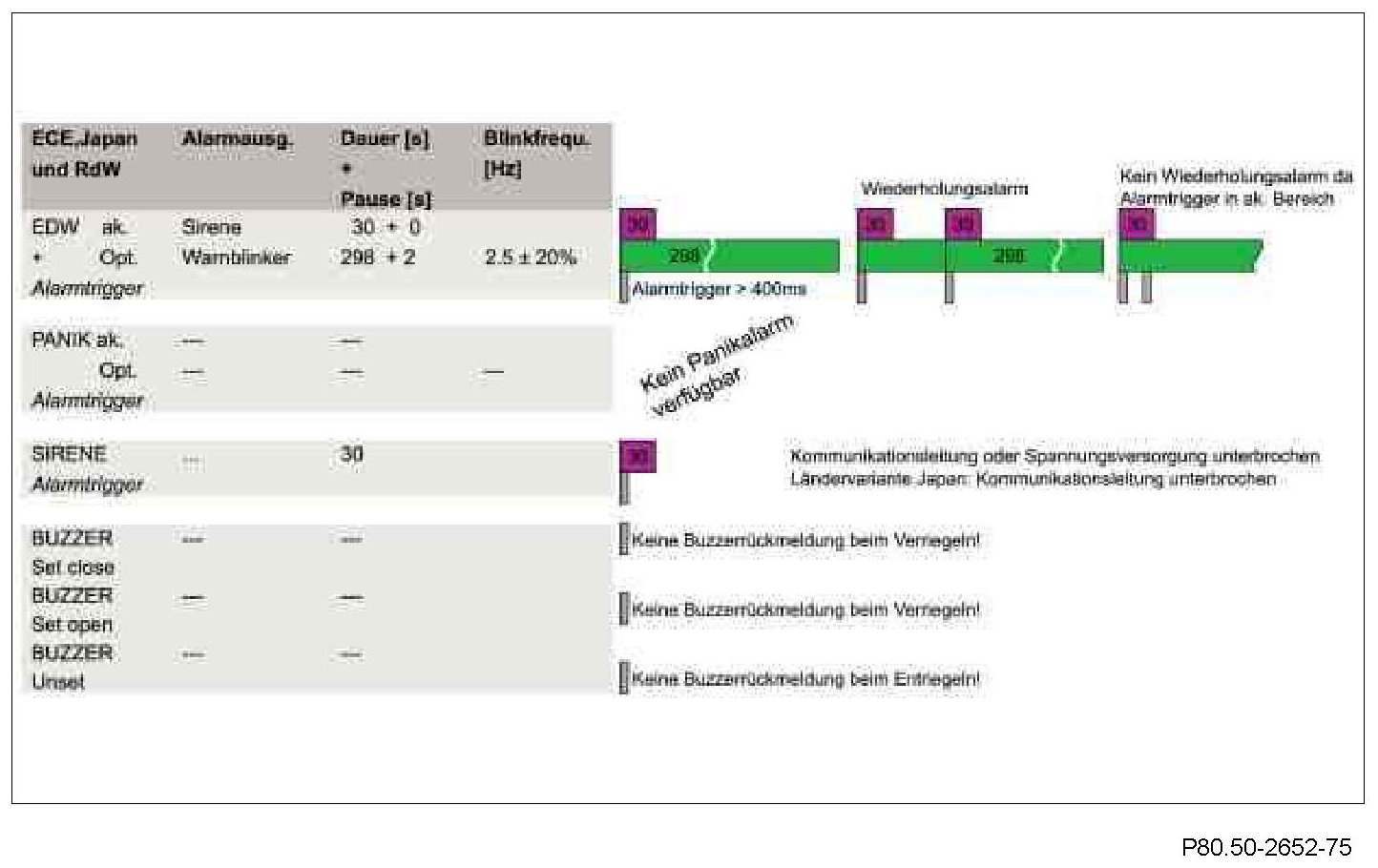

Alarm national version except code (494) USA version

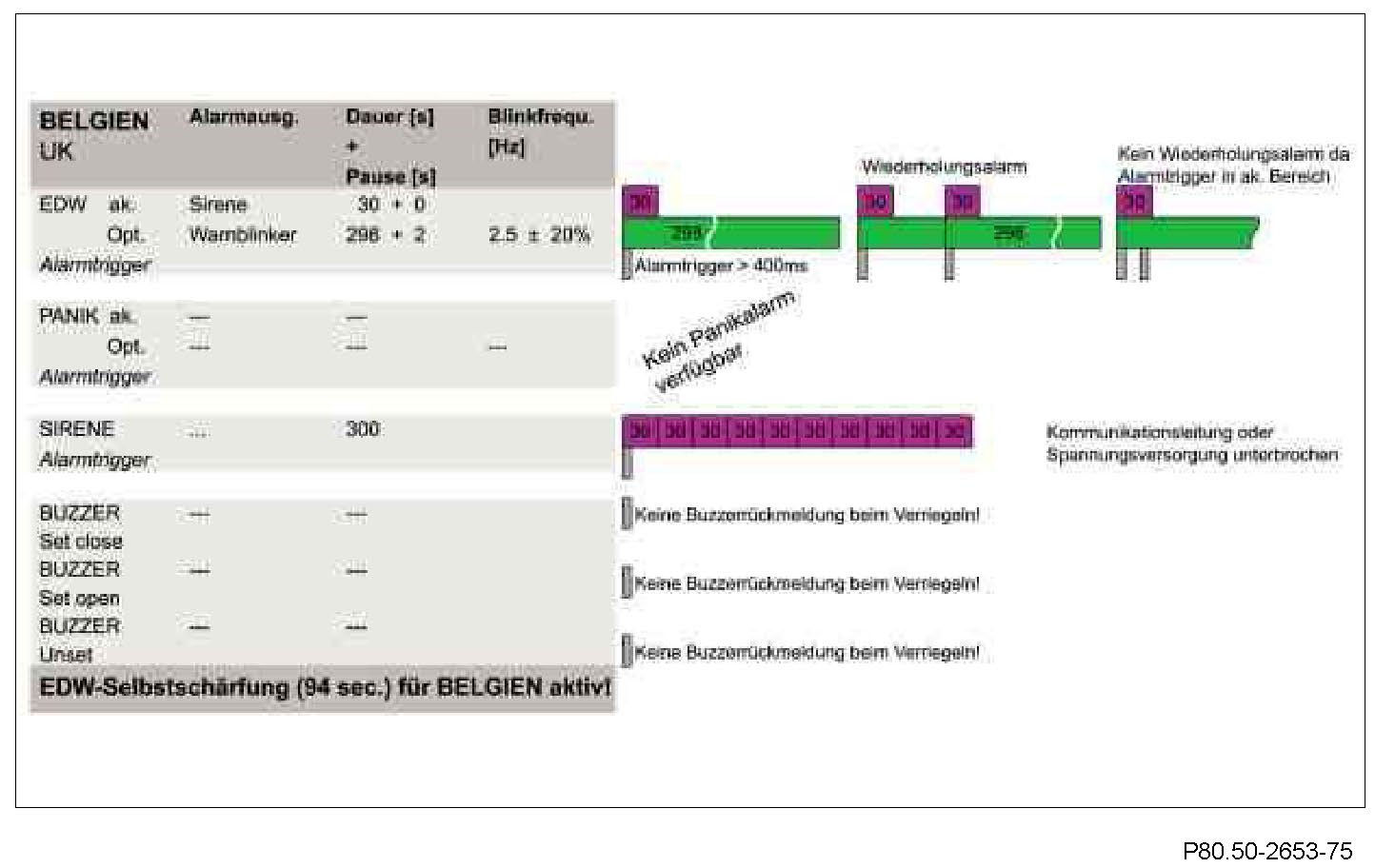

Alarm national version on vehicles for Belgium

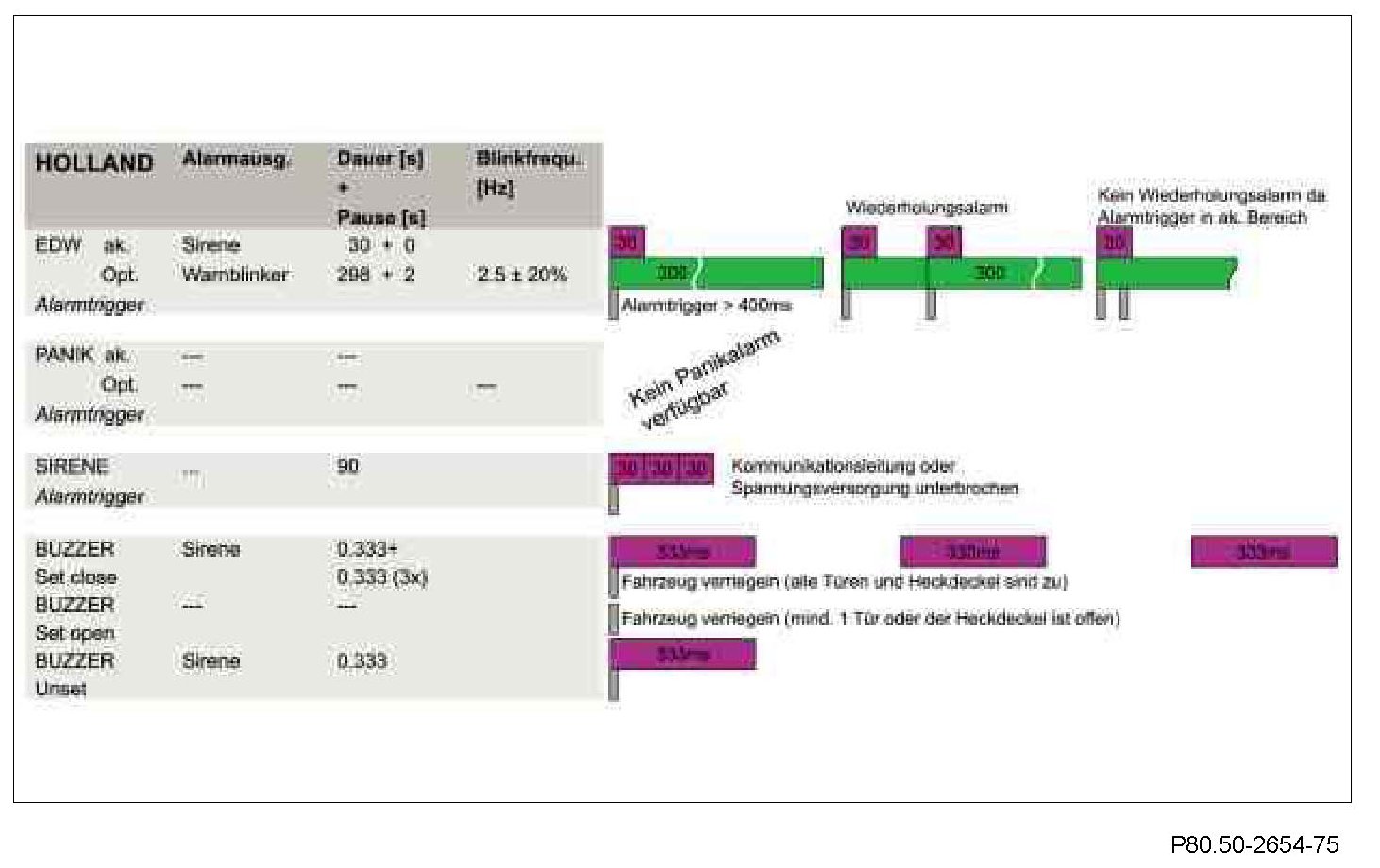

Alarm national version on vehicles for the Netherlands







Alarm characteristics for panic alarm

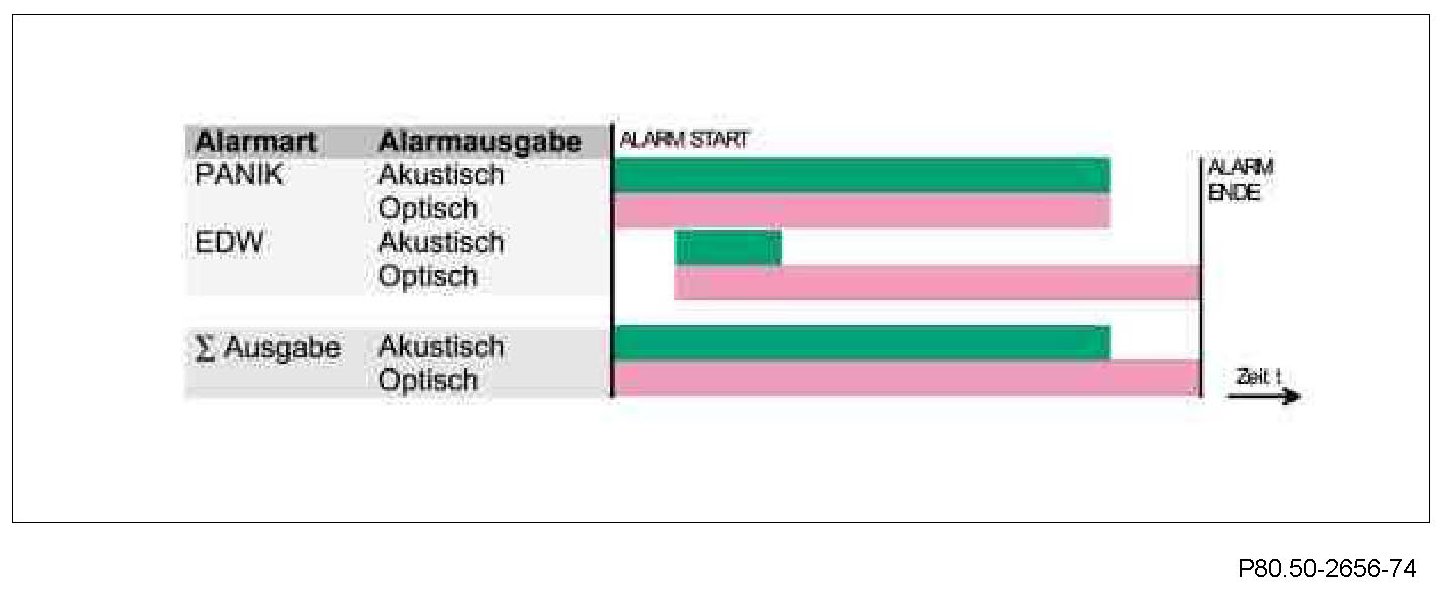

Function sequence for panic alarm during ATA alarm
The panic alarm is started and terminated during the ATA alarm.







The panic alarm is started during an ATA alarm, however, terminated after the ATA alarm.







Function sequence for panic alarm during ATA alarm
The ATA alarm is started and terminated during a panic alarm.







The ATA alarm is started during a panic alarm and is terminated after the panic alarm.
