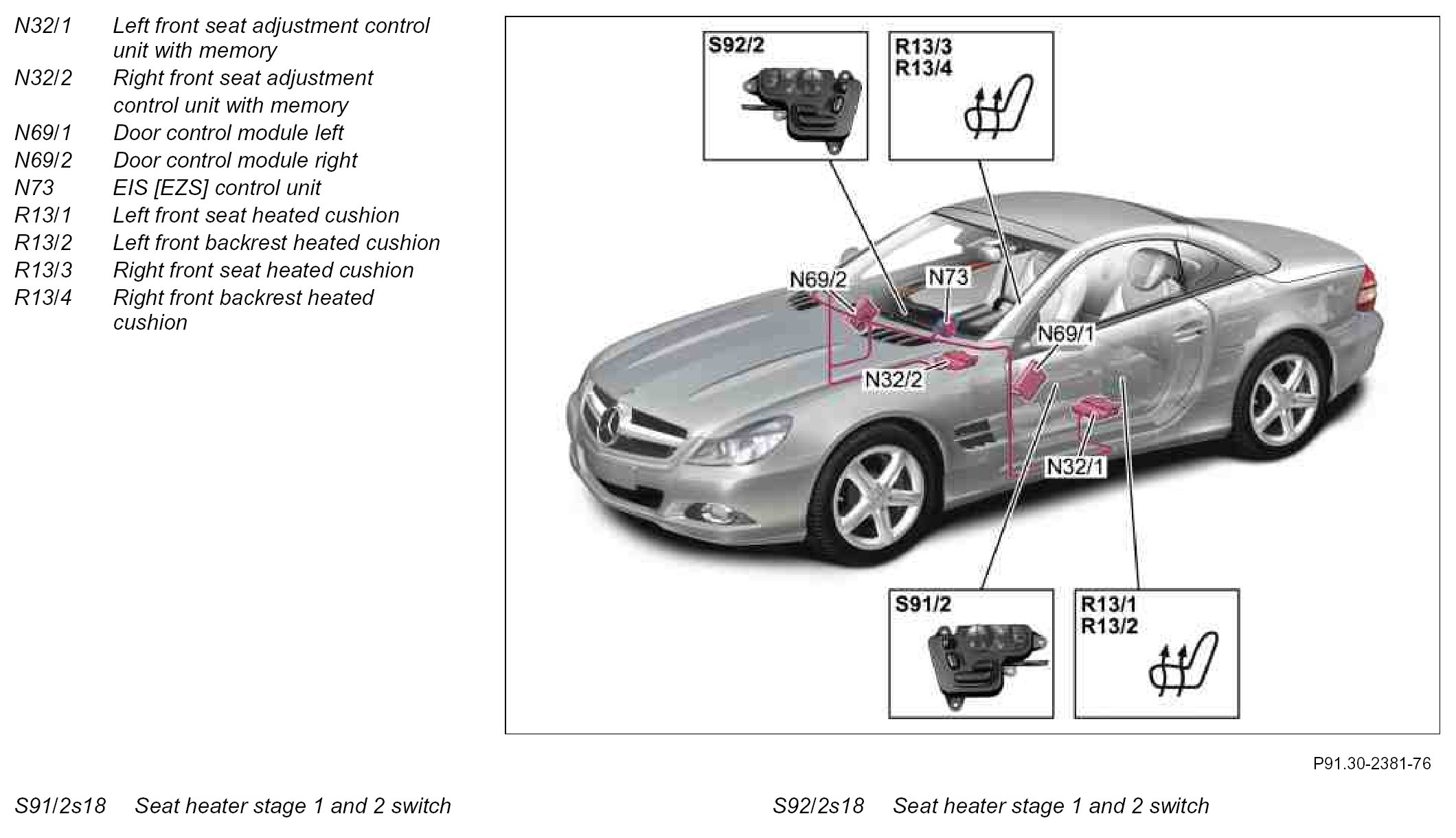

GF91.30-P-0003-02RI Seat Heater (SIH) Location of Components
GF91.30-P-0003-02RI Seat Heater (SIH) Location of Components
GF91.30-P-0003-02RI Seat Heater (SIH) Location Of Components
- with CODE (873) Heated left and right front seats
Component Identification:
