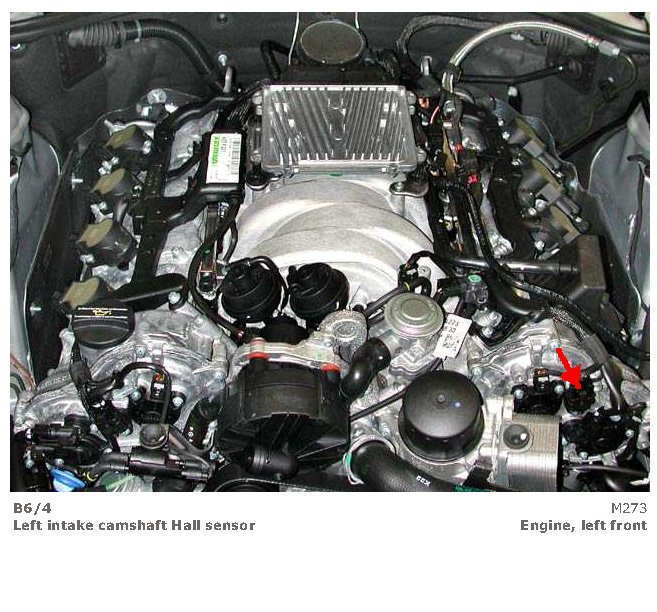

Intake Camshaft Hall Sensor, Left
Intake Camshaft Hall Sensor, Left
mb12230star_ed-0319
Intake Camshaft Hall Sensor, Left
