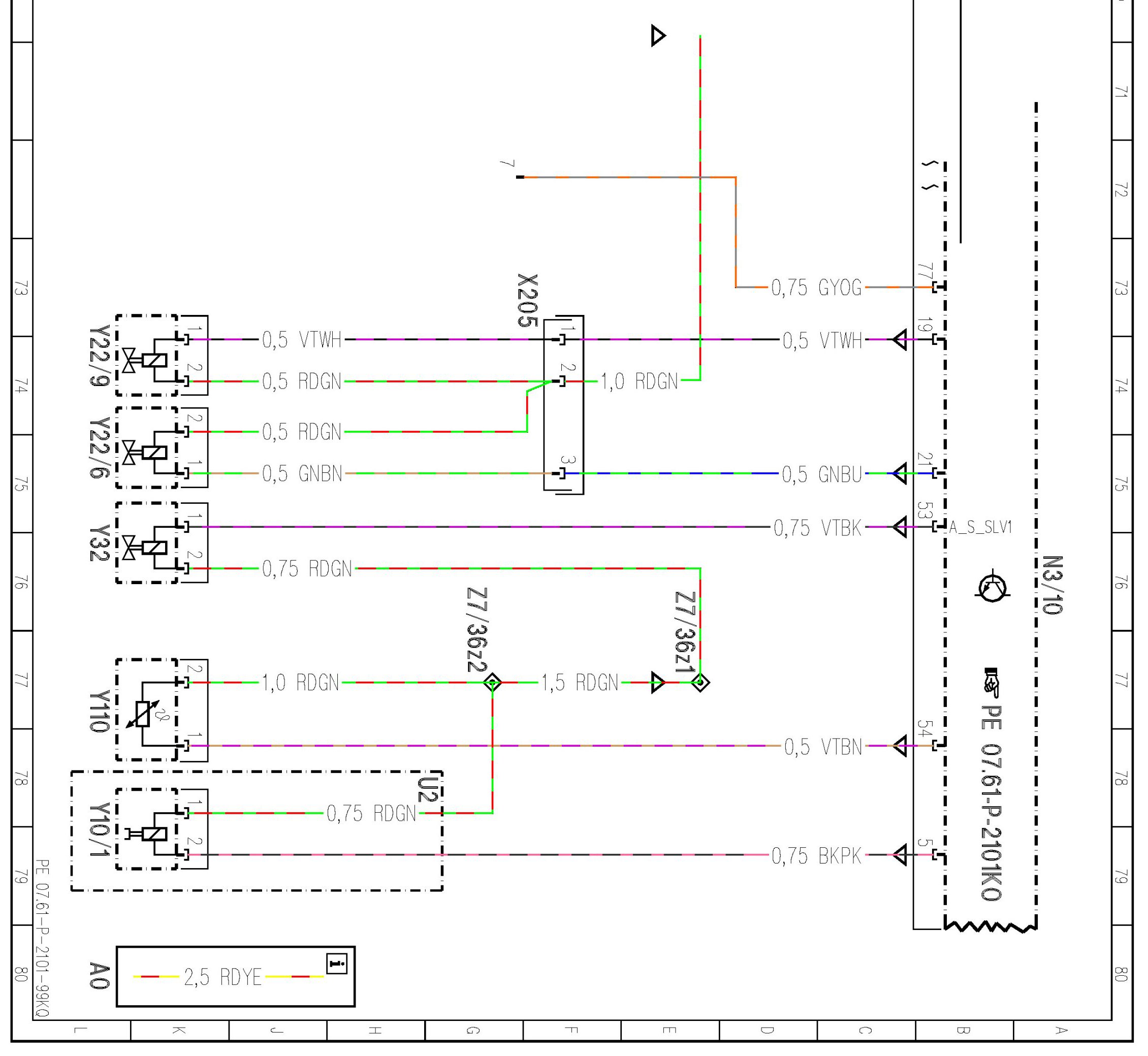

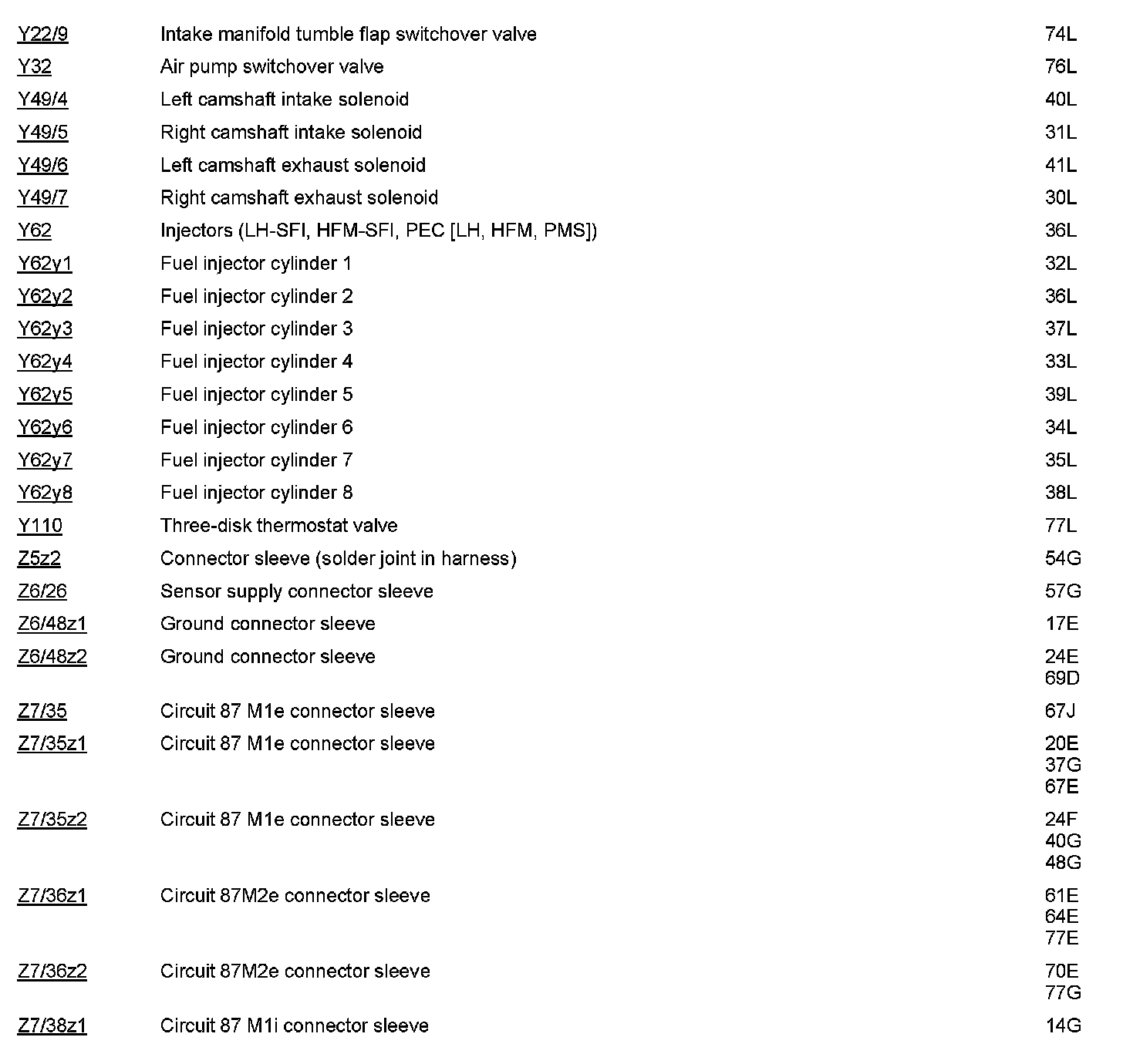

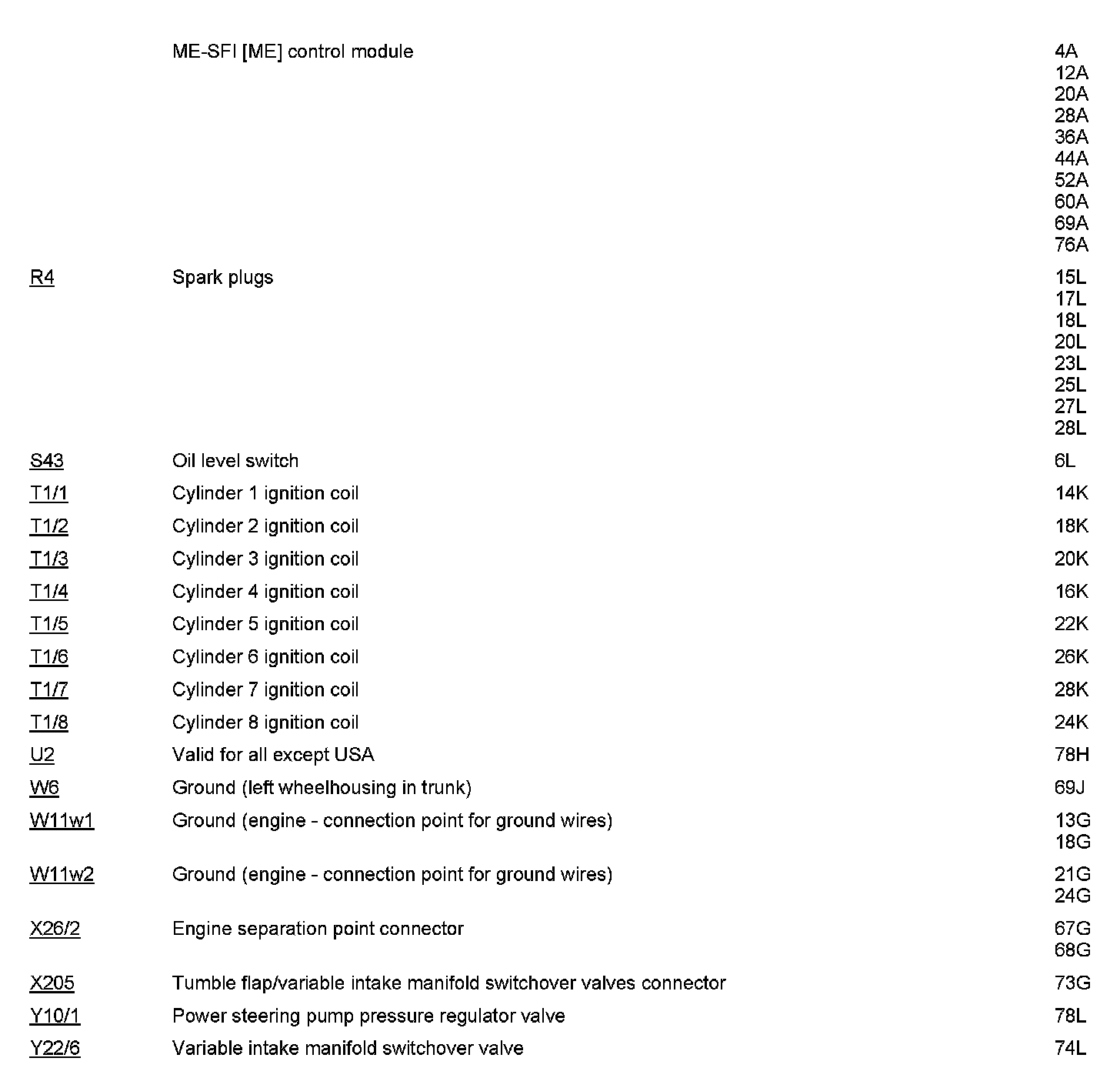

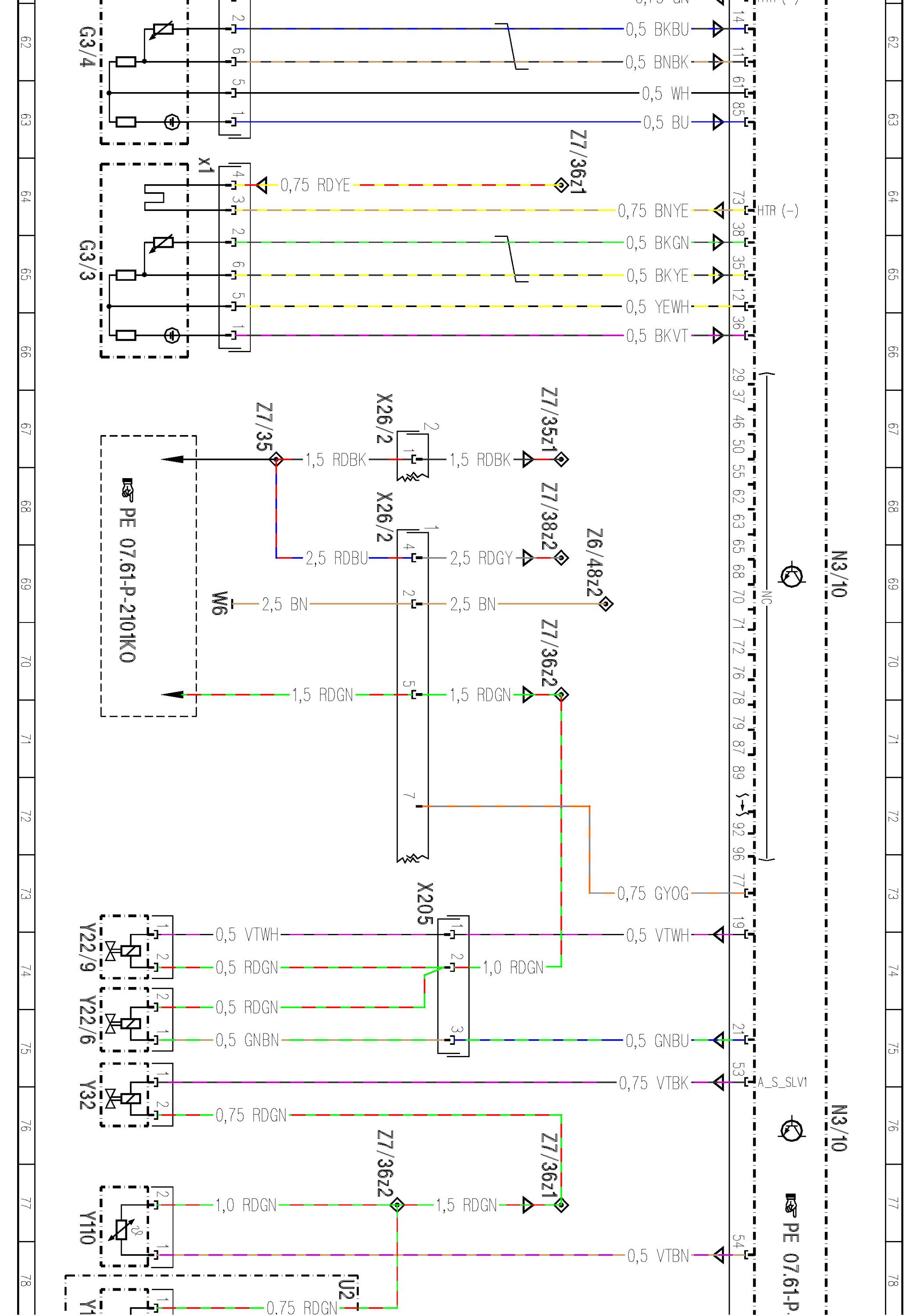

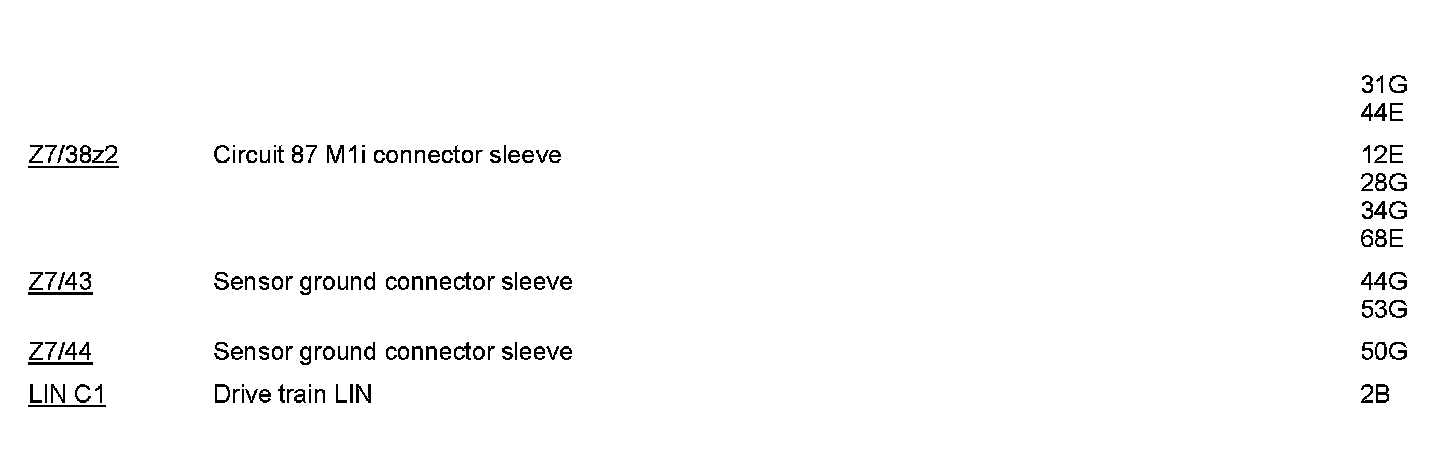

PE07.61-P-2101KQ ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

PE07.61-P-2101KQ ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

Engine 273 in Model 230
- as of model year 2009 /YoM 08 model refinement package
- Control unit N3/10, Sheet 2


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
